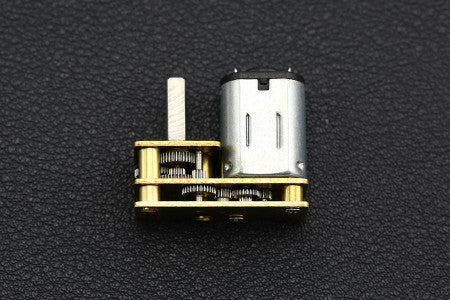

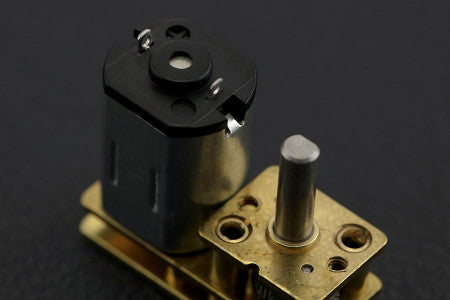

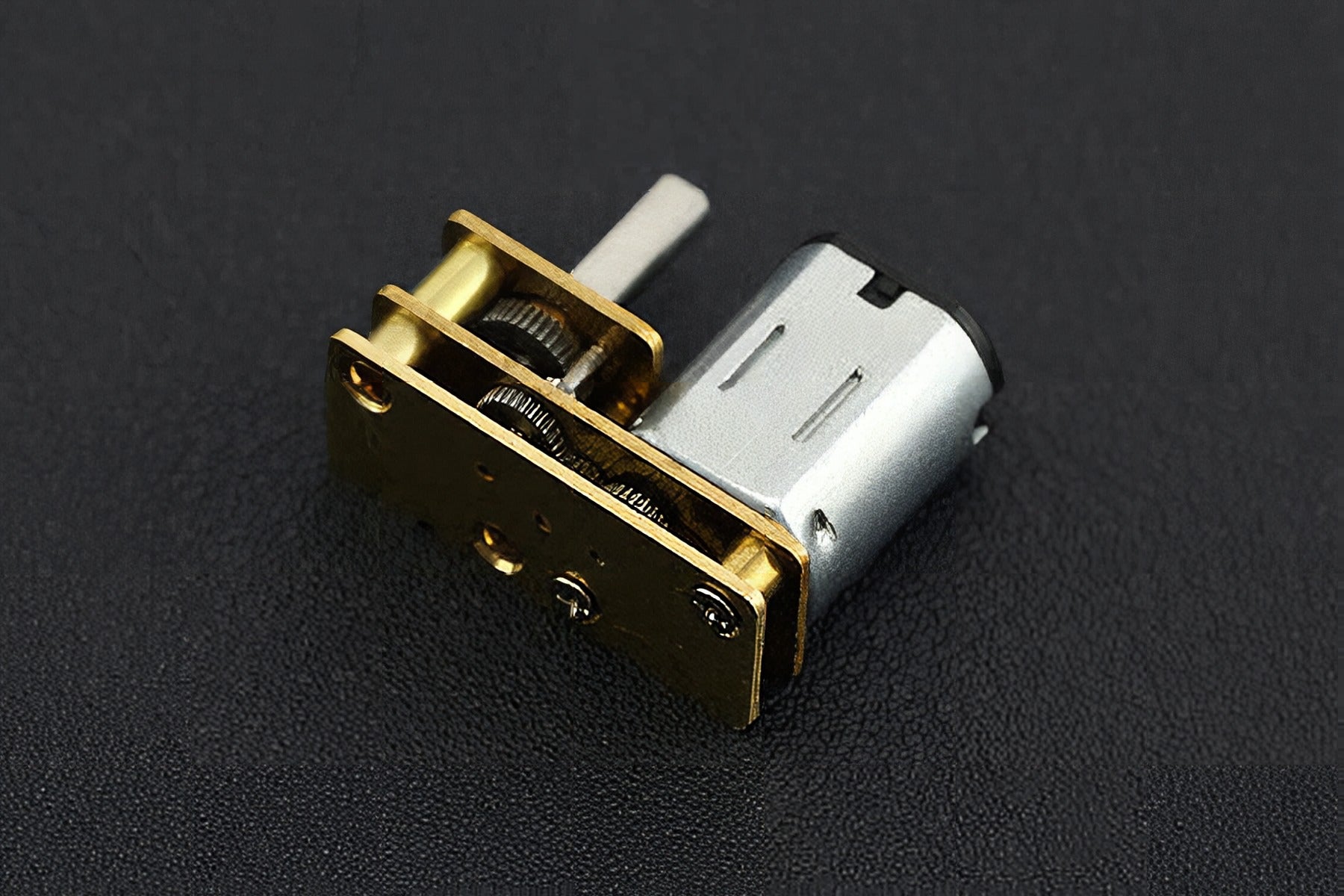

Micro DC Geared Motor with Exclusive Upside Down Structure 6V 150RPM 2.4Kg.cm

This DC gearmotor has an exclusive upside down structure, 6V rated voltage, the no-load speed could arrive 150RPM. It is durable and easy to be drived by our Romeo BLE microcontroller.

SPECIFICATION

• Reduction Ratio: 100:1

• Rated voltage: 6.0 V

• No-load speed: 150 RPM

• No-load Current: 30 mA

• Rated load speed: 120 RPM

• Rated Torque: 0.35 kg.cm

• Rated Current: 5 mA

• Stall Torque: 2.4 kg.cm

• Stall Current: 250 mA

• Weight: 12 g


SHIPPING LIST

• Micro DC Geared Motor with Exclusive Upside Down Structure (6V 150RPM 2.4Kg.cm) x1
