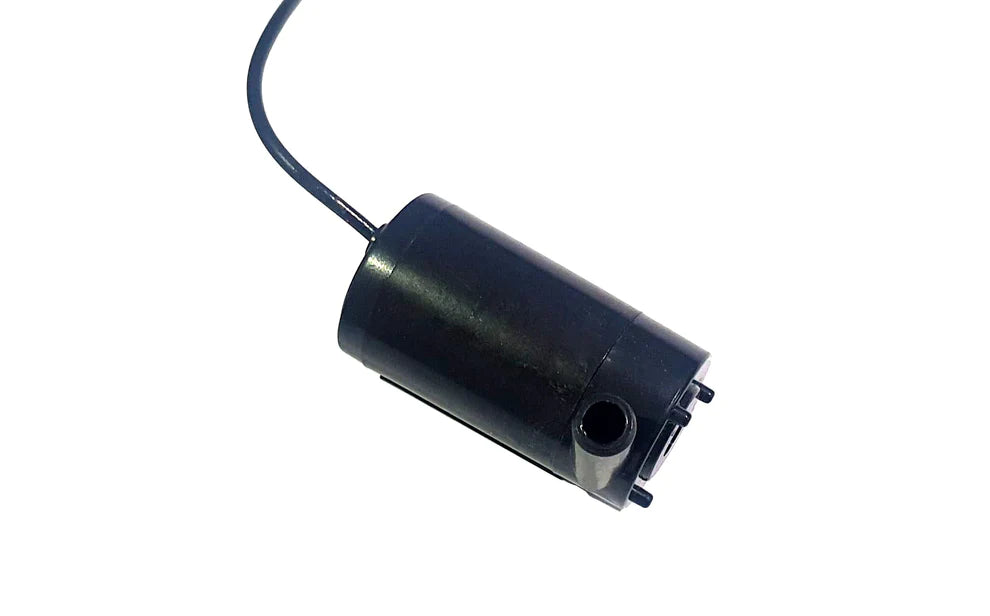

Small submersible DC water pump, runs on 2.5-6V. Magnetic drive, low current draw, moves up to about 120 L/H. For fountains, aquariums, hydroponics, and DIY watering.

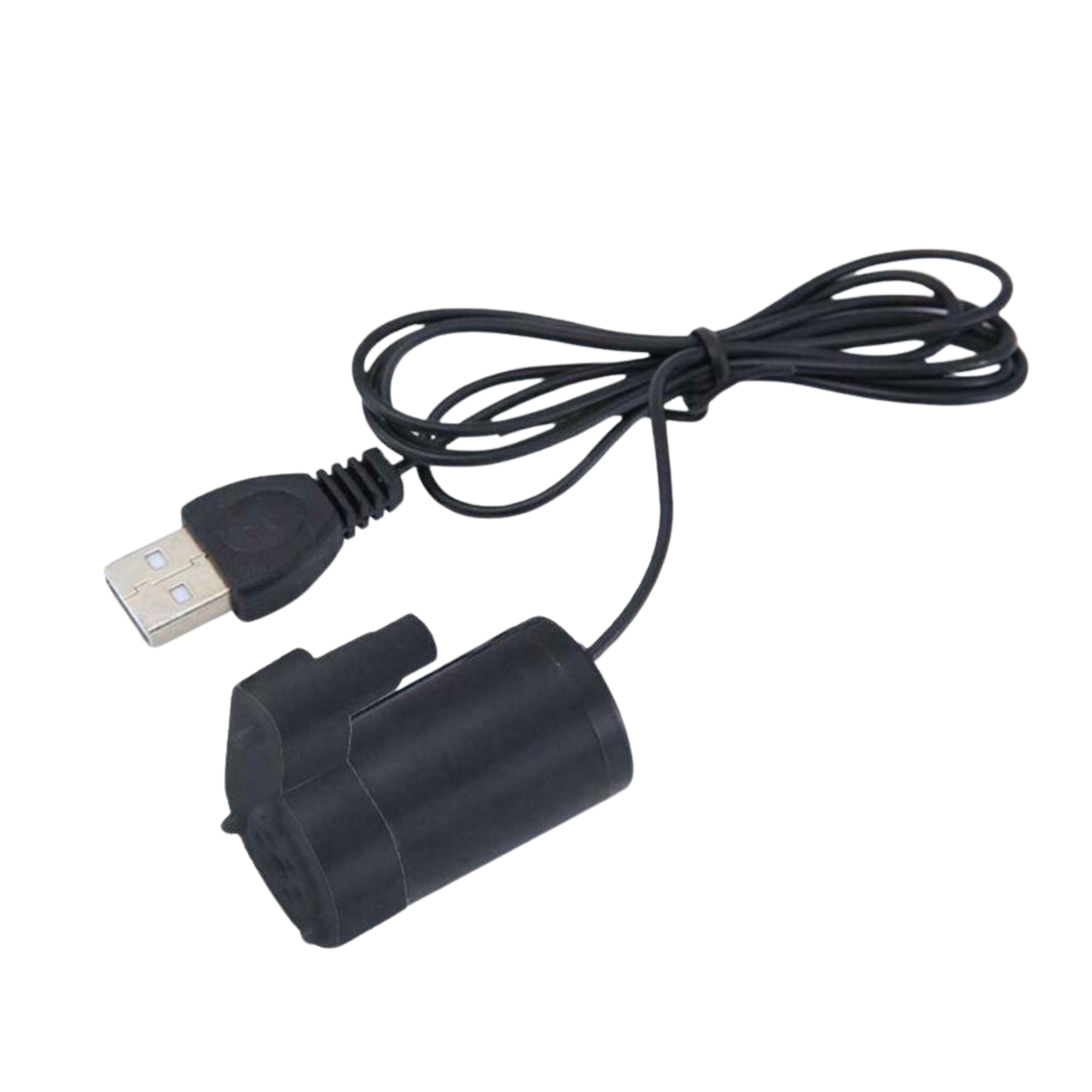

Drop it in water, connect a tube to the outlet, power it. Available in vertical, horizontal, and amphibious styles, with plain-lead or USB versions.
Specs
| Voltage | 2.5-6V DC |
| Current | 130-220mA |
| Flow rate | 80-120 L/H |
| Max lift | 40-110mm |
| Drive | Magnetic, brushless |
| Outlet | 7.5mm OD / 5mm ID |
| Working life | 500 hours continuous |
Keep it fully submerged. Running dry overheats and damages the motor.
FAQ
Will this ship from Manila?
Yes — all stock ships from our Quezon City warehouse. Order before 4 PM weekdays for same-day cutoff via J&T or LBC.
Do you ship nationwide?
Yes. Metro Manila usually arrives next-day; provincial 1–3 working days.
Can I get this on a school PO or class order?
Yes — we accept Purchase Orders from accredited schools and universities. Contact us with your PO details and we'll process it.
Is this compatible with Arduino, ESP32, or Raspberry Pi?
Most parts work with common maker boards — check the description for specific pinout / voltage notes. If you're unsure, send us a message before ordering.
What's your return policy?
7-day inspection window for DOA units. Email proof of issue and we'll ship a replacement or refund. Used / installed parts are not returnable unless faulty.
Do you offer technical support?
Yes — questions land on our forum or via email, weekday or weekend. We've actually wired up most of what we sell.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
