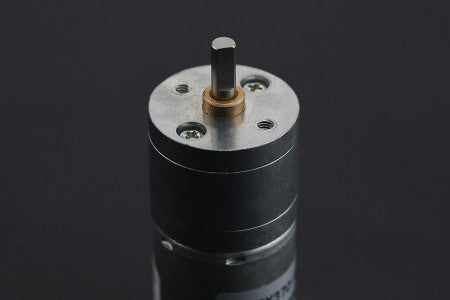

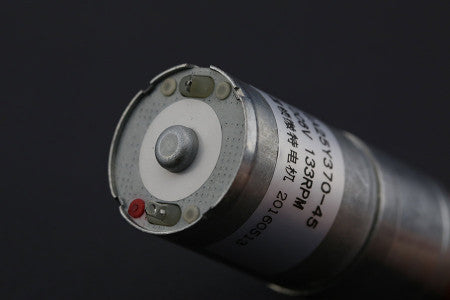

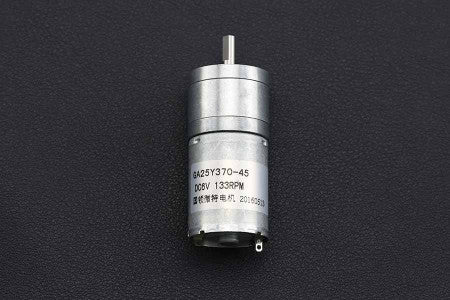

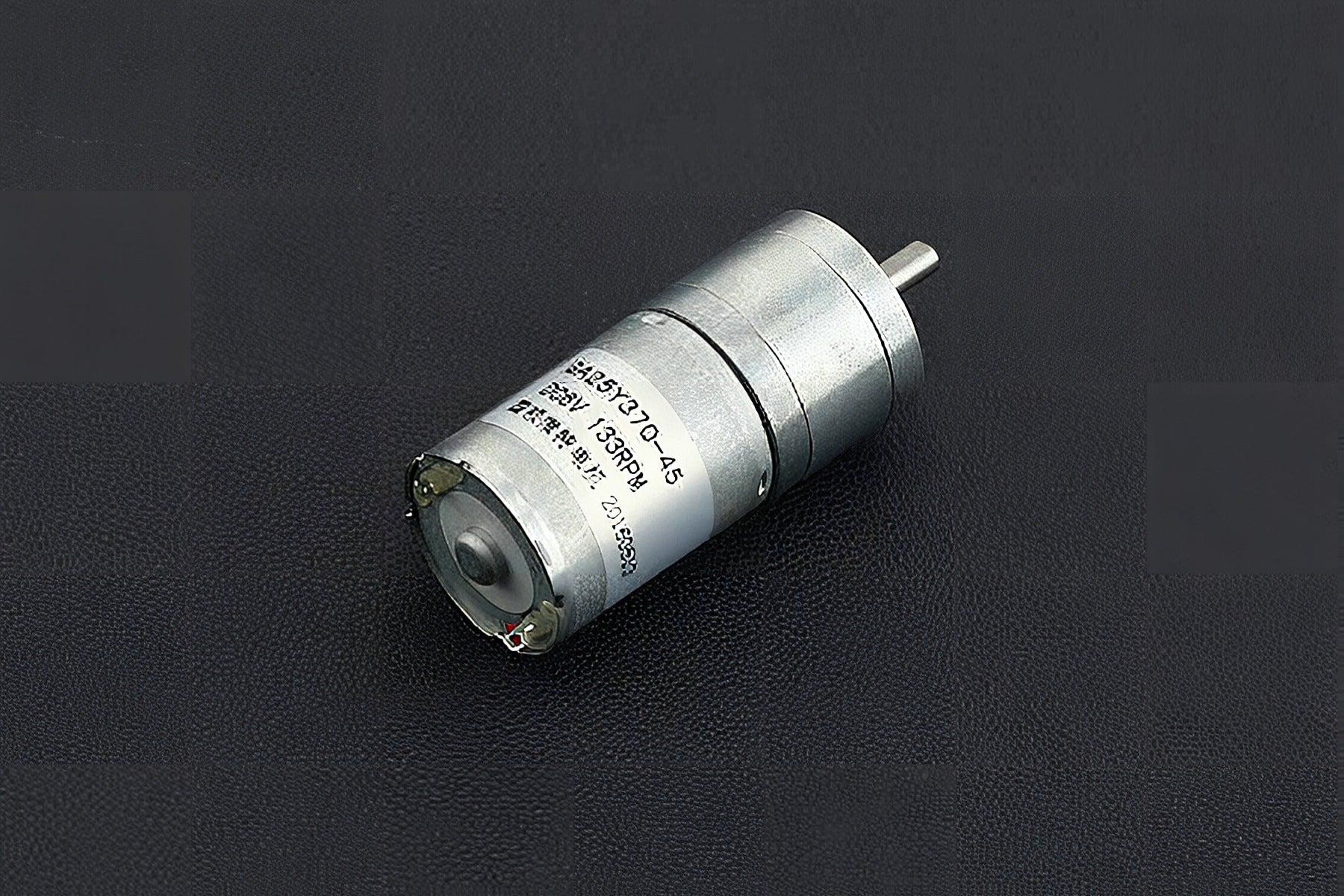

Metal DC Geared Motor 6V 133RPM 4.5kg.cm

This is a metal DC geared motor, 45:1 metal reducer. It has a small size and large torque. The maximum torque could arrive 4.5 kg.cm. It is stable and durable!

SPECIFICATION

• Rated Voltage: 6 V

• Operating Voltage Range 2~7.5V

• Gear reduction ratio: 45:1

• D output shaft diameter: 4 mm

• No-load speed: 133 RPM @ 6 v

• No-load current: 0.13 A

• Locked-rotor torque: 4.5 kg.cm

• Locked-rotor current: 2.3 A

• Operating Temperature: -20～60℃

• Weight: 90 g

DOCUMENTS

• Dimension


SHIPPING LIST

• Metal DC Geared Motor - 6V 133RPM 4.5kg.cm x1
