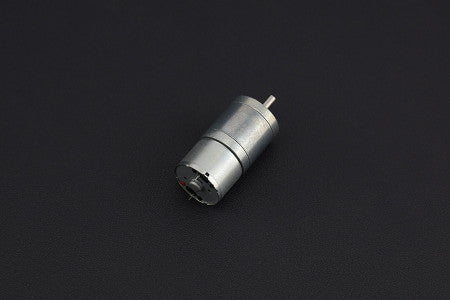

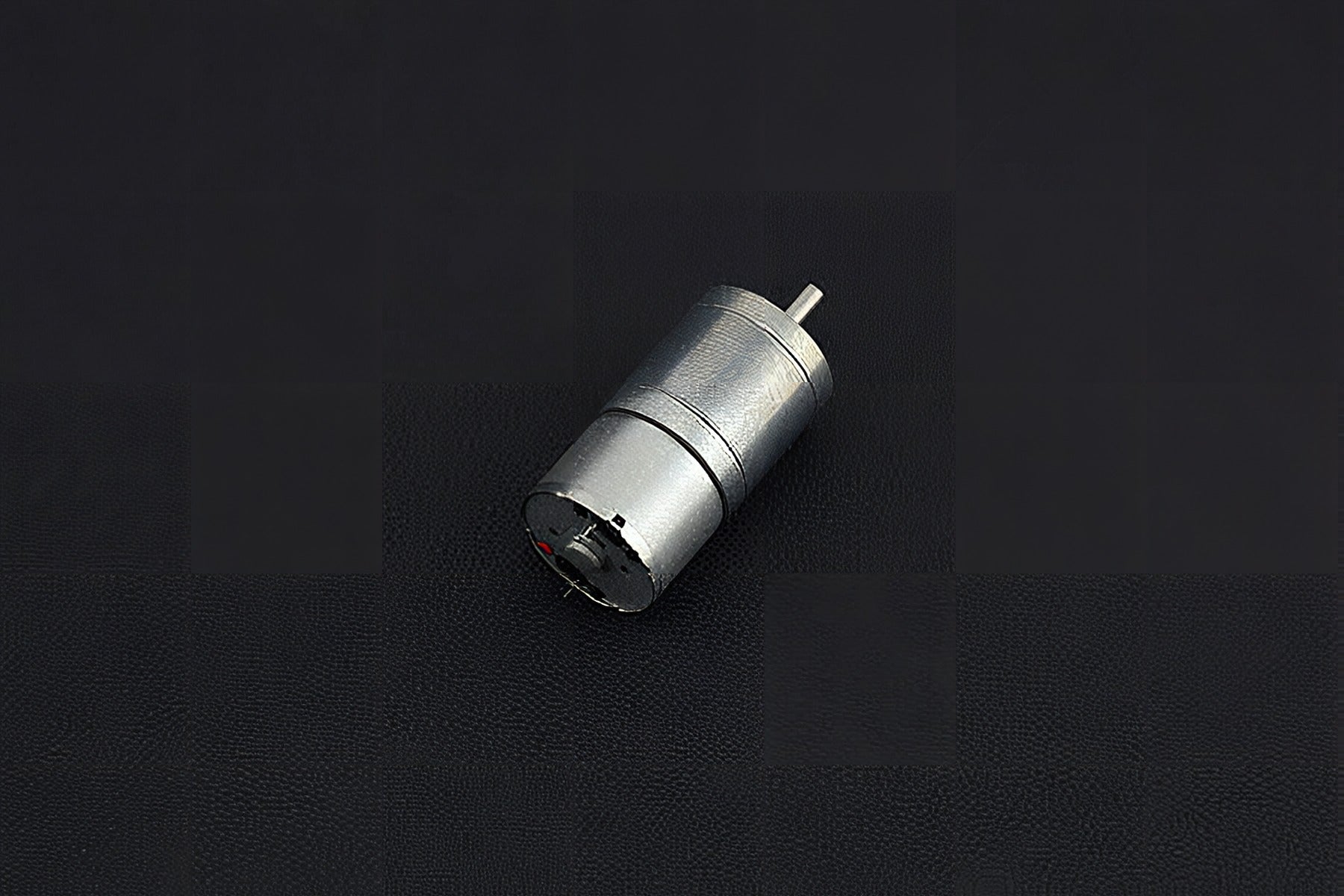

Metal DC Geared Motor 6V 97RPM 1.9Kg.cm

This Metal DC Geared Motor is a powerful and durable option for your project, offering a 75:1 gear reduction ratio that delivers a high torque of 1.9 Kg.cm. Designed for reliability, this motor is perfect for applications requiring precision and strength, such as robotics, small automation systems, or DIY creations. Its compact size and metal construction ensure stability and long-term use, even in demanding environments.

Operating at 6V, the motor provides a no-load speed of 97 RPM, making it suitable for a variety of speed and torque requirements. The D-shaped shaft has a diameter of 4mm, ensuring compatibility with a wide range of attachments like gears or wheels. With an efficient no-load current of just 50mA, this motor is energy-efficient, while still delivering strong performance under heavy loads with a locked-rotor current of 0.6A.

This motor's versatility is further enhanced by its operating voltage range of 2V to 7.5V and a sturdy 23mm gearbox, allowing it to fit into compact designs. Weighing just 74g, it is lightweight yet strong, making it an excellent choice for any small-to-medium project where high torque and stability are essential.

Specifications:

• Rated Voltage: 6 V

• Operating Voltage Range: 2~7.5V

• Gear reduction ratio: 75:1

• Gearbox length: 23 mm

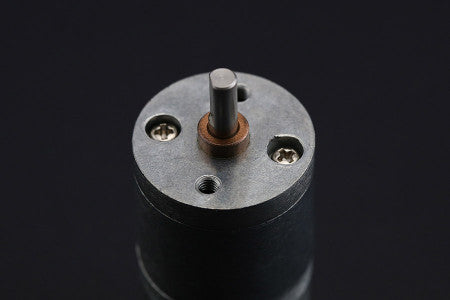

• "D" shape shaft diameter: 4 mm

• No-load speed: 97 RPM @ 6V

• No-load current: 50 mA

• Locked-rotor torque: 1.9 Kg.cm

• Locked-rotor current: 0.6 A

• Operating Temperature: -20～60℃

• Weight: 74 g


Technical Details

• Datasheet
