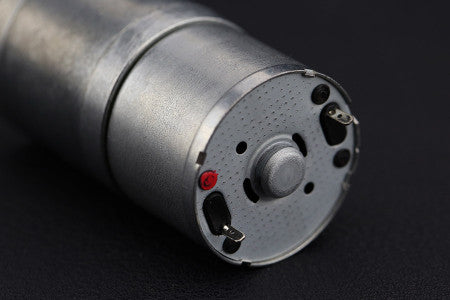

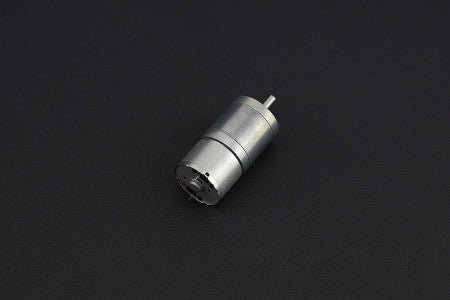

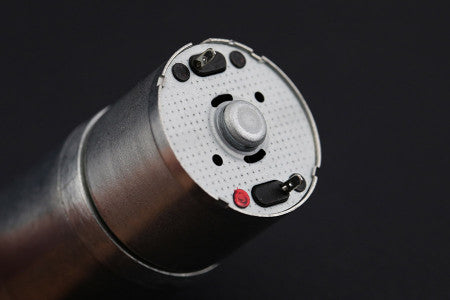

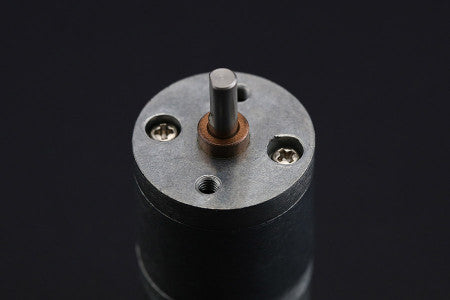

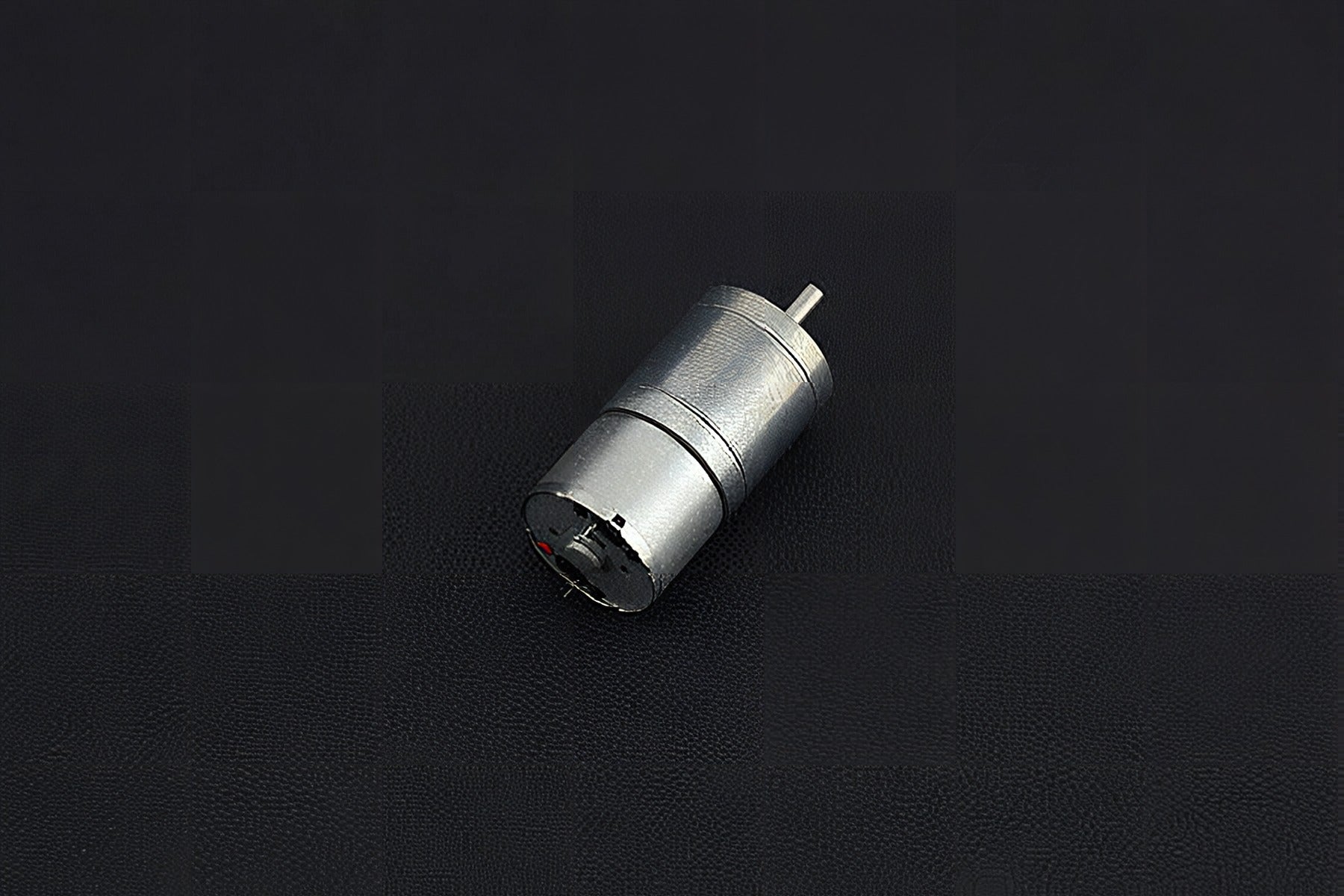

Metal DC Geared Motor 6V 214RPM 1Kg.cm

This is a metal DC geared motor, 34:1 metal reducer. It has a small size and large torque. The maximum torque could arrive 1 kg.cm. It is stable and durable!

SPECIFICATION

• Rated Voltage: 6 V

• Operating Voltage Range 2~7.5V

• Gear reduction ratio: 34:1

• Gearbox length: 21 mm

• "D" shape shaft diameter: 4 mm

• No-load speed: 214 RPM @ 6V

• No-load current: 50 mA

• Locked-rotor torque: 1 Kg.cm

• Locked-rotor current: 0.6 A

• Operating Temperature: -20～60℃

• Weight:68g

SHIPPING LIST

• Metal DC Geared Motor - 6V 214RPM 1Kg.cm x1
