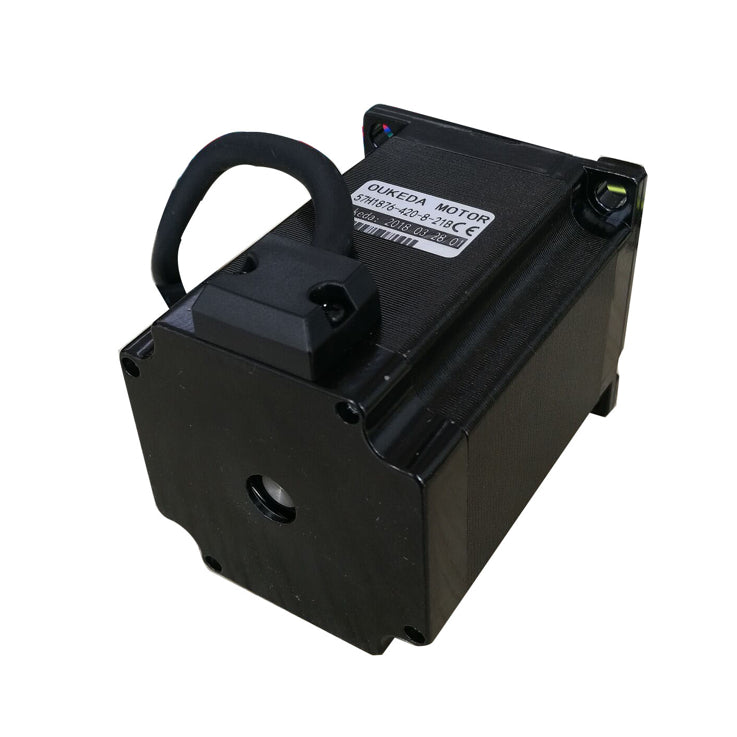

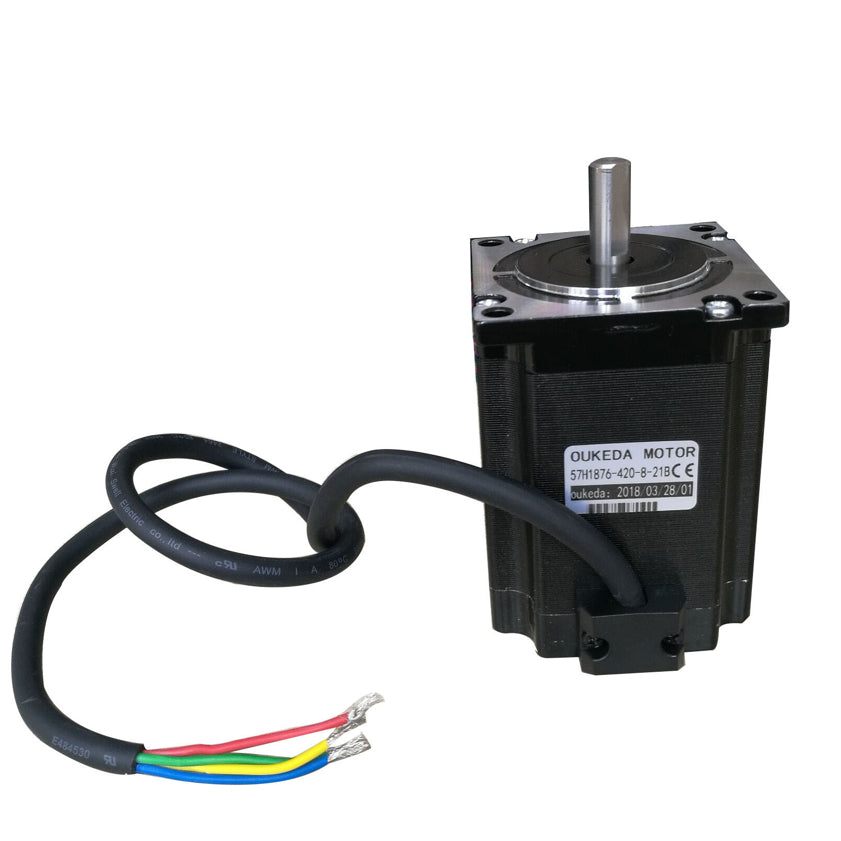

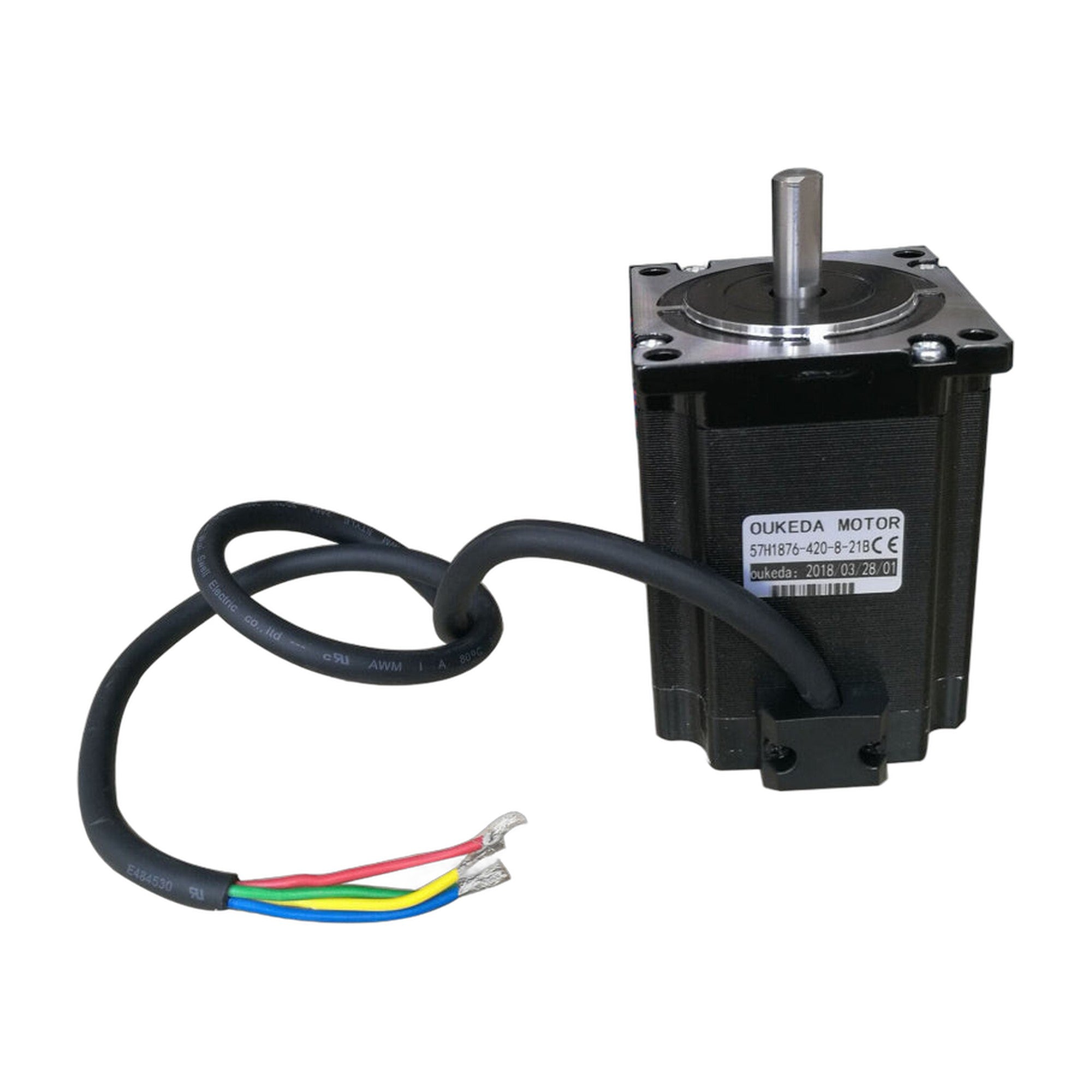

57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.2A 1.8Nm

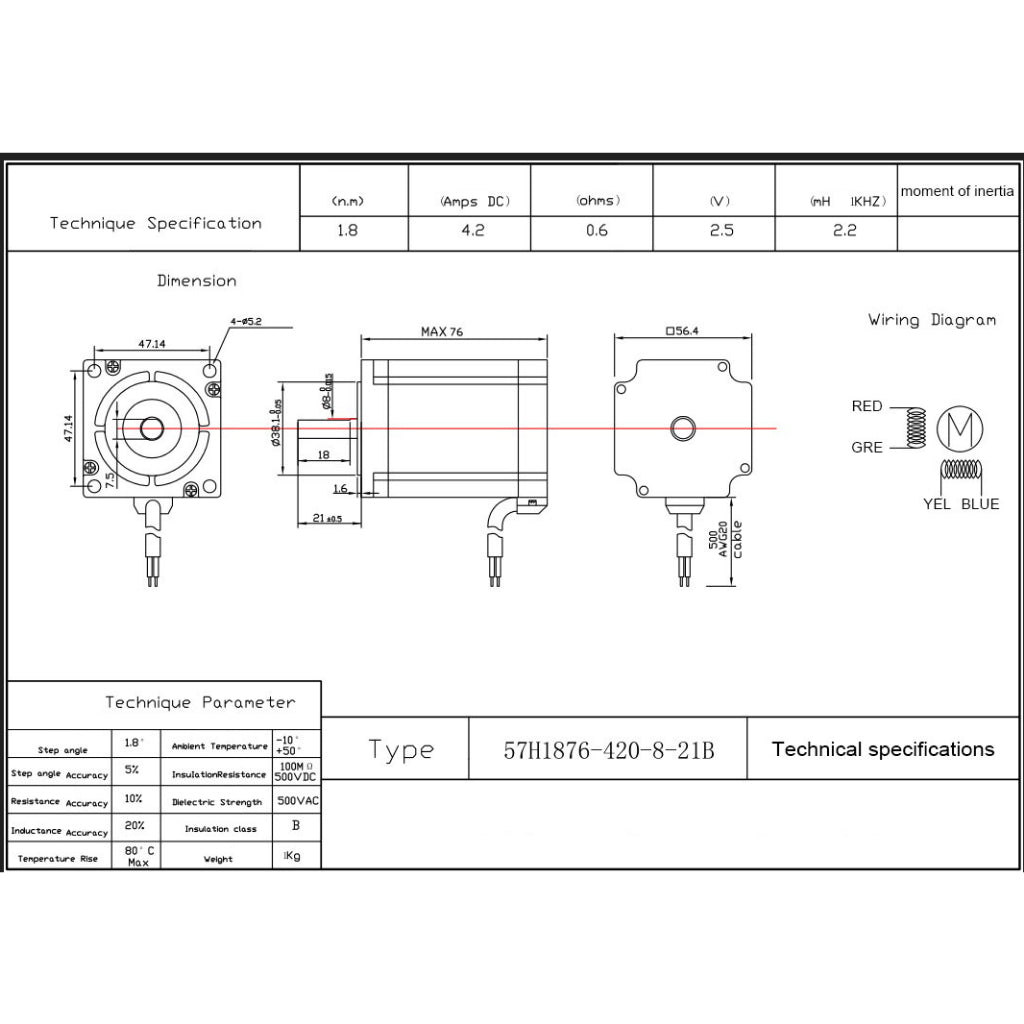

DESCRIPTION
No. of Phase: 2 Phase 4-wires.

Rated Phase Current: 2.8A.
Phase Resistance: 1.0?.
Phase Inductance: 5.0mH.
Step Angle: 1.8o.
Shaft Diameter: ?8.00mm D-Shape.
Rated Voltage: 12V – 24V DC.
Holding Torque: 176Ncm.
Connector: XH 4-pins 2.54mm pitch.
Wire length: 100cm.
Frame size: 56mm x 56mm.
Motor Body Length LMAX: 76mm.

57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.2A 1.8Nm

57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.2A 1.8Nm

Low stock: 2 left

Product Code

SKU:2260

Regular price ₱ 917.00
Regular price Sale price ₱ 917.00
Sale Sold out
View full details
