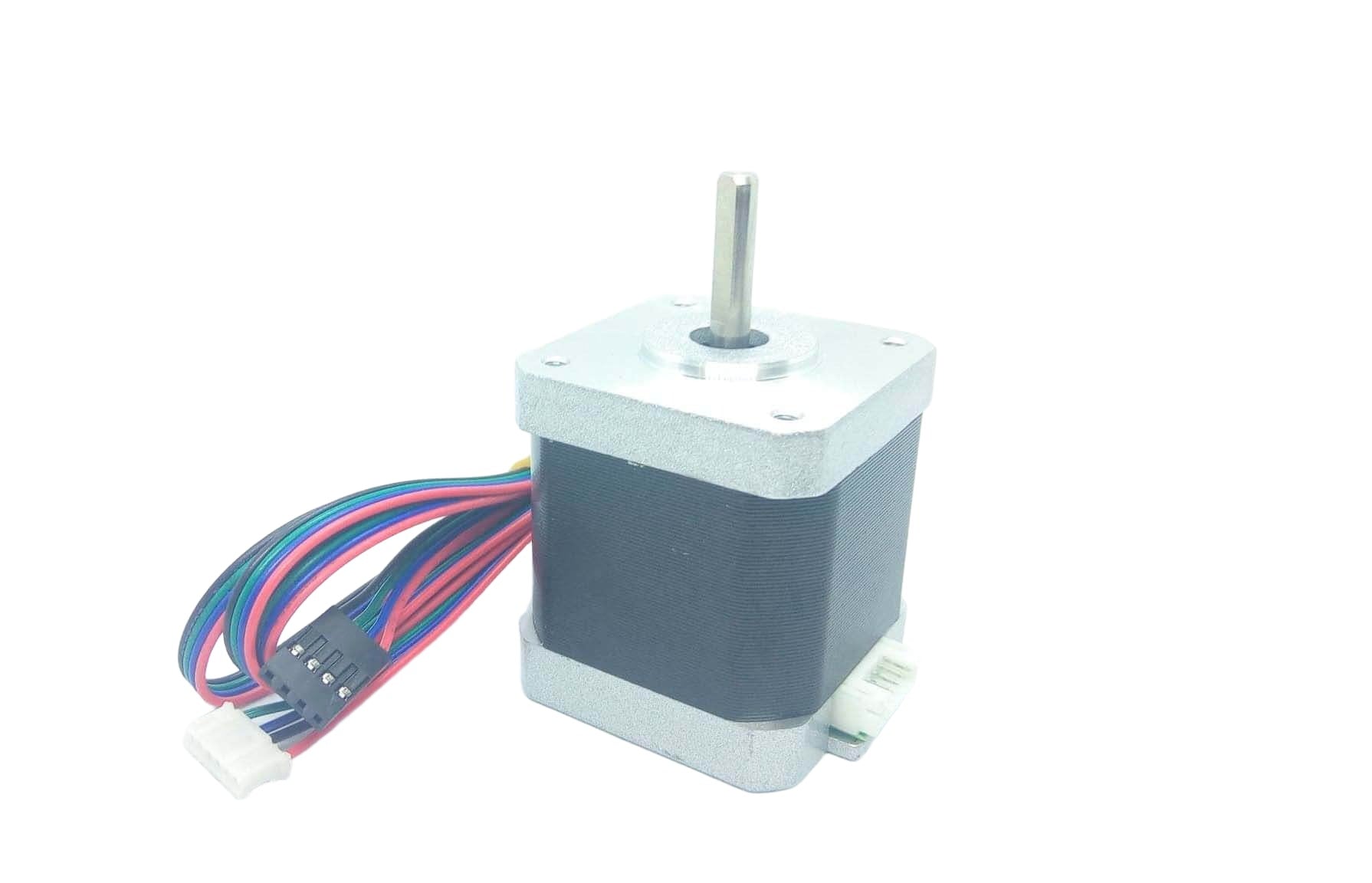

Stepper NEMA 17 Bipolar Motor 42 x 42 x 48 mm
A go-to stepper motor if you wanted to build your own CNC machine either a 3D printer or a laser cutter. The size of this motor is 42 x 42 x 48 mm.
We also have the 42 x 42 x 34 mm version.
QUICK SPECS:
- Step angle accuracy: +/- 5% (full step,not load)
- Resistance accuracy: +/- 10%
- Inductance accuracy: +/- 20%
- Phases: 2
- Type: Bipolar Stepper Motor
- Current / Phase: 1.8A
- Size: 42x42x48mm
- Holding Torque: 48Ncm
Pinouts
- Red:A+
- Green:A-
- Yellow:B+
- Blue:B-
QUICK LINKS:
-
Datasheet
-
Stepper Motor Library
- G-code-parser and CNC milling controller: grbl
