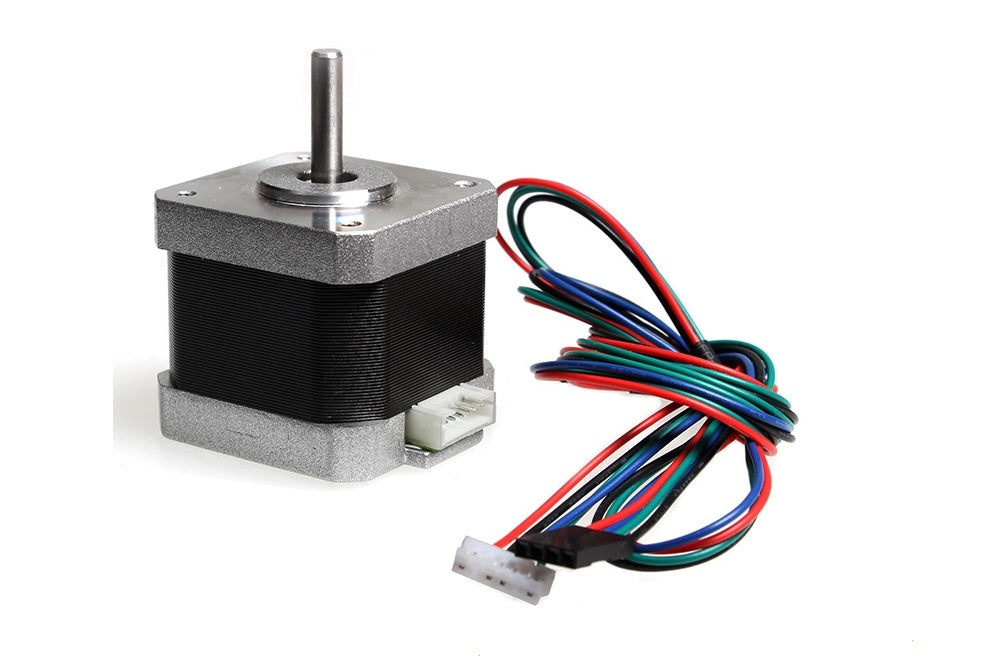

Stepper NEMA 17 Bipolar Motor 42 x 42 x 40 mm

This bipolar stepper motor uses 4 wires to control its positioning and/or speed control. It has low noise and low heat. It can run smoothly with a good acceleration performance. This stepper motor adheres to NEMA 17 size.

We also have the 42 x 42 x 48 mm and 42 x 42 x 34 mm version

QUICK SPECS:

• Step moment angle: 1.8 ° Current: 0.84A
• Resistance: 5.75 Ohm Inductance: 9.3mH
• Static torque: 28N.cm
• Shaft diameter: 5mm
• Motor weight: 300g Body length: 40mm
• NEMA 17
• Model  42HB34F08AB
• Rated power: 200 (W)
• Product Type: 2-phase hybrid stepper motor
• Rated voltage: 7-24 (V)
• Rated current: 1.7 (A)
• Rated speed: 0-900 (rpm)
• Rated torque: 3.5 (NM)
• Dimensions: 42 x 42 x 40 mm

WIRING:

• Blue: A+
• Red: A-
• Green: B+
• Black: B-
