Tamiya 70167 Single Gearbox (4-Speed) Kit

Tamiya 70167 Single Gearbox (4-Speed) Kit

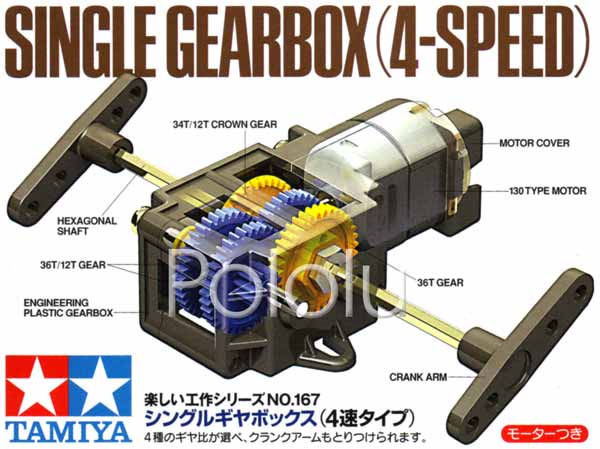

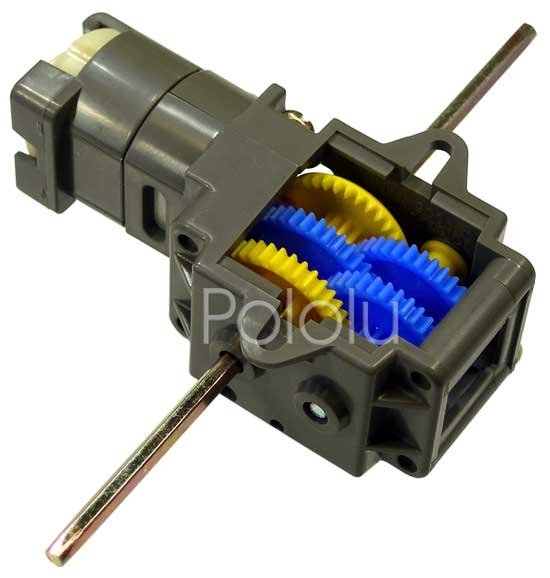

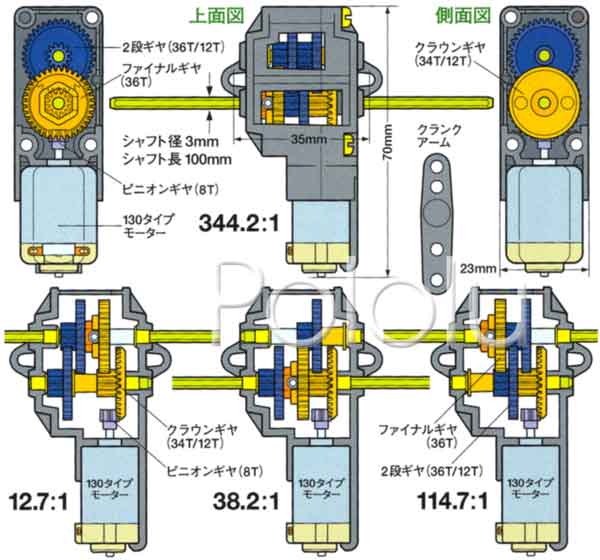

The Tamiya single gearbox is essentially half of the Tamiya 70168 double gearbox. The kit can be built with gear ratios of 12.7:1, 38:1, 115:1, and 344:1. There are two possible output axle locations (for any given gear ratio, only one output location is possible).

Complementary products

The output shafts included in this kit are 3 mm hexagonal axles that are 10 cm (about four inches) from tip to tip. The axles work with any of the Tamiya wheels we carry, giving you many options for your robot speed. The low-voltage motors run on 3-6 volts and draw up to a few amps, making them perfect candidates for the DRV8833 motor driver carrier. Motor overheating can be caused by excessive stalling, even at very low voltages. We recommend that you use stall-detection sensors, or just watch your robot, to make sure that it doesn’t stall for more than a few seconds at a time. For motor specs, see the Mabuchi motor FA-130 (#18100) data sheet (58k pdf).

Note that you can replace the motor in this kit with a lower-current, higher-voltage motor if you want to use this gearbox with controllers such as the qik 2s9v1 dual serial motor controller, TB6612FNG dual motor driver carrier, or Baby Orangutan B-328 robot controller.

To compare all Tamiya gear box kits, see the Tamiya Gearbox Gear Ratio Comparison.

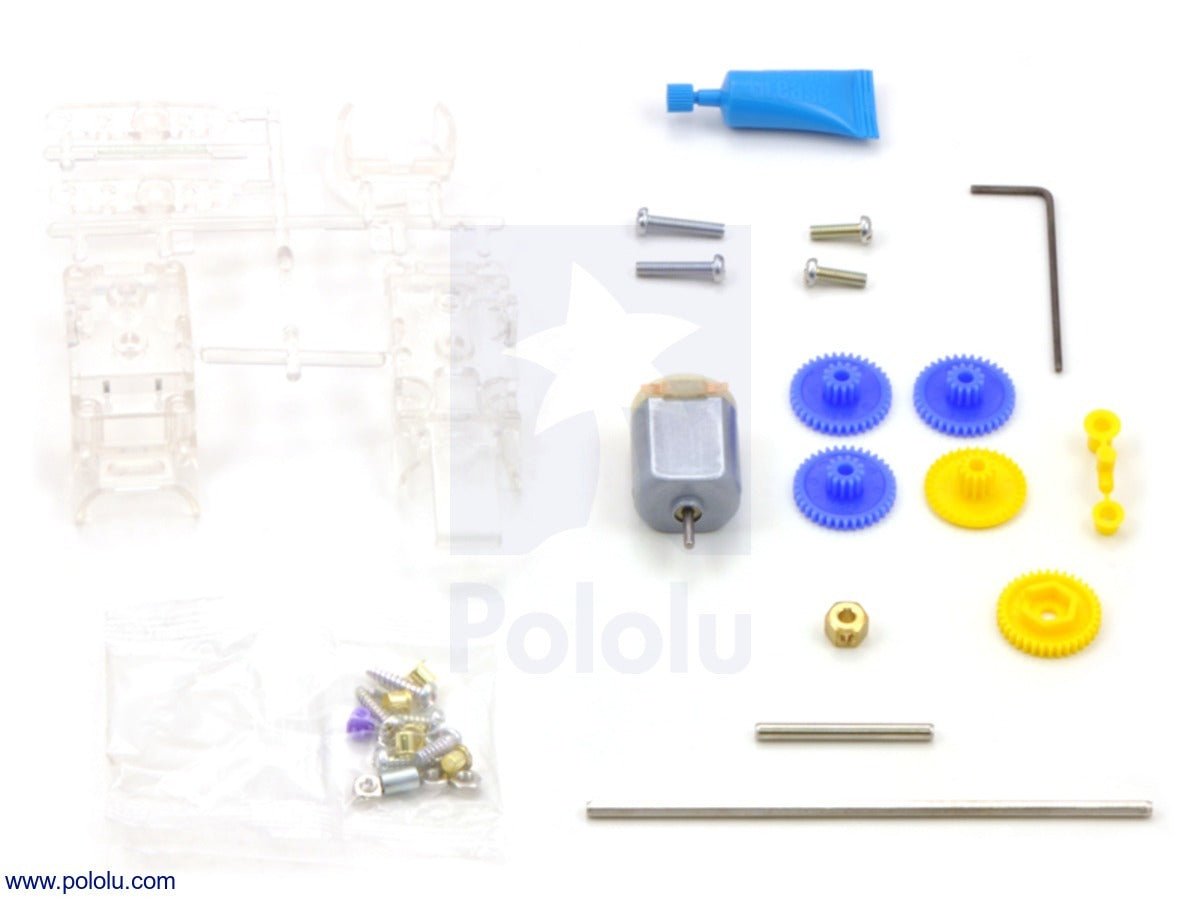

Note: The single gearbox (4-speed) is a kit; assembly is required. To use the kit in robotics projects, you need to connect the motors to your own robot controller.

General specifications

Typical operating voltage: 3 V
Gear ratio options: 12.7, 38, 115, 344 :1
Free-run motor shaft speed @ 3V: 12300 rpm1
Free-run current @ 3V: 150 mA2
Stall current @ 3V: 2100 mA
Motor shaft stall torque @ 3V: 0.5 oz·in3
Color: gray

Notes:

1
A theoretical speed of the gearbox output shaft can be computed by dividing this speed by the gear ratio.
2
This is the no-load current of the motor when disconnected from the gears in the gearbox; the no-load current of the entire gearbox with the motor connected will be slightly higher and will vary depending on the gear ratio.
3
A theoretical torque of the gearbox output shaft can be computed by multiplying this torque by the gear ratio.
