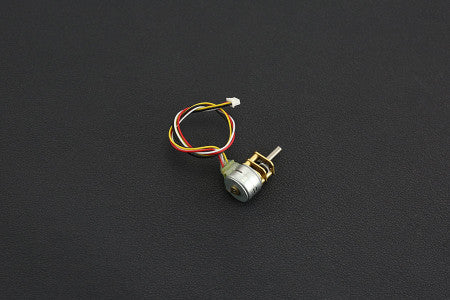

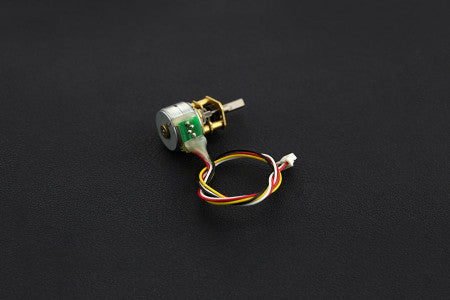

Micro Metal Geared Stepper Motor-12V 0-6kg-cm

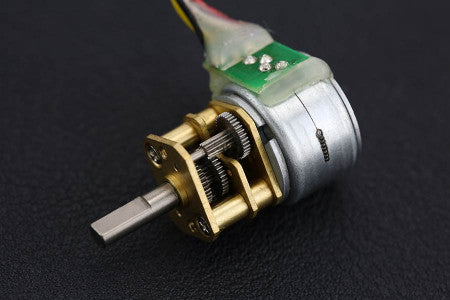

This is a miniature stepper motor with 100:1 metal reduction gear box for enhanced torque. It has a voltage input range of 5 - 12V DC. This product is suitable for the 3D printers and applications which require precise rotation control.

Note: Please limit the motor current, or overlarge current will burn the motor.

SPECIFICATION

• Stepper Motor:

• Coil resistance: 30Ω±10%

• NO. Of Phases: 2 PHASES

• Step Angle: 18° / Step

• MAX.Starting Frequency: 900PPS min

• MAX.Slewing Frequency: 1200 PPS min

• Pull IN Torque: 6gf-cm min

• Lead Out Torque: 10gf-cm max

• Stepper Motor with Gear Box:

• Step Angle: 18/100° / Step

• MAX.Starting Frequency: 900PPS min

• MAX.Slewing Frequency: 1200 PPS min

• Pull IN Torque: 0.5Kgf-cm min

• Lead Out Torque: 0.8Kgf-cm max

• Cable Length: 15cm

• Weight: 14g

DOCUMENTS

• Motor Specification


SHIPPING LIST

• Micro Metal Geared Stepper Motor (12V 0.6kg.cm) x1
