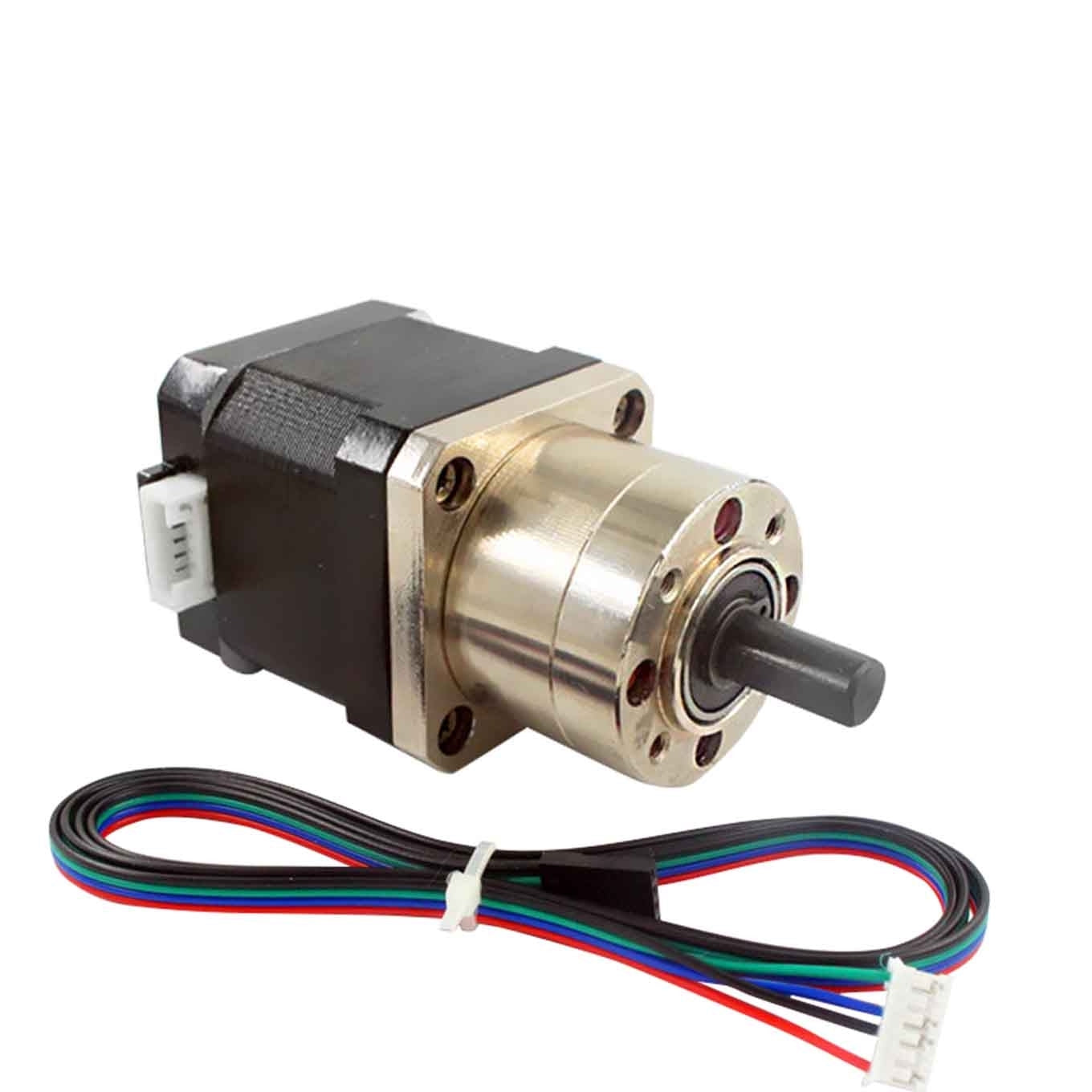

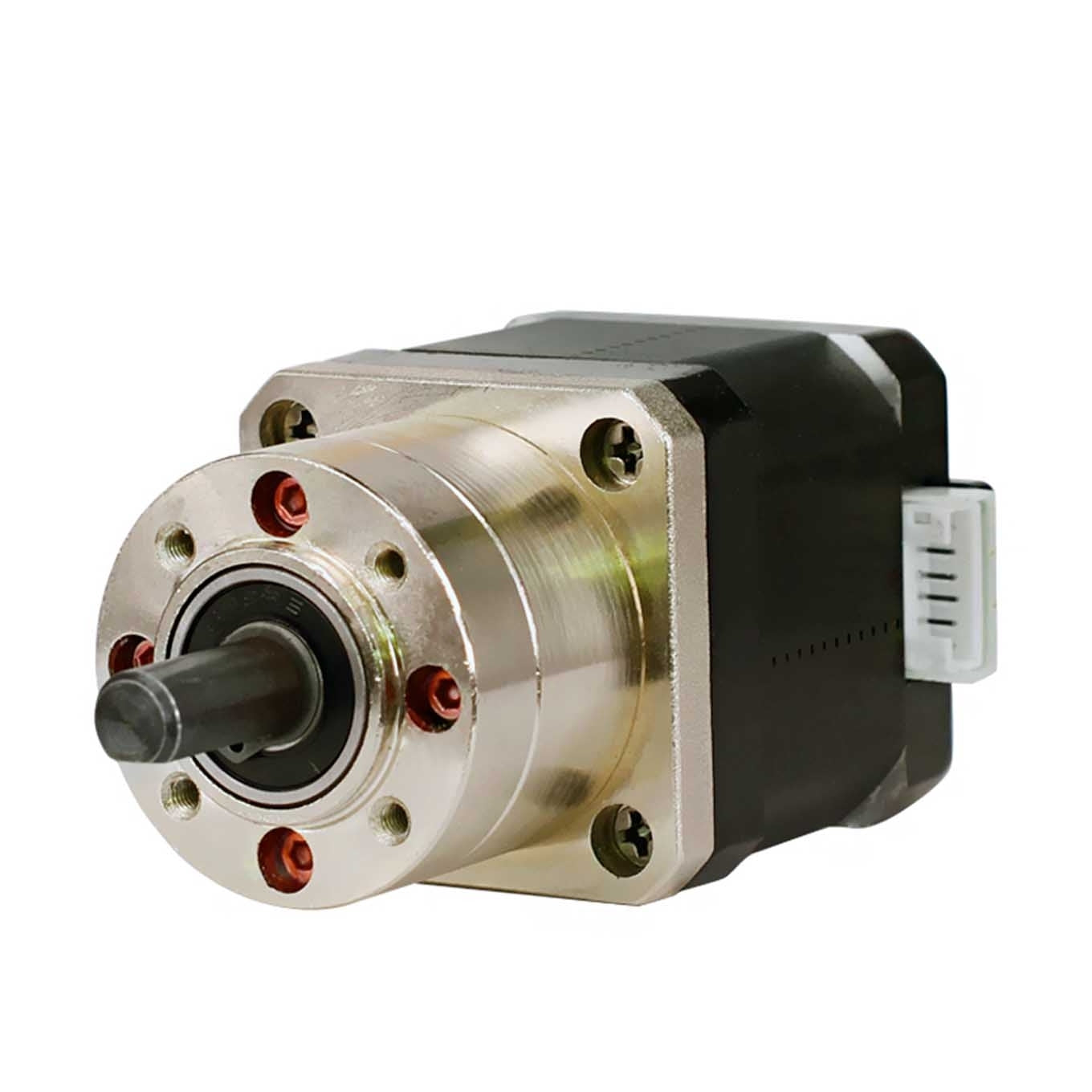

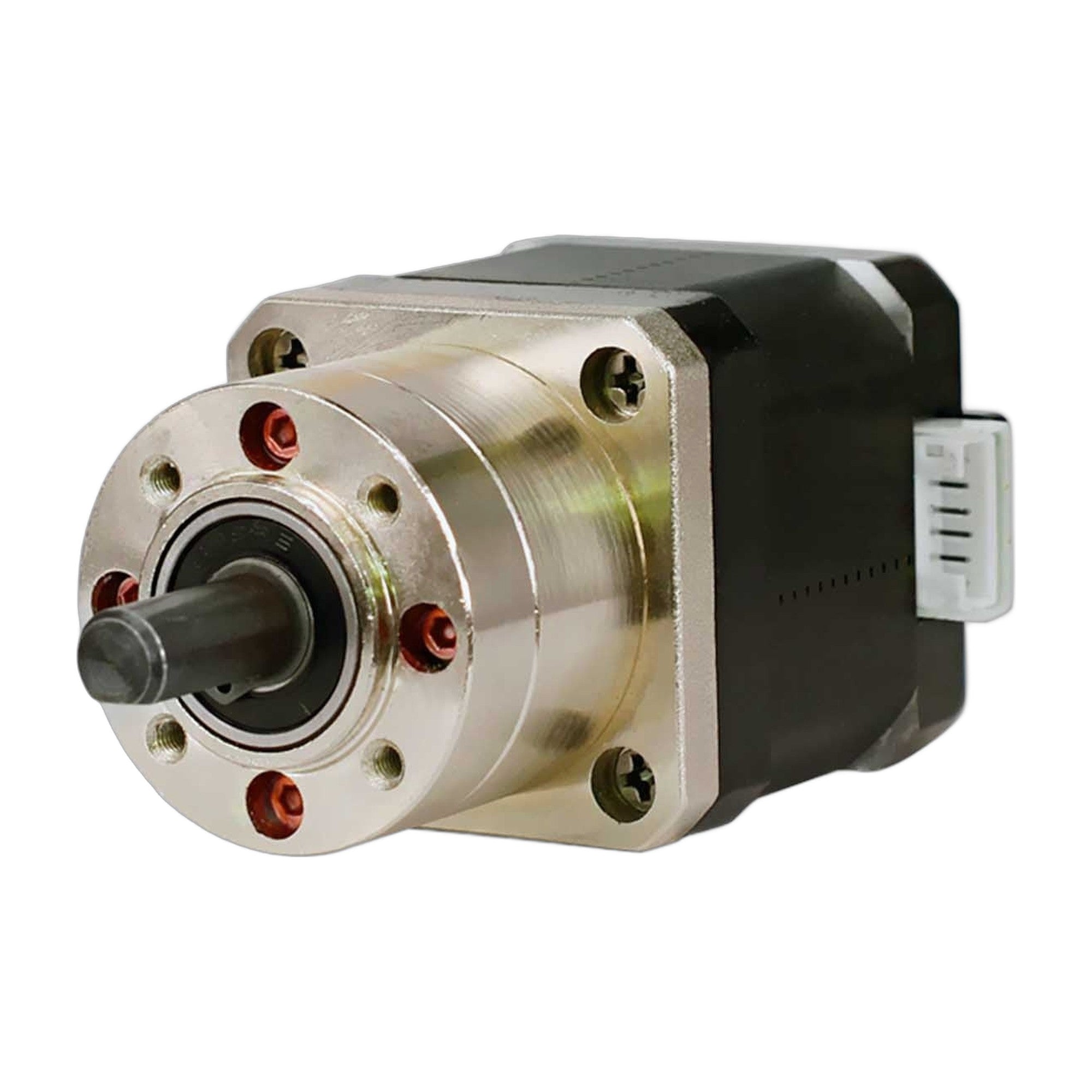

Stepper Motor Bipolar with Planet Gear Box (

If you're looking for a bipolar stepper motor for your printer, 3D printer, CNC, or for your robotics and linear actuator projects, then this item is for you. This motor includes a planet gearbox with a gear ratio of 5:18. It uses a standard 8mm-diameter D type output shaft, and a 1.8° step angle (200 steps/revolution). You don't have to worry about the connection as it already features color-coded wiring with bare leads. There's black and green to one coil and red and blue to another. You can mount it with 4 M3 threaded holes and can be controlled with the Dual Bipolar Stepper Driver for Arduino (A4988).



  • Model No:36PA5.2G-42BYG40-160-4A
  • Step Angle (degrees) :1.8
  • 2 Phase
  • Rated Current : 1.6A@2.78V ,0.37A@12V
  • Holding Torque : 3.5kg*cm (48.6 oz/in)
  • Hold Torque with Gearbox: 18kg·cm (176N·cm) (200rpm)
  • Gear Ratio: 5.18:1
  • Winding resistance: 1.5 Ω
  • Winding inductance: 2.5 mH
  • Max flux linkage: 1.8 Vs
  • Step Angle Accuracy : ±5% (full step, no load)
  • Resistance Accuracy:  ±10%
  • Inductance Accuracy:  ±20%
  • Temperature Rise:  80°C   Max.(rated current,2 phase on)
  • Ambient Temperature:  -20°C~+50°C
  • Insulation Class: B
  • Dimension: 42×42×40mm(1.65x1.65x1.57")
  • Mounting: 4 x M3
  • Mounting Hole Diameter:Φ28


Library: None



  • Stepper Motor with Planet Gear Box ×1
