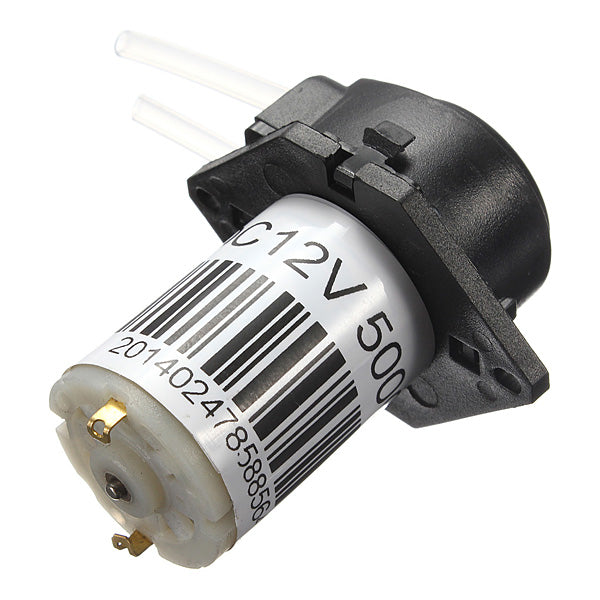

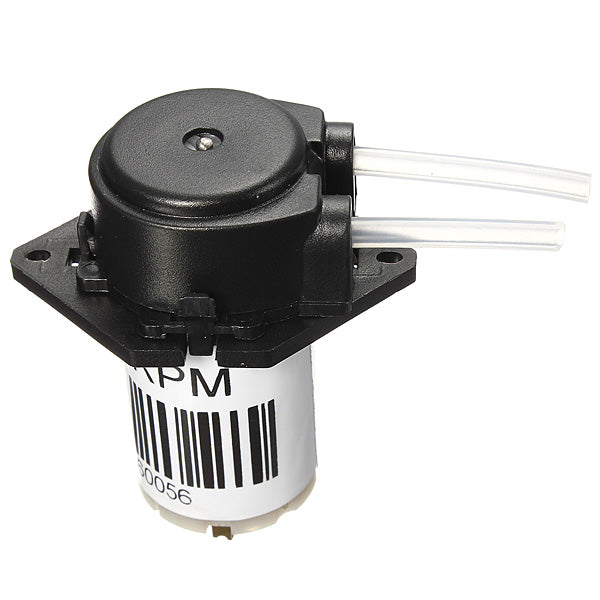

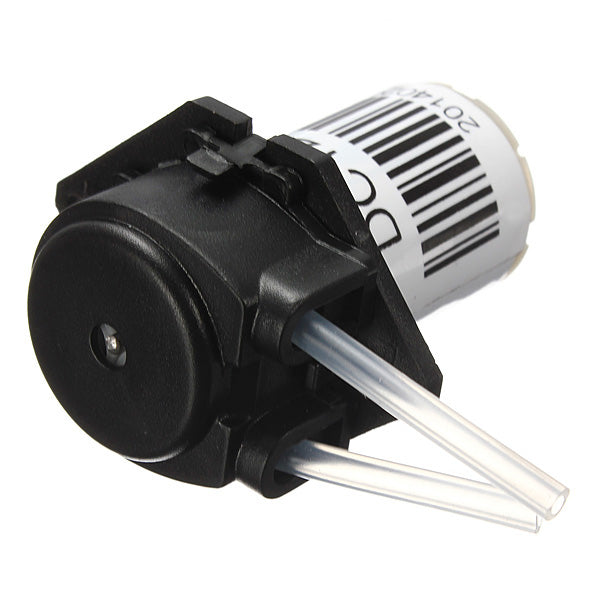

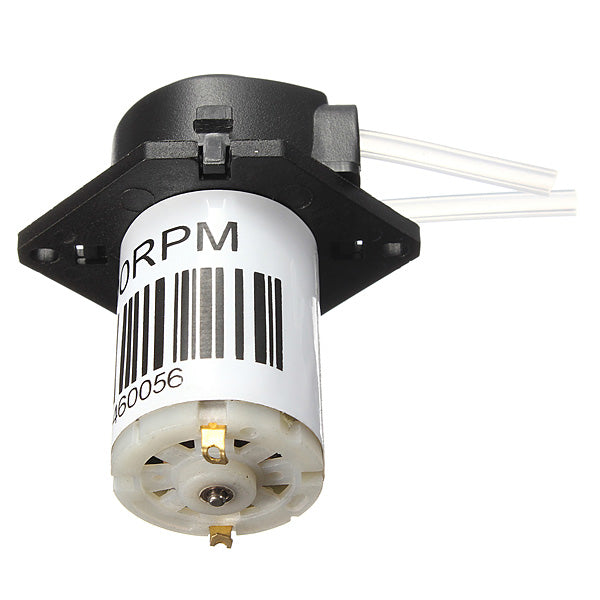

Peristaltic Liquid Pump with Silicone Tubing

Peristaltic Liquid Pump with Silicone Tubing


Are you looking for a sanitary liquid pump for your soon-to-be-amazing project? Then this item is for you. Unlike traditional liquid pumps where the water is in direct contact with your pumping mechanism, this item uses clover-shaped moving parts to push the liquid out of the other valve. You can use PWM to control the rate of the moving mechanism inside the pump. Alternatively, you can use a motor controller like the L293D to control the speed and direction of the pump. You can also use a standard power transistor to switch on and off the pump.


Specifications:

  • Uses approx 4mm outer diameter, 2mm inner silicone tubing
  • Working Temperature: 0℃ - 40 ℃
  • Motor voltage: 12VDC
  • Motor current: 200-300mA
  • Flow rate: up to 100 mL/min
  • Weight: 200 grams
  • Dimensions: 27mm diameter motor, 72mm total length
  • Mounting holes: 2.7mm diameter, 50mm center-to-center distance
Library: None

Inclusions: 1 x Peristaltic Liquid Pump with Silicone Tubing

Documents: None
