Measure Position, Angle, or Motion with Reliable Sensor Data

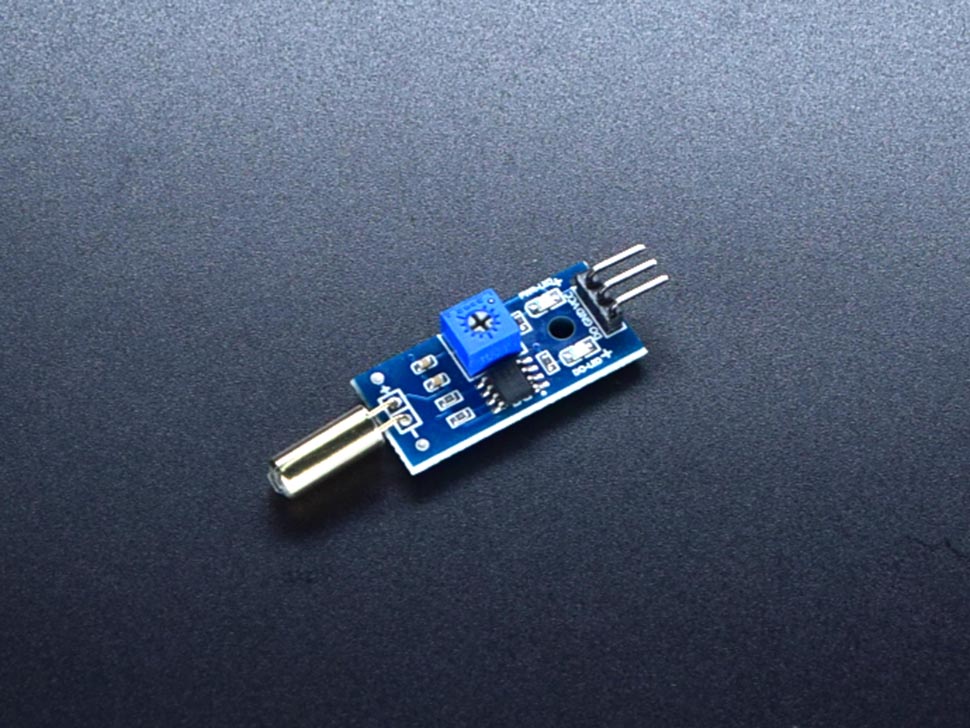

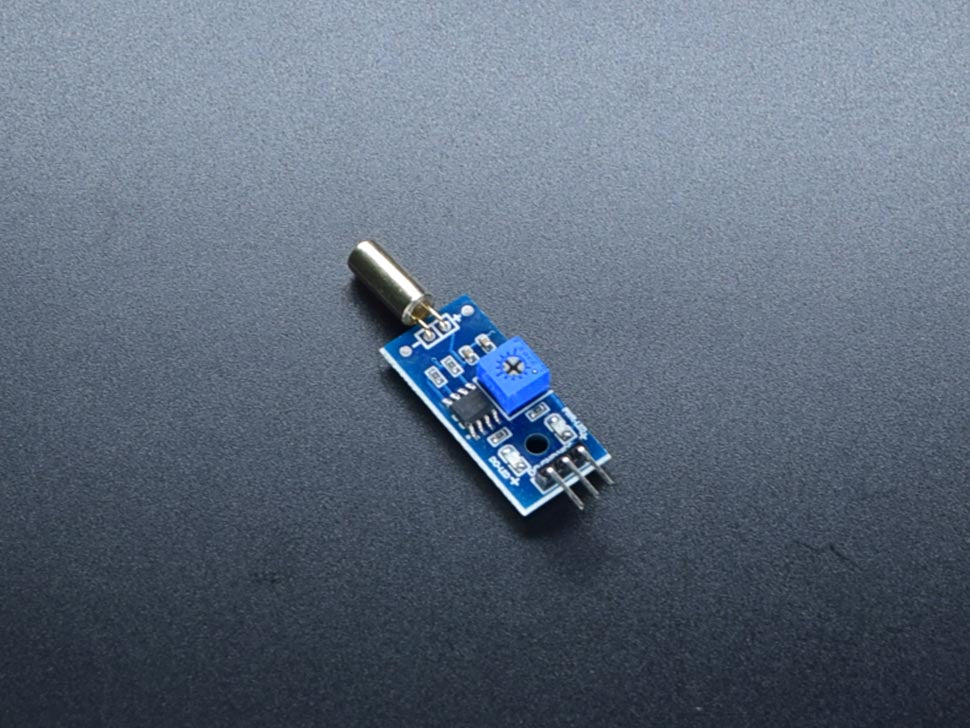

The Tilt Sensor Module is a tilt sensor designed for position feedback, angle sensing, speed measurement, and motion control. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.

Key details include Working voltage: 3.3V-5V.

Important: Motion sensors often need calibration in software to get the best accuracy. Mounting angle and vibration can change the result.

Why you’ll love it

  • Low power consumption: Low power consumption
  • Sensitivity adjustable: Sensitivity adjustable
  • Power range: 3.3V-5V
  • Compact size: 3.2cm * 1.4cm
  • Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
  • Common controller support: Works well with Arduino, ESP32, Raspberry Pi, and similar boards

Compare with similar products

Product Sensor style Standout
Tilt Sensor Module tilt sensor Current item
Tilt Switch Module for Arduino tilt sensor breakout-board format
Tilt Switch Grove tilt sensor with digital output digital output
Crash Sensor Module for Arduino vibration sensor with digital output general-purpose sensing

What you can build

This sensor is a good fit for shaft encoders, speed counters, linear feedback, smart knobs, and actuator control.

Starter bundles

Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard or jumper wires for quick setup and testing.

Recommended add-ons

Useful add-ons include breadboards, jumper wires, displays, enclosures, and logging modules, depending on how you plan to power, mount, and log the sensor.

Technical specifications

Product Tilt Sensor Module
Working voltage 3.3V-5V
Dimension of the board 3.2cm * 1.4cm
Category position angle displacement speed acceleration sensors

Wiring & usage notes

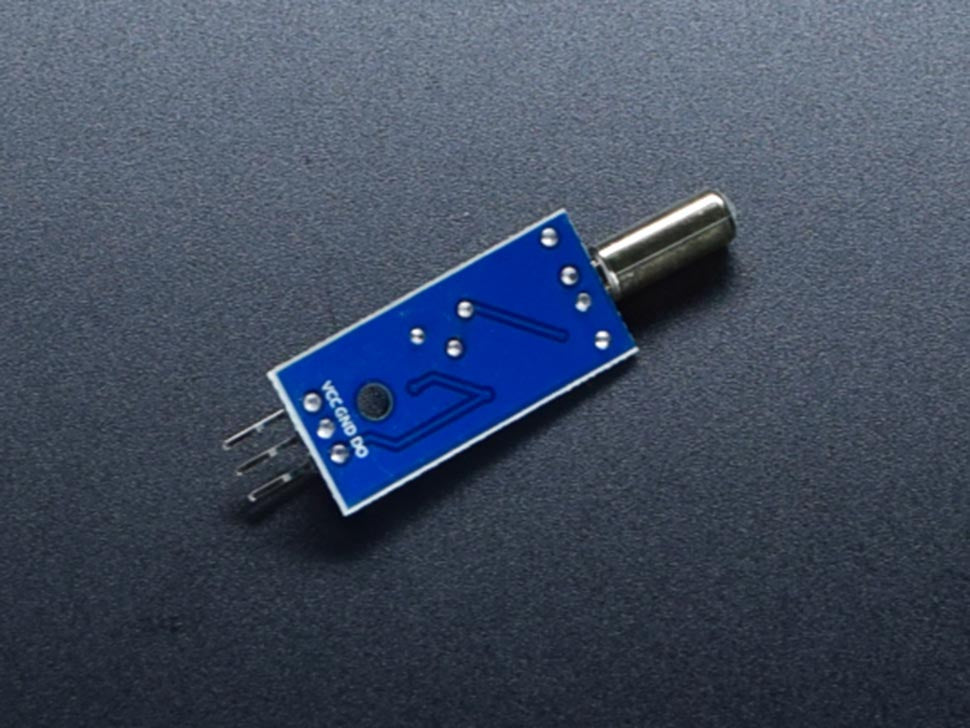

Check the pin labels on the Tilt Sensor Module and match them to your controller voltage, ground, and signal pins. Keep wiring short and verify the logic level before powering the module. Motion sensors often need calibration in software to get the best accuracy. Mounting angle and vibration can change the result.

What’s in the box

1 × Tilt Sensor Module

Frequently Asked Questions

What does the Tilt Sensor Module measure? It is designed to measure motion, tilt, rotation, or orientation.
Can I use it with Arduino, ESP32, or Raspberry Pi? Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
Does it need calibration? Usually yes. Motion sensors often benefit from software calibration to improve offset, drift, and orientation accuracy.
Is it good for prototyping? Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.

Tilt Sensor Module - Mercury-Free Ball-Switch

Tilt Sensor Module - Mercury-Free Ball-Switch

23 in stock

Product Code

2441

₱ 55.00
