Measure Position, Angle, or Motion with Reliable Sensor Data

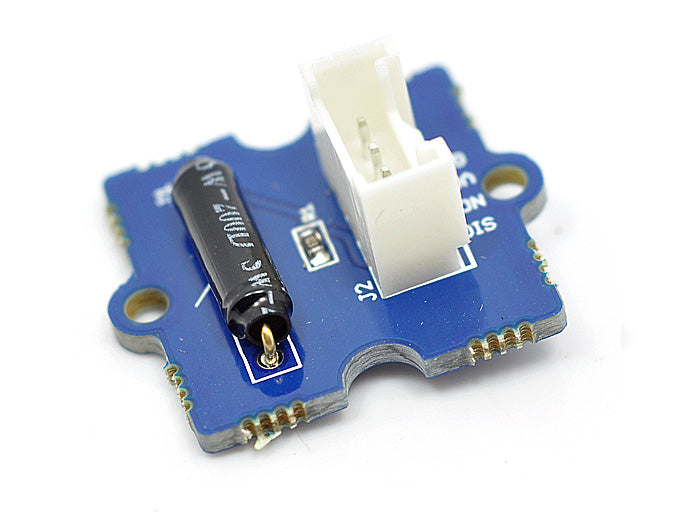

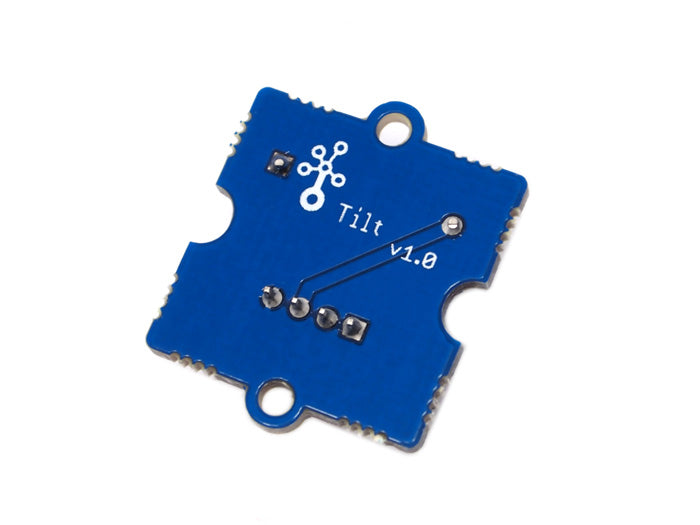

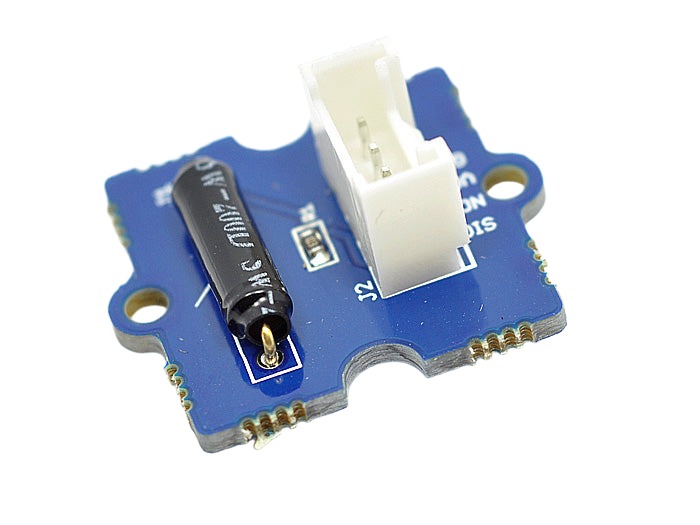

The Tilt Switch Grove is a tilt sensor with digital output designed for position feedback, angle sensing, speed measurement, and motion control. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Interface: Digital GPIO.
Important: Motion sensors often need calibration in software to get the best accuracy. Mounting angle and vibration can change the result.
Why you’ll love it
- Easy wiring: Digital GPIO
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
- Common controller support: Works well with Arduino, ESP32, Raspberry Pi, and similar boards
- Project-ready sensing: position feedback, angle sensing, speed measurement, and motion control
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Tilt Switch Grove | tilt sensor with digital output | Current item |
| Tilt Switch Module for Arduino | tilt sensor | breakout-board format |
| Tilt Sensor Module | tilt sensor | adjustable sensing range |
| Crash Sensor Module for Arduino | vibration sensor with digital output | general-purpose sensing |
What you can build
This sensor is a good fit for shaft encoders, speed counters, linear feedback, smart knobs, and actuator control.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include a microcontroller board, jumper wires, and pull-up or pull-down support when needed, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Tilt Switch Grove |
|---|---|
| Gaming Devices | Tilt switches can be used in motion-sensing games such as pinball devices and amusement games. |
| Robotic Devices | Tilt switches can be used in robotics to identify the orientation of a robot or other automatic system and initiate a reaction. |
| Wearable Devices | Tilt switches can be used in wearable devices to sense shifts in device orientation, such as when a wristwatch is worn on the wrist. |
| Alert systems | When a tilt switch recognizes that an item has been moved or interfered with, it can sound an alert. |
| Interface | Digital GPIO |
| Category | position angle displacement speed acceleration sensors |
Wiring & usage notes
Connect power and ground, then wire the output pin to a digital GPIO input. Check whether the module uses active-high or active-low logic in your code. Motion sensors often need calibration in software to get the best accuracy. Mounting angle and vibration can change the result.
What’s in the box
1 × Tilt Switch Grove
Frequently Asked Questions
What does the Tilt Switch Grove measure?
It is designed to measure motion, tilt, rotation, or orientation.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this Digital GPIO sensor?
This sensor provides a digital switching-style signal that is easy to read from a GPIO pin.
Does it need calibration?
Usually yes. Motion sensors often benefit from software calibration to improve offset, drift, and orientation accuracy.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
