Joystick Dual Axis XY PS2 Module for Arduino

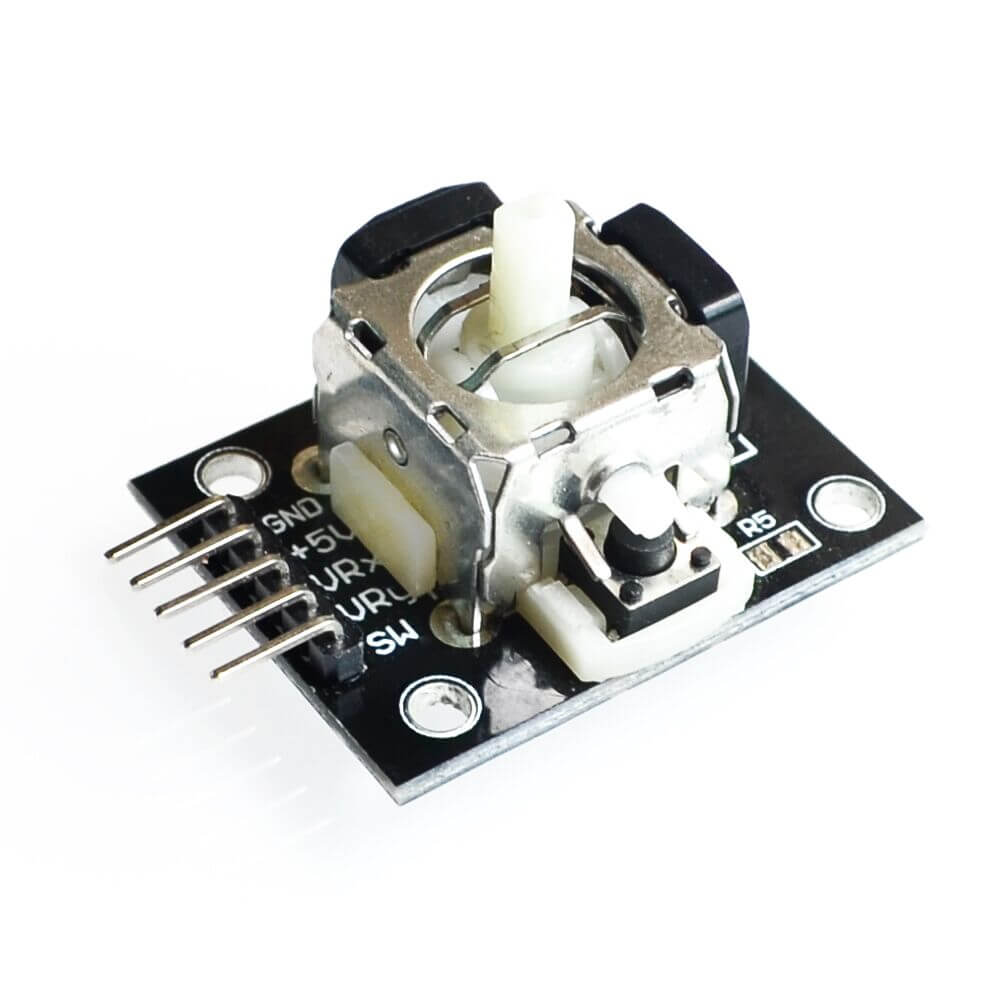

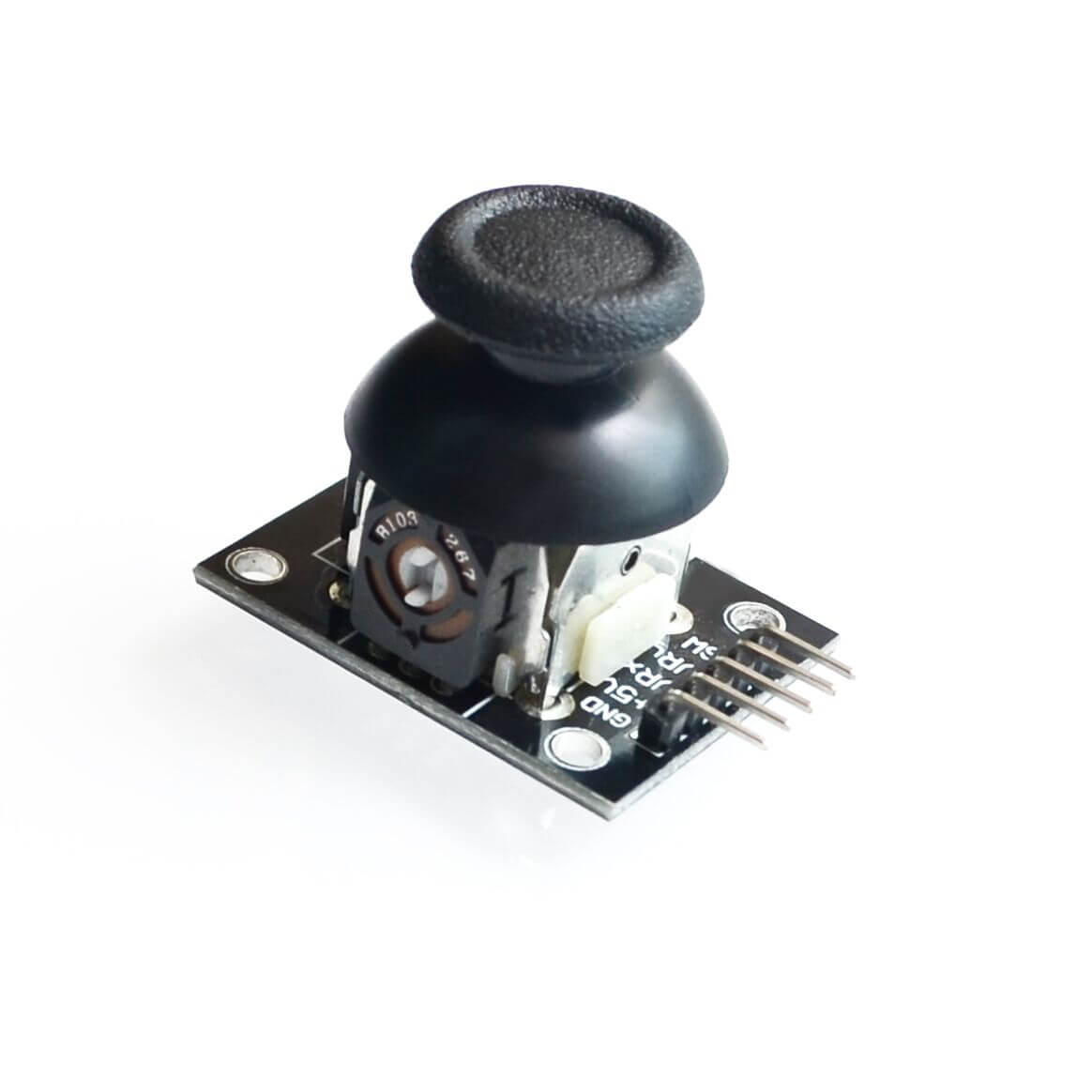

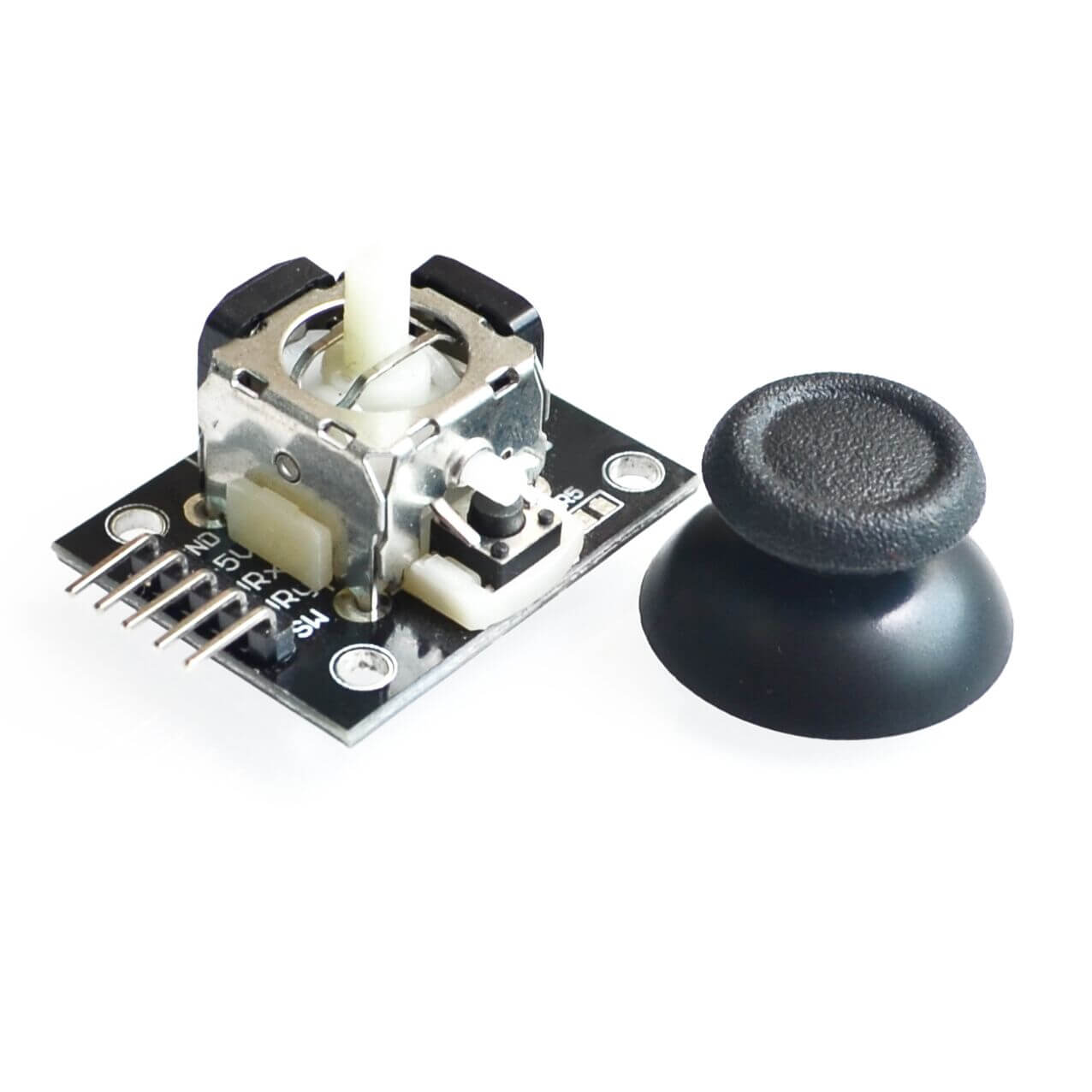

You could make your controller using tactile buttons in addition to this component. This component produces directional controls as well as a select button. You may also use this in making your drone, or any moving project controller. This joystick is composed of two potentiometers for the axis reading and 1 tactile that acts as a select button. It uses potentiometers and produces a reading of 0 to 1023, depending on the orientation of the joystick. In the resting position, the reading for both axes should be at 512. This module operates with a 5V power supply. It has a dimension of 40mm x 26mm x 32mm, a rather small form factor for many controls.

It could be connected to your MCU using 3 analog pins or a combination of 2 analog and a digital pin and the power supply (VCC/GND).

You could use this module in projects with movement control like a Bluetooth control 4WD mobile platform, or even your

DIY gamepad controller.

Features:

• 4 X 2.6 X 3.2CM

• 2 potentiometers for 2 axes

• 1 switch

• Connector: +5Vcc - GND - VRx - VRy – SW

Dimensions:

• Size: 4 X 2.6 X 3.2CM

• 2 potentiometers for 2 axes

• 1 switch

• Connector: +5Vcc - GND - VRx - VRy - SW

In the realm of DIY electronics and robotics, interfacing with physical controls has become increasingly important. Among various input devices, the joystick stands out due to its intuitive nature and versatility. The Joystick Analog Module for Arduino from Circuitrocks is a popular choice among hobbyists and developers looking to enhance their projects. Here, we will delve into the features, applications, and setup of this incredible module.

What is the Joystick Analog Module?

The Joystick Analog Module is a compact device that typically consists of two potentiometers and a push button. It allows users to control two axes of movement—X and Y—along with a pressable button for additional functionality. This makes it an ideal component for a wide range of applications, from simple games to complex robotics.

Key Features of Joystick Anolog Module

• Dual-Axis Control: The module provides two analog outputs that correspond to the horizontal (X-axis) and vertical (Y-axis) movements. This allows for precise control over movements, essential for applications like remote-controlled vehicles or robotic arms.
• Built-In Button: In addition to the two axes, the joystick includes a button that can be used for various functions, such as starting or stopping an action. This feature adds another layer of interactivity, making the module even more versatile.
• Easy Integration: The module is designed for straightforward integration with Arduino boards. It uses standard connections and comes with helpful documentation, making it accessible even for beginners.
• Durability and Reliability: Built with quality materials, the joystick is designed to withstand repeated use, ensuring that it can handle the rigors of various projects.

Applications of Joystick Dual Axis

The applications of the Joystick Analog Module are vast. Here are a few notable examples:

• Robotics: In robotic applications, the joystick can serve as a controller for maneuvering robots. Whether it’s a simple wheeled robot or a complex robotic arm, the joystick provides intuitive control.
• Gaming: For game developers, integrating this module into custom games can enhance user experience. Players can control characters or navigate environments smoothly using the joystick.
• Simulation: Flight or driving simulators can benefit significantly from the precise control offered by the joystick, providing a realistic experience for users.
• Drones: Hobbyist drone builders can use the joystick to create custom control systems, allowing for improved handling and maneuverability.

Conclusion

The Joystick Analog Module for Arduino from Circuitrocks is a powerful and flexible tool that opens up a world of possibilities for interactive projects. Its ease of use, combined with its durable design, makes it an excellent choice for both beginners and seasoned developers. Whether you’re building a robot, creating a game, or designing a simulator, this module can significantly enhance your project’s interactivity and functionality. Explore the vast potential of the Joystick Analog Module and take your Arduino projects to the next level!
