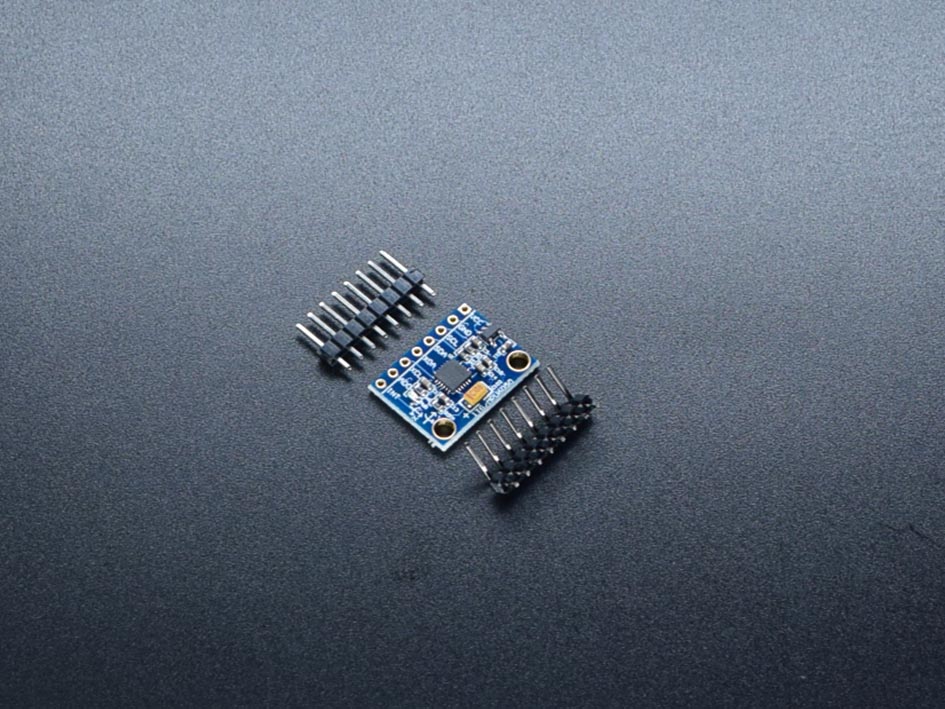

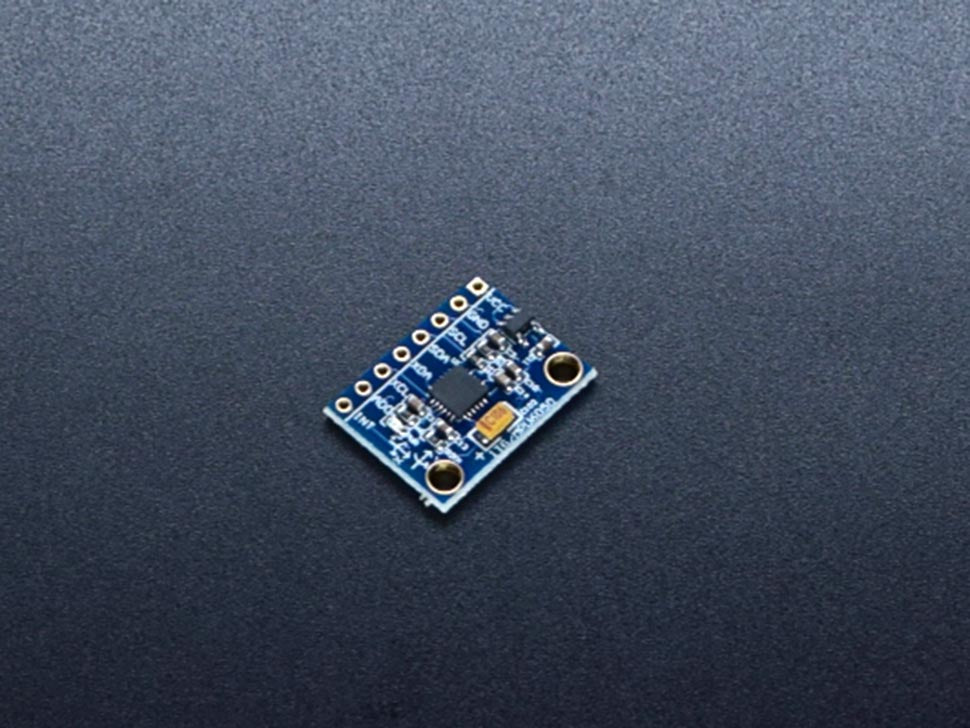

Triple Axis Accelerometer & Gyro Breakout MPU-6050


The MPU-6050 is a serious little piece of motion processing tech! By combining a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor(DMP) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.

SPECIFICATIONS:

  • I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
  • Input Voltage: 3V-5V
  • Selectable Solder Jumpers on CLK, FSYNC and AD0
  • Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of 250, 500, 1000, and 2000dps
  • Tri-Axis accelerometer with a programmable full scale range of +-2g, +-4g, +-8g and 16g
  • Digital Motion Processing(DMP engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
  • Embedded algorithms for run-time bias and compass calibration. No user intervention required
  • Digital-output temperature sensor
  • Dimensions: 20 * 15 * 1.6mm

WIKI

Triple Axis Accelerometer & Gyro Breakout MPU-6050

Triple Axis Accelerometer & Gyro Breakout MPU-6050

36 in stock

Product Code

SKU:AB001

Regular price ₱ 189.00
Regular price Sale price ₱ 189.00
