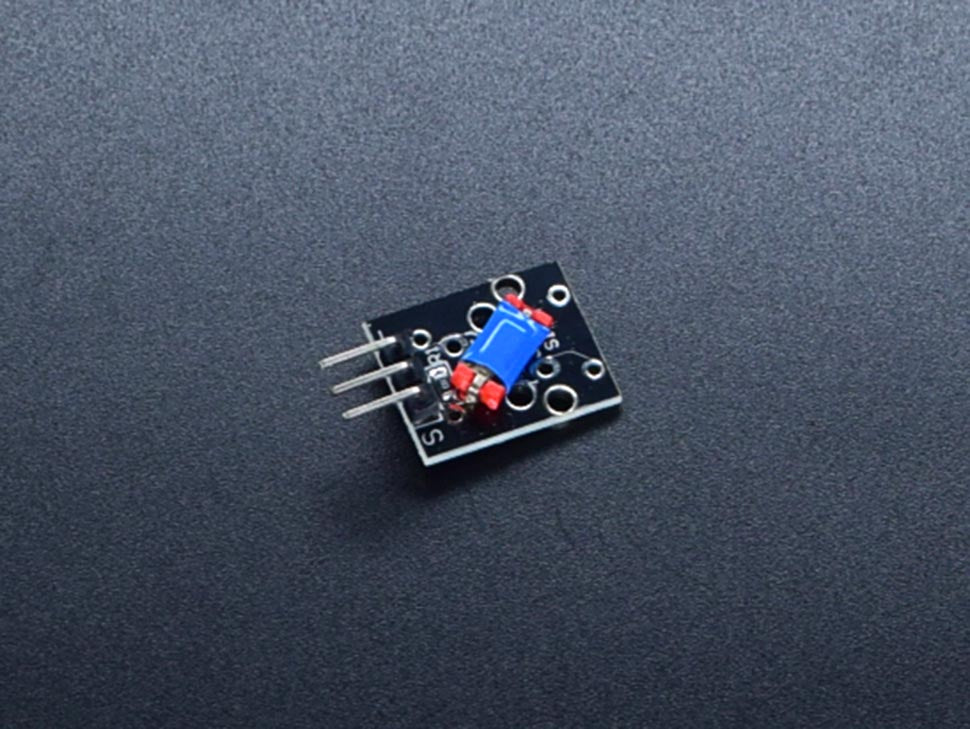

Tilt Switch Module for Arduino

Tilt Switch Module for Arduino - This Tilt Switch Module for Arduino is a no-nonsense breakout board that triggers a HIGH signal when placed at a certain angle compared to the horizon. It only needs three pins to operate and doesn't require a library. Moreover, it is so tiny that it'll integrate into your projects like coffee and milk. This module is perfect for planes and other devices that is orientation sensitive.

Frequently Asked Questions about Tilt Switch Module for Arduino

Q1: What is a Tilt Switch Module for Arduino?

A: A Tilt Switch Module for Arduino is a sensor that detects the orientation or inclination of an object. It consists of a small metal ball inside a tube with two contacts. When the module is tilted or moved, the ball rolls and makes contact with the two contacts, which sends a signal to the connected Arduino board.

Q2: How does a Tilt Switch Module work?

A: A Tilt Switch Module works by using a small metal ball that is free to move inside a tube with two contacts. When the module is tilted, the ball rolls and makes contact with the two contacts, completing a circuit and sending a signal to the connected Arduino board.

Q3: What are the applications of a Tilt Switch Module?

A: Tilt Switch Modules are commonly used in applications where orientation or inclination needs to be detected, such as detecting the orientation of a robot, detecting the position of a door or window, and detecting the orientation of a game controller.

Q4: How do I connect a Tilt Switch Module to an Arduino?

A: A Tilt Switch Module can be connected to an Arduino using three wires: VCC, GND, and a digital input pin. Connect VCC to 5V, GND to GND, and the digital input pin to the signal pin on the module.

Q5: How do I program a Tilt Switch Module with Arduino?

A: To program a Tilt Switch Module with Arduino, you can use the digital Read function to read the state of the digital input pin connected to the module. When the module is tilted, the function will return a HIGH value, and when it is not tilted, it will return a LOW value.

Q6: What is the sensitivity of a Tilt Switch Module?

A: The sensitivity of a Tilt Switch Module can vary depending on the specific module, but most have a fairly low sensitivity, meaning that they require a significant tilt or movement to trigger.

Q7: Can I use multiple Tilt Switch Modules with one Arduino?

A: Yes, you can use multiple Tilt Switch Modules with one Arduino by connecting each module to a separate digital input pin on the board.

Q8: Can I use a Tilt Switch Module with other microcontrollers?

A: Yes, a Tilt Switch Module can be used with other microcontrollers as long as they have digital input pins and can read the state of those pins.

Specifications:

  • Operating Voltage: 5VDC
  • Dimensions: 25 x 15 x 5 mm (L x W x H)
Library: None

Inclusions: 1 x Tilt Switch Module

Documents: None

Tilt Switch Module for Arduino

Tilt Switch Module for Arduino

33 in stock

Product Code

SKU:2440

Regular price ₱ 49.00
Regular price Sale price ₱ 49.00
