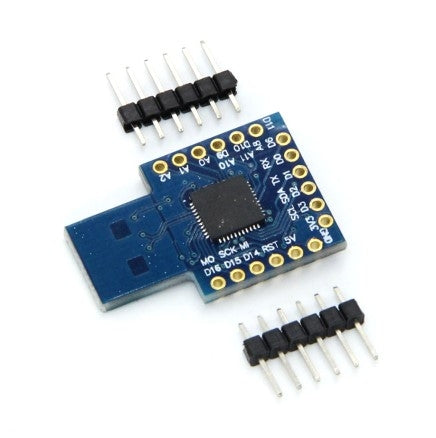

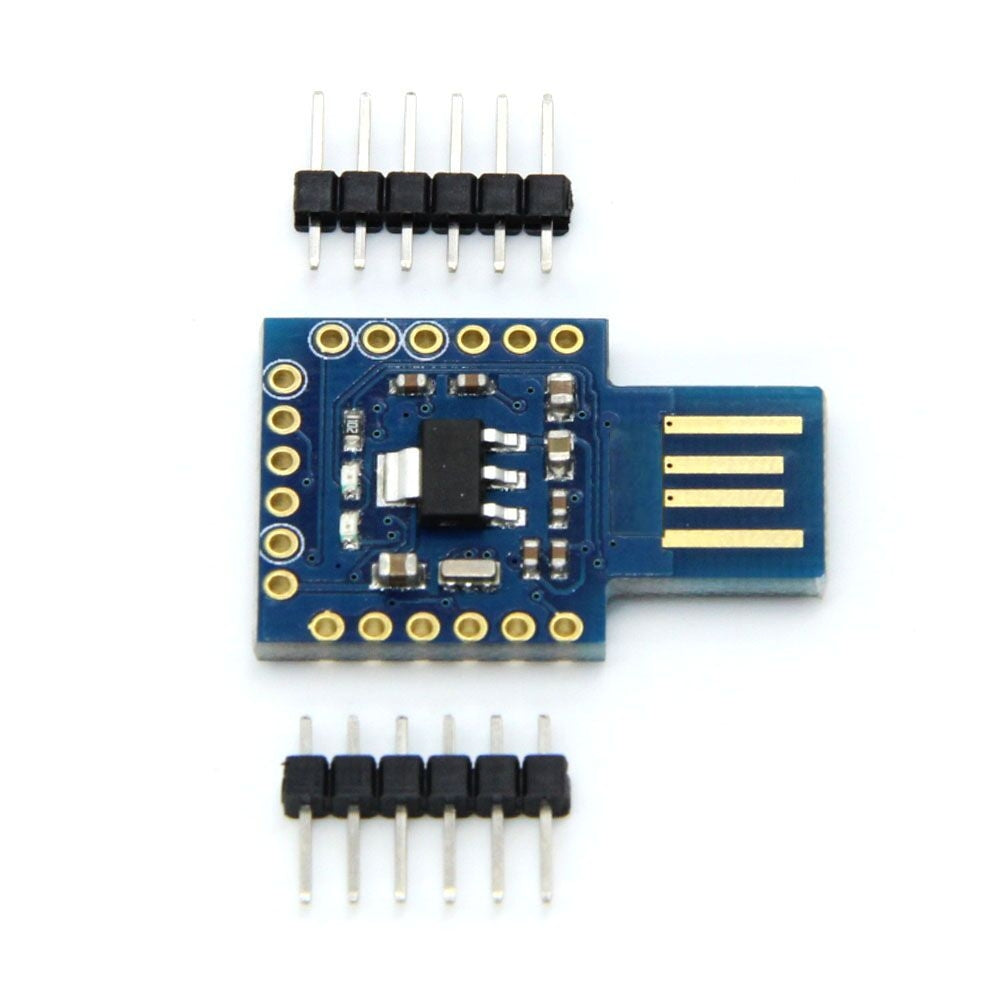

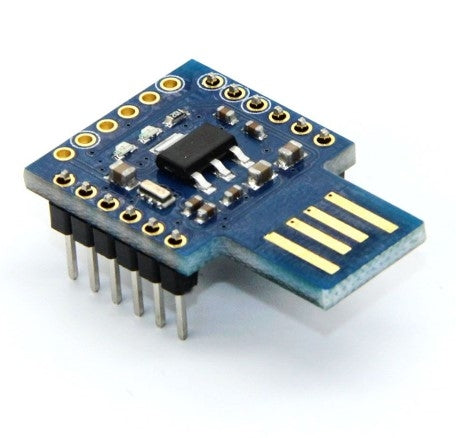

SS Micro ATmega32U4 Arduino Compatible - The SS Micro ATmega32U4 is an Arduino-compatible microcontroller board that is based on the ATmega32U4 microcontroller. It is designed to be used in a wide range of applications, including robotics, automation, and other projects. The board is compatible with the Arduino development environment and can be programmed using the Arduino IDE.

Features of SS Micro ATmega32U4

• 32 KB flash memory and 2.5 KB SRAM
• Operating voltage of 5 V
• 16 MHz clock speed
• USB connectivity, which allows the board to be programmed and powered via USB
• Built-in USB-to-Serial converter, which eliminates the need for a separate USB-to-Serial adapter
• 23 digital I/O pins, including 12 PWM outputs and 8 analog inputs
• 6-channel 10-bit ADC
• On-board reset button and power LED
• Support for external interrupts and sleep modes
• Support for multiple serial communication protocols, including I2C, SPI, and UART

How You Can Programm SS Micro ATmega32U4?

The SS Micro ATmega32U4 can be programmed using the Arduino IDE, which is available for Windows, Mac, and Linux. To get started, you will need to install the Arduino IDE and the appropriate drivers for your operating system. Once the IDE is installed, you can connect the board to your computer using a USB cable and select the appropriate board and serial port in the IDE.

You can then write and upload your code to the board using the IDE, and use the board's various features and capabilities in your projects. There are also a wide variety of libraries and example codes available for the ATmega32U4, which can be easily integrated into your projects.

Use Of SS Micro ATmega32U4 In Applications

• The SS Micro ATmega32U4 can be used in a wide range of applications, such as:
• Robotics and automation projects, where the board can be used to control motors, sensors, and other devices.
• Interactive projects, such as LED displays, games, and other interactive installations.
• Data logging and monitoring applications, where the board can be used to collect and process data from sensors.
• IoT projects, where the board can be used to connect to the internet and communicate with other devices.

How cool would it be if you could turn any button, joystick, sensor, or other electronic gizmo into a USB keyboard and/or mouse? You could make just about any input device you want into a controller for your computer programs or games. What if you could do it with one line of code, inside the comfy confines of Arduino? Interested? Well, say hello to my micro friend: the SS Micro ATmega32U4 Arduino Compatible

QUICK SPECS:

• Microcontroller: ATmega32u4

• Operating voltage: 5V

• Digital IO Pins: 16

• PWM Pins: 6

• Analog Inputs Pins: 7

• Other peripherals: USB, UART, I2C, SPI, 3.3V Power Supply Output

• IO driving force: 40mA

• Flash: 32KB (ATmega32u4) where 4KB is occupied for Arduino bootloader

• SRAM: 2.5 KB (ATmega32u4)

• EEPROM: 1 KB (ATmega32u4)

• Frequency: 16Mhz

• Size: 23.50 * 20.34mm
