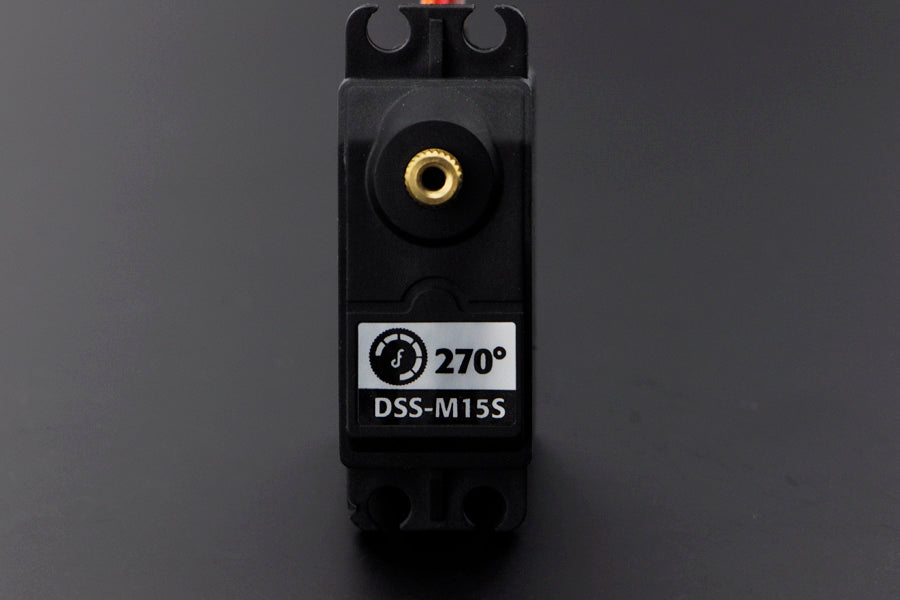

Servo DF Metal Geared 15Kg Standard 270° (DSS-M15S)

DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.

Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 270°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15S servo demonstrates a maximum torque of 18Kg without much vibration or heat.

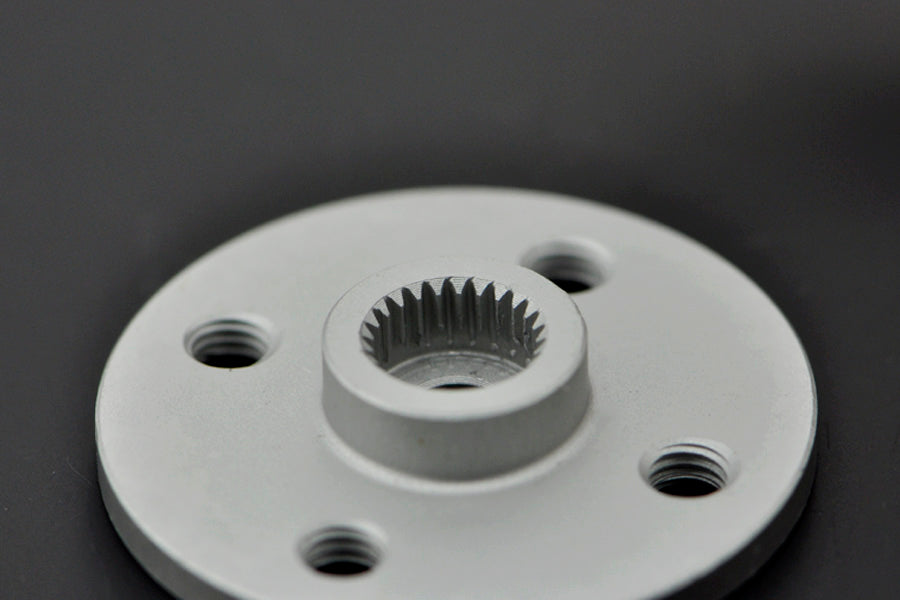

In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.

SPECIFICATION

• Voltage: 4.8-7.2 Volts

• Torque: 13.5Kg*cm/15Kg*cm (6.0V/7.0V)

• Speed: 0.18 sec/60°/0.16 sec/60° (6.0V/7.0V)

• Free Run Current: 80mA/100mA (6.0V/7.0V)

• Stall Current: 1.8A/2A (6.0V/7.0V)

• Standby Current: 4mA/5mA (6.0V/7.0V)

• Rotation: 270°

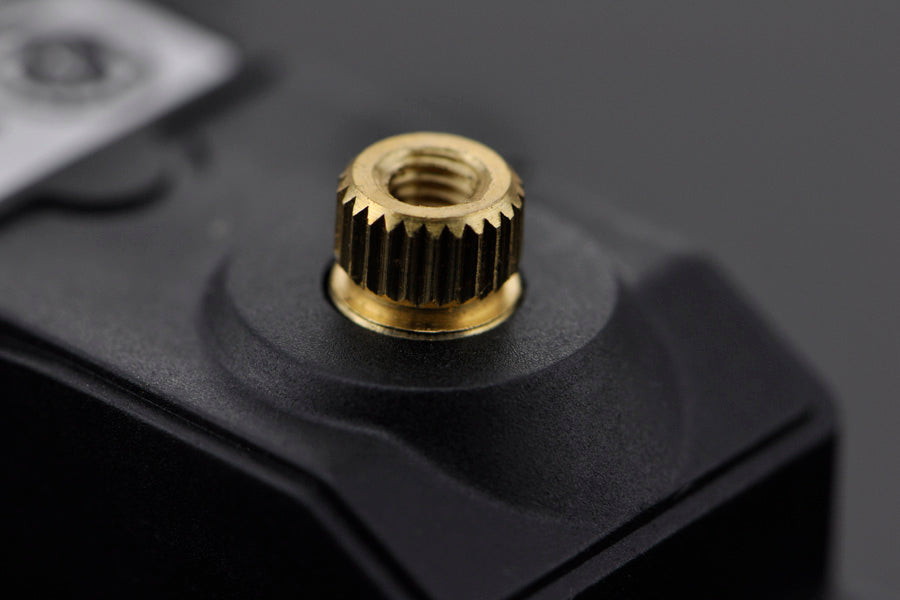

• Wheel Gear: Metal

• Gear Ratio: 310:1

• Dimension: 54.5*20*47.5mm

• Signal: RC PWM

• Pulse Range: 500-2500 us

• Frequency: 50-330Hz（Arduino-compatible）

DOCUMENTS

• Electrical Specification

• Mechanical Specification

• Control Specification

• Mechanical Drawing

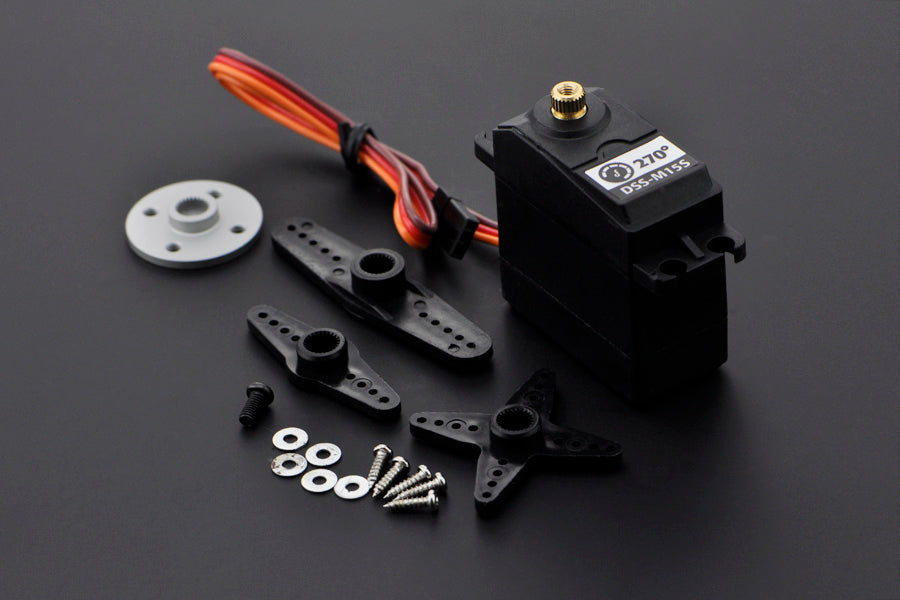

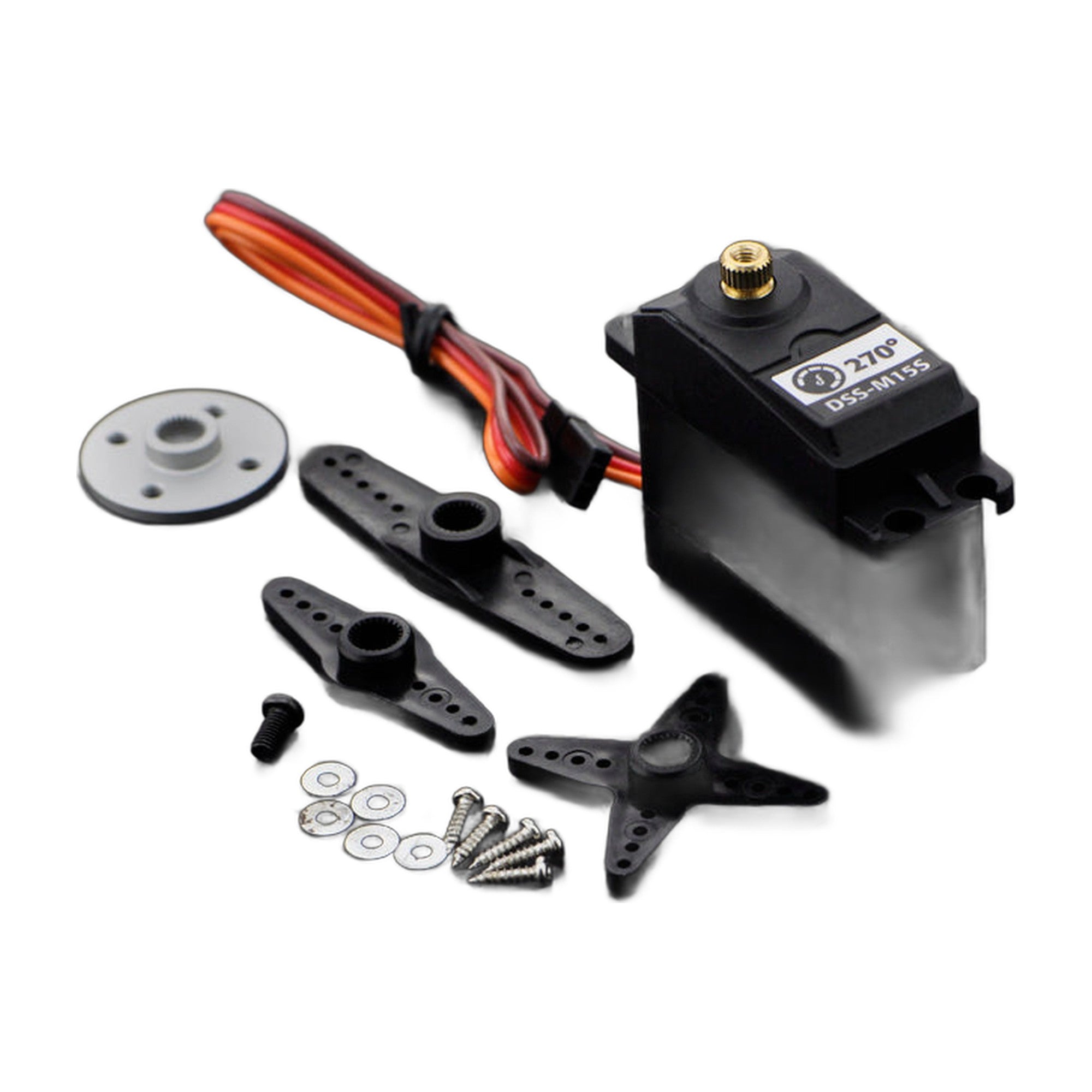

• DSS-M15S Servo x1
• Metal round servo horn x1
• X servo horn x1
• long straight servo horn x1
• Straight servo horn x1
• M2*8 self tapping screw x5
• M2 screw washer x5
• M3*6 screw x1
