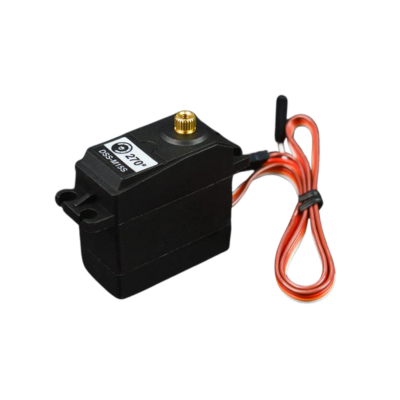

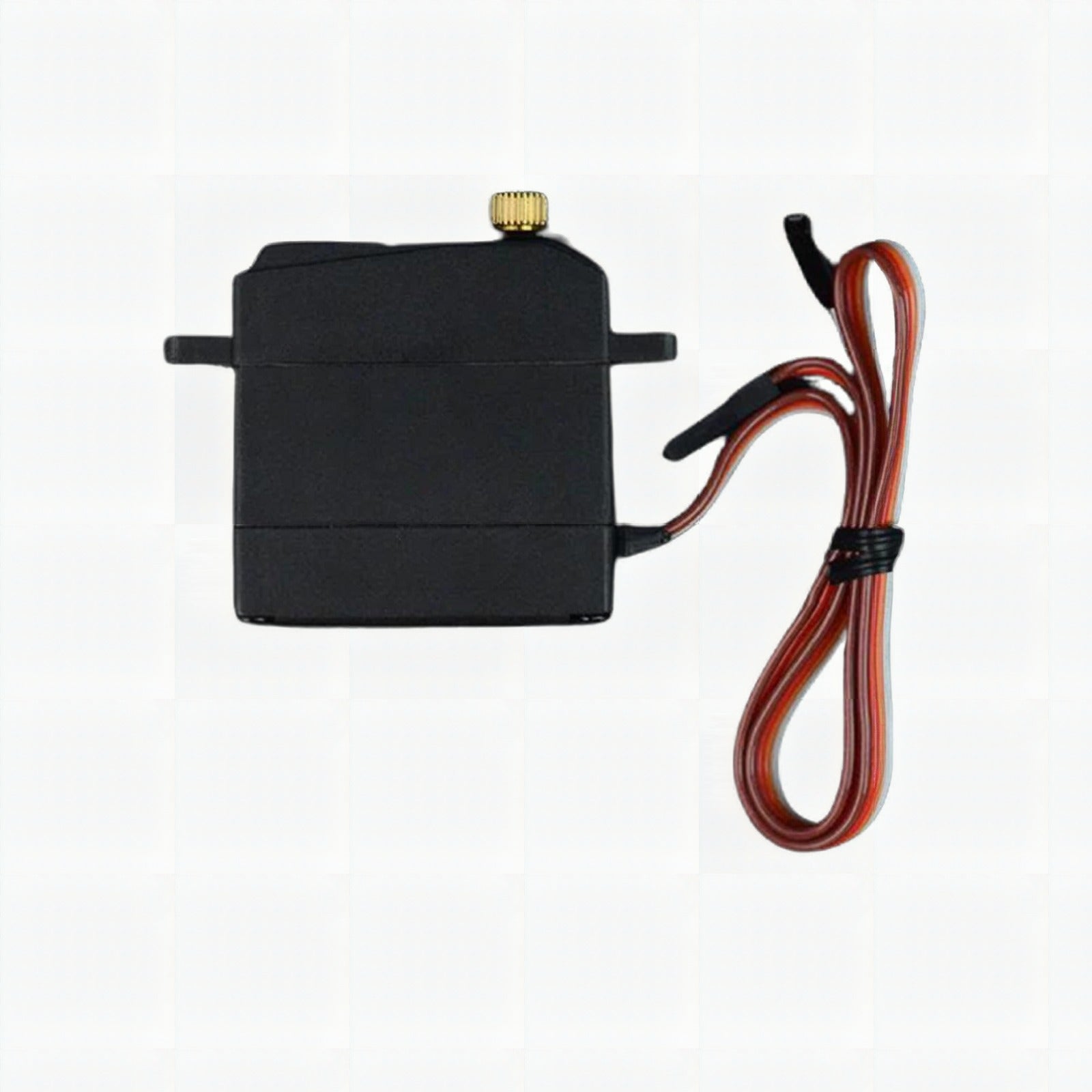

Servo DSS-M15S 270° 15KG DF Metal with Analog Feedback

DSS-M15S servos have been well received by customers in these years. It has extremely wide angle range control, huge load capacity and excellent quality. This DSS-M15S with analog feedback has broken its internal potentiometer signal. This is an analog signal with 0~3.3V feedback. You can connect it to MCU to realize close-loop feedback control.

DSS-M15S 270° Metal servo with feedback is compatible with Arduino Servo library. You can drive it with Arduino Board and read the angle value from analog side.

SPECIFICATION

• Electronic specifications

• Operating voltage: 4.8-7.2V

• 6V test environment

• Operating speed (no load): 0.18 sec/60 degrees

• Resting current: 80mA

• Locking torque: 13.5KG*cm

• Stall current: 1.8A

• Standby current: 4mA

• 7V test environment

• Operating speed (no load): 0.16sec/60 degrees

• Resting current: 100mA

• Locking torque: 15KG*cm

• Stall current: 2A

• Standby current: 5mA

• Mechanical specifications

• Gear material: metal gear

• Operating angle: 270 degrees

• Wiring gauge: 28PVC

• Data line length: 320mm

• Gear bracket spline: 25T/5.80

• Gear ratio: 310:1

• Size: 54.5*20*47.5mm

• Control specifications

• Feedback signal: 0-3.3V

• Control signal: RC PWM

• Pulse range: 500-2500 us

• Median signal value: 1500us

• Clockwise rotation: <1500us

• Control frequency: 50-330Hz (Arduion compatible)

DOCUMENTS

• Wiki


SHIPPING LIST

• DSS-M15S 270° servo with analog feedback x1

• Crossed horn x1

• Long straight horn x1

• Short straight horn x1

• M2*8 self-tapping screws and gasket x5

• M3*6 screw x1
