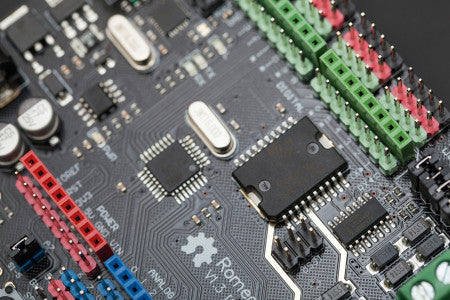

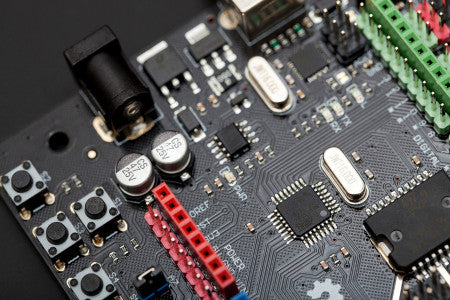

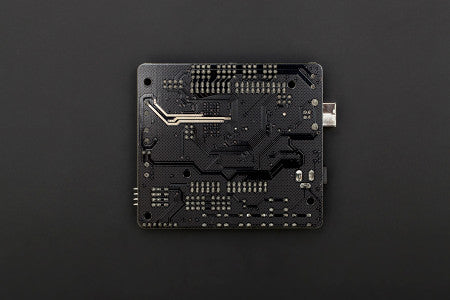

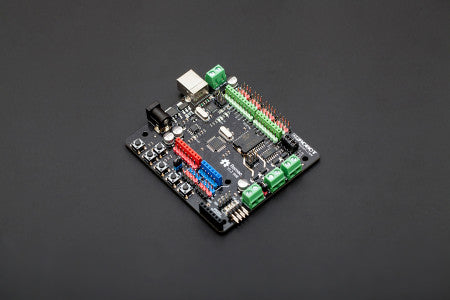

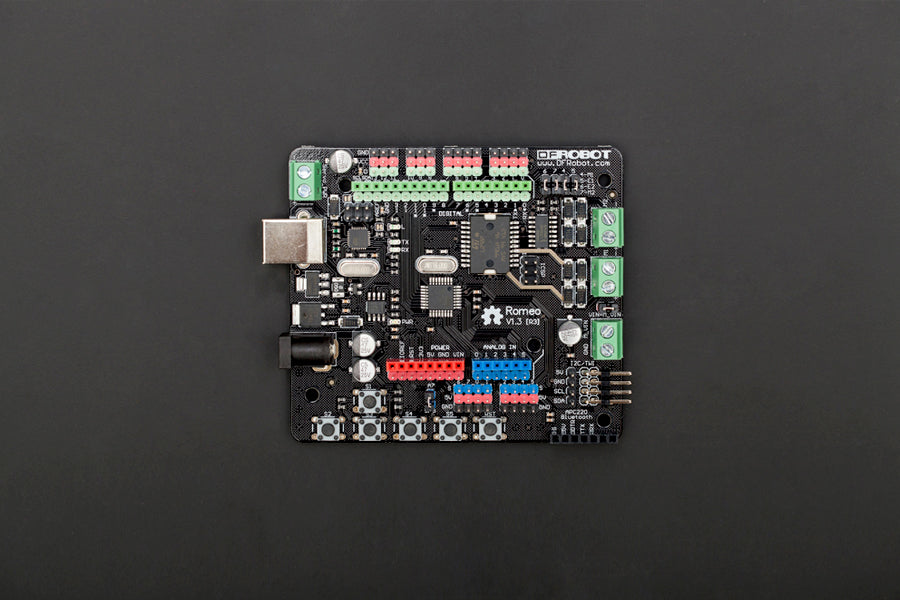

Romeo Arduino Robot Control Board with Motor Driver

Romeo Arduino Robot Control Board with Motor Driver -Romeo family is an All-in-One Robot control board especially designed for robotics applications from DFRobot.  It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your Arduino shields. The integrated 2 way DC motor driver and wireless socket allows you to start your own robot project immediately without the need for an additional motor driver.  Not just has the motor driver, Romeo is also designed to have extra power for servos which need more current.

Romeo is also featured with DFRobot's standard 3 Pin-out designed and compatible with Gravity series sensors and actuators. Hundreds of sensors are now plug-play with Romeo.

This is the first member in Romeo family that is born in 2009. It is not only the very first Arduino Robot Controller, but also the first Arduino-derived board in the market. The current version of Romeo is based on Arduino Uno. It has built in 2x2A DC motor drivers and socket for bluetooth / APC220 Radio Communication Module communications.  The integrated io sensor pinout allows it connect hundreds of different  Gravity compatible sensors and modules. It has servo connector which is a plug&play. It is the ideal controller to build your own robot.

Romeo All in One Robot Controller Board Review by Arnab Kumar Das

Frequently asked questions about Romeo Arduino Robot Control Board with Motor Driver

Q1: What is the Romeo Arduino Motor Driver Robot Control Board?

A microcontroller board based on the Arduino platform particularly created for robot control applications is called the Romeo Arduino Robot Control Board with Motor Driver. It has many analog and digital input/output pins as well as a twin H-bridge motor driver and several connection connectors.

Q2: The Romeo Arduino Robot Control Board with Motor Driver serves what purpose?

Romeo Arduino Robot Control Board with Motor Driver's function is to offer an intuitive platform for controlling a robot's motors and other accessories. It may be utilized to create a variety of robots, from basic line-following robots to sophisticated autonomous robots.

Q3: The Romeo Arduino Robot Control Board with Motor Driver uses what kind of microcontroller?

An ATmega328P microprocessor, also found in the Arduino Uno, powers the Romeo Arduino Robot Control Board with Motor Driver.

Q4: What is the Romeo Arduino Robot Control Board with Motor Driver's technical information?

The technical details of the Romeo Arduino Robot Control Board with Motor Driver are as follows:

  • Microprocessor ATmega328P
  • 5V DC for input voltage
  • Dual H-bridge motor driver with a 2A per channel

There are six analog inputs, fourteen digital I/O pins, six PWM channels, and three communication interfaces (UART, I2C, and SPI).

Q5: The Romeo Arduino Robot Control Board with Motor Driver is programmed using what programming language?

The Arduino programming language, which is based on C and C++, may be used to create programs for the Romeo Arduino Robot Control Board with Motor Driver.

Q6: What kinds of motors can the Romeo Arduino Robot Control Board with Motor Driver be used to control?

Stepper motors and DC motors may both be controlled by the Romeo Arduino Robot Control Board with Motor Driver.

Q7: Can I control servos with the Romeo Arduino Robot Control Board with Motor Driver?

The Romeo Arduino Robot operating Board with Motor Driver has PWM output channels that may be used to operate servos.

Q8: Do all versions of Arduino work with the Romeo Arduino Robot Control Board with Motor Driver?

Yes, all Arduino models that use the ATmega328P microprocessor are compatible with the Romeo Arduino Robot Control Board with Motor Driver.

SPECIFICATION

  • DC Supply:USB Powered or External 7V~12V DC
  • DC Output:5V /3.3V DC and External Power Output
  • Microcontroller: Atmega328
  • Bootloader: Arduino Uno
  • Compatible with the Arduino Uno pin mapping
  • 8 Channels 10-bit Analog I/O
  • USB interface
  • 5 key inputs
  • Auto sensing/switching power input
  • ICSP header for direct program download
  • Serial Interface TTL Level
  • Support Male and Female Pin Header
  • Integrated sockets for APC220 RF Module and DF-Bluetooth Module
  • Three I2C Interface Pin Sets(two 90°pin headers)
  • Two way Motor Driver with 2A maximum current
  • Gold plating pcb board
  • Size:90x80x14mm(3.54"x3.15"x0.55")
  • Weight:60 gram

QUICK LINKS:

Romeo Arduino Robot Control Board with Motor Driver

Romeo Arduino Robot Control Board with Motor Driver

Out of stock

Product Code

SKU:DFR0004

Regular price ₱ 1,427.00
Regular price Sale price ₱ 1,427.00
Sale Sold out
