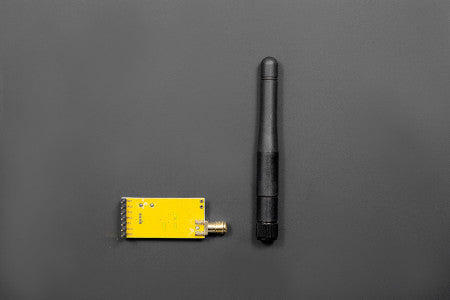

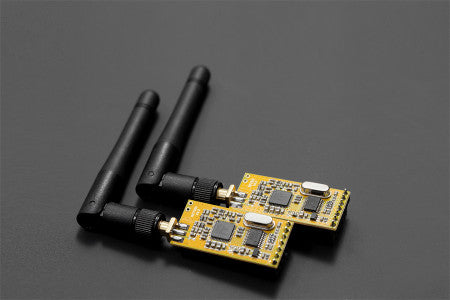

RF APC220 Radio Communication Module

The APC220 radio module is integrated with high speed MCU, low power semi-duplex transceiver and RF. One good asset of APC220 is that it has a high efficiency forward error correction. The anti-interference and sensitivity is improve greatly.

The APC220 is not only cost-effective but effective in transmitting information with large data buffer zone in more than 100 channels.

SPECIFICATION:

• Transmit data up to 1000m @9600 bps, Line of Sight
• Output power of 20 mW
• Frequency range of 418 mHz to 455 mHz
• 256 bytes data buffer

• High sensitivity (-112 dbm @9600 bps)

• GFSK modulation

• UART/TTL interface

• Embedded watch dog

• Dimension: 37 x 17 x 6.5 mm (1.46x 0.67x 0.26 in)

DOCUMENTS:

• User guide

• Datasheet

• Wiki Doc

• RF-Magic Configure software
