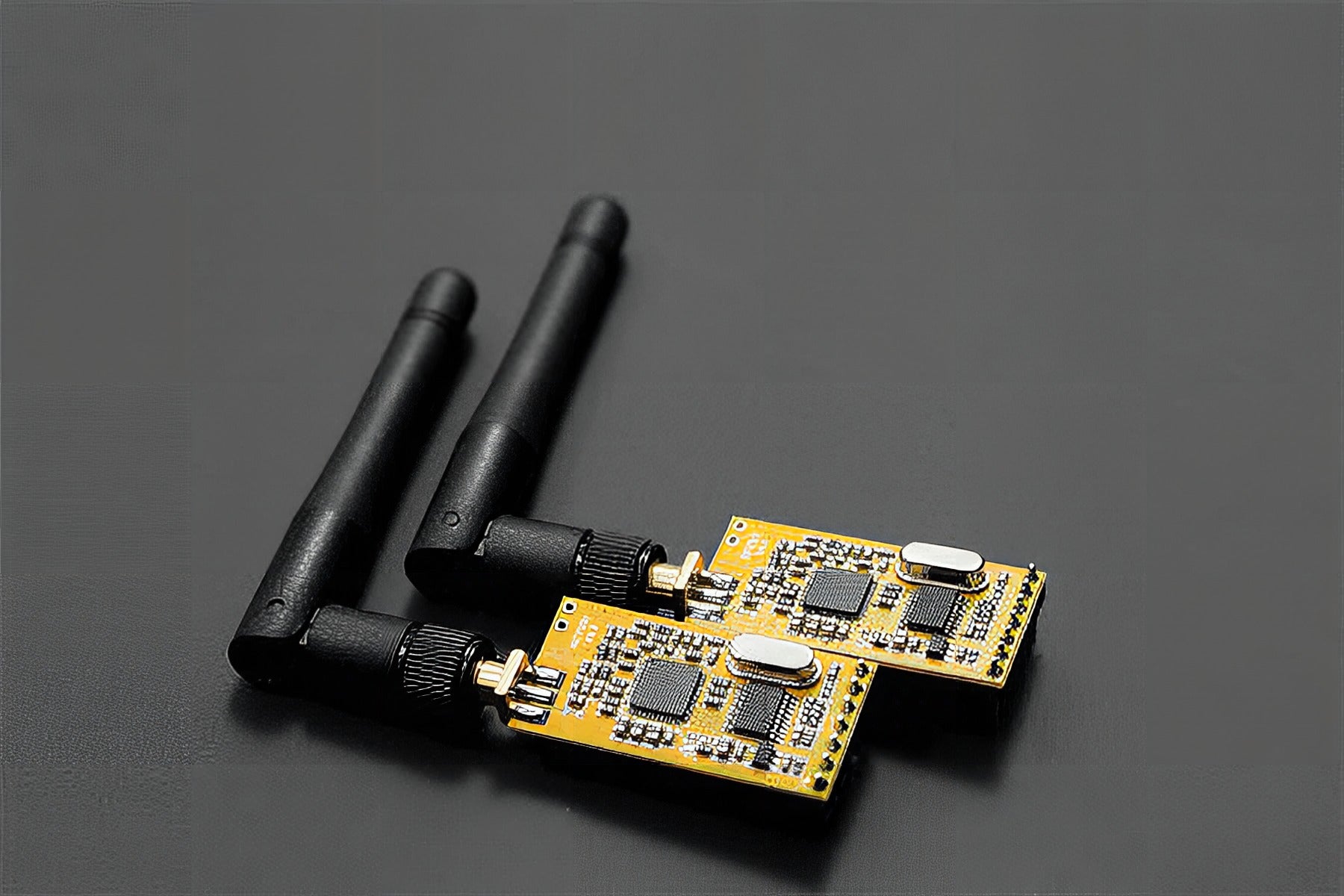

The APC220 radio module is integrated with high speed MCU, low power semi-duplex transceiver and RF. One good asset of APC220 is that it has a high efficiency forward error correction. The anti-interference and sensitivity is improve greatly.
The APC220 is not only cost-effective but effective in transmitting information with large data buffer zone in more than 100 channels.
SPECIFICATION:
- Transmit data up to 1000m @9600 bps, Line of Sight
- Output power of 20 mW
- Frequency range of 418 mHz to 455 mHz
- 256 bytes data buffer
- High sensitivity (-112 dbm @9600 bps)
- GFSK modulation
- UART/TTL interface
- Embedded watch dog
- Dimension: 37 x 17 x 6.5 mm (1.46x 0.67x 0.26 in)
DOCUMENTS:
SHIPPING LIST:
- APC220 module x2
- Antenna for radio communication x2
- USB to TTL Converter (CP210) x1
PROJECTS
-
Setting it up and initial testings ( Youtube )
