NFC RFID MFRC522 Reader Kit 13.56MHz

NFC RFID MFRC522 Reader Kit 13.56MHz - The NFC RFID MFRC522 Reader Kit 13.56MHz is a low-power RFID kit for Arduino. Here are the reasons why it comes with pretty much all standard Arduino starter kits. First. it uses an MFRC522 chip, a highly integrated reader/writer IC for contactless communication at 13.56 MHz with communication speed up to 424kbit/s. Second, it supports every card of the Mifare Line including Mifare1 S50, Mifare1 S70, Mifare Ultralight, Mifare Pro, and Mifare Desfire. Third, it is very economical and the included S50 cards provide good practice for industrial applications of RFID. So if you're planning to take your RFID knowledge to the next level, this here is a perfect item for you.

When it comes to describing the RFID – RC522 Reader, it is an awesome presentation of a proficient modulation and demodulation circuitry unit to support RF communication reliably at 13.56MHz. Furthermore, the S50 RFID cards let the process move smoothly and help clients involve critical parameters, and add the 13.56MHz RF transmission to the project under consideration.

Users will have the full freedom to integrate the modular perception alongside SPI to define new ways to communicate with microcontrollers. While monitoring the open-hardware community, it reveals multiple sorts of projects that can rejuvenate the RC522 – RFID communication tools using Arduino. Further, the MFRC522 is a dedicatedly crafted low-power kit specifically designed for Arduino. It extends exceptional support for all sorts of Arduino starter kits to promote confidence in beginners. One can obtain the preferred outcomes by integrating units in the right pattern and format.

RC522 RFID 13.56MHz Reader Writer Module – Description

While assembling Arduino projects, aspirants do some dedicated research to find relevant components that can obtain desired results. An Arduino is a multifarious approach to utilize various sorts of compartments and an RC522 RFID Card Reader is one of them.  An Arduino is a multifarious approach to utilize various sorts of compartments and an RC522 RFID Card Reader is one of them. It is a reader cum writer module that integrates an RC522 IC (Integrated Circuit) along with two S50 RFID cards.

Further, the right integration of multiple units can facilitate Arduino projects in the best way possible. The RFID Card is a comprehensive tool with superior transmission protocols to make your projects eligible for contact-less communications at 13.56MHz. Moreover, the card (RC522) comes to advocate ISO 14443A/MIFARE mode. It is a low-cost development based on MFRC522. The establishment is super-easy to use that can further be implemented across a wide range of applications.

Further, the right integration of multiple units can facilitate Arduino projects in the best way possible. The RFID Card is a comprehensive tool with superior transmission protocols to make your projects eligible for contact-less communications at 13.56MHz. Moreover, the card (RC522) comes to advocate ISO 14443A/MIFARE mode. It is a low-cost development based on MFRC522. The establishment is super-easy to use that can further be implemented across a wide range of applications.

RFID – RC522 Reader reflects a proficient modulation and demodulation algorithm to support RF communication effortlessly at 13.56MHz.Likewise, the S50 RFID cards smoothen the process and help clients learn and add the 13.56MHz RF transmission in the given project. Users will have the liberty to implement the module alongside SPI to create ways to communicate with microcontrollers. Users will have the liberty to implement the module alongside SPI to create ways to communicate with microcontrollers. When it comes to analyzing the open-hardware community, it features several types of projects exploiting the RC522 – RFID communication tools using Arduino.

The RC522 Reader Writer Module can be a perfectly-crafted tool that can help clients produce desired results while assembling Arduino projects. It is the appropriate framework with relatively productive components to facilitate the superior transmission of data at 13.56 MHz. further, the cheap form of tools is quite easy and simple to manage across several types of applications and other units.

Highly integrated Card Reader with Contactless Communication Considerations

RC522 RFID is an absolute presentation of high integration in the industry. The card reader can function on contactless 13.56MHz communication to serve users in composing a varied range of Arduino projects. Further, the module is drafted by NXP by infusing creative features to make it low-power consumption, compact, and constricted size alongside low-cost profiles. The chip brings read-and-write integrations that make it the topmost choice to assemble smart meters as well as portable hand-held equipment.

NFC (Near Field Communication) is a versatile medium under which two devices are kept close to perform communication. It signifies a sort of like with a shorter range of Bluetooth that also doesn’t need authentication in the whole phenomenon. Since it works as an extension of RFID, users are eligible to do anything with RFID that can be done with NFC.

NFC (Near Field Communication) is a versatile medium under which two devices are kept close to perform communication. It signifies a sort of like with a shorter range of Bluetooth that also doesn’t need authentication in the whole phenomenon. Since it works as an extension of RFID, users are eligible to do anything with RFID that can be done with NFC.

One of the top qualities it implies is that it can read and write tags. Users can use the project for RFID-tag integrations. MFRC522 aids the MIFARE series to ensure high-speed contactless communication alongside showing a duplex communication speed range of up to 424kb per second.

Specifications:

  • Operating Current :13-26mA/DC 3.3V
  • Idle Current :10-13mA/DC 3.3V
  • Sleep Current: <80uA
  • Peak Current: <30mA
  • Operating Frequency: 13.56MHz
  • Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
  • Environmental Operating Temperature: -20-80 degrees Celsius
  • Environmental Storage Temperature: -40-85 degrees Celsius
  • Relative humidity: relative humidity 5% -95%
  • Reader Distance: ≥50mm/1.95"(mifare 1 )
  • Module Size: 40mm×60mm/1.57*2.34"
  • Module interfaces SPI Parameter
  • Data transfer rate: maximum 10Mbit/s

Features:

  • MF RC522 is applied to the highly integrated read and write.
  • 13.56MHz contactless communication card chip.
  • The low-voltage, low-cost, small size of the non-contact card chip to read and write.
  • Smart meters and portable handheld devices developed better choices.
  • The MF RC522 uses advanced modulation and demodulation concepts completely integrated into all types of 13.56MHz passive contactless communication methods and protocols.
  • 14443A compatible transponder signals.
  • The digital part to handle the ISO14443A frames and error detection.
  • support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
  • MFRC522 support the MIFARE series of high-speed non-contact communication, a two-way data transmission rate up to 424kbit/s.
  • MF RC522 is similar to MF RC500 MF RC530 , but also has characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.
  • The MF522-AN module design circuit card reader, is easy to use.
  • Low cost, and applies to the user equipment development.
  • The reader and advanced applications development meet the user RF card terminal design/production needs.
  • This module can be directly loaded into the various reader molds, very convenient.
Library: https://github.com/miguelbalboa/rfid

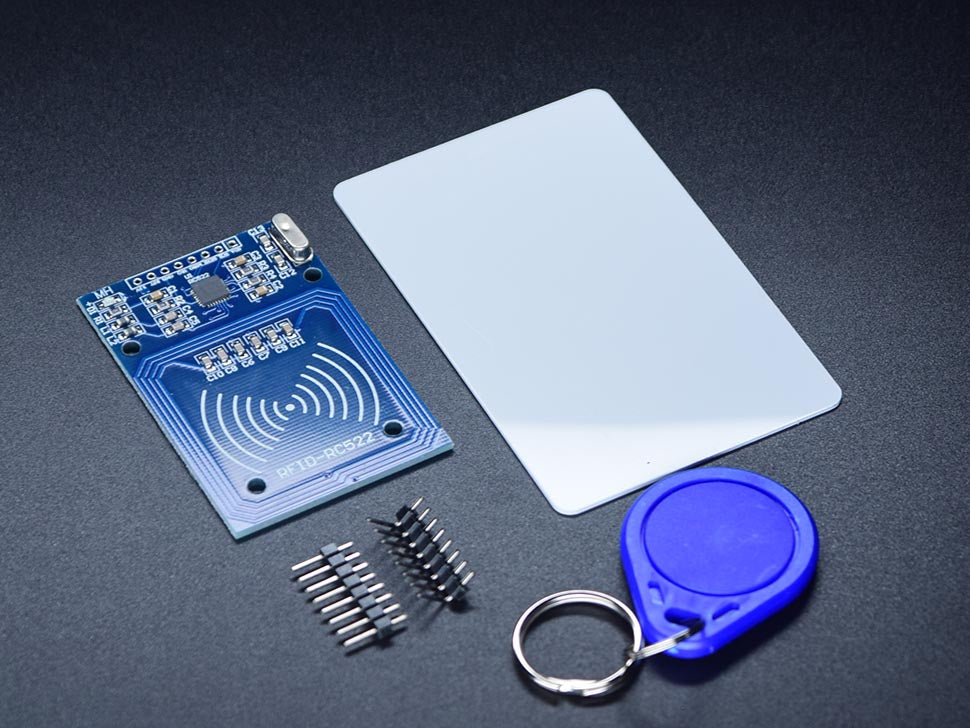

Inclusions:

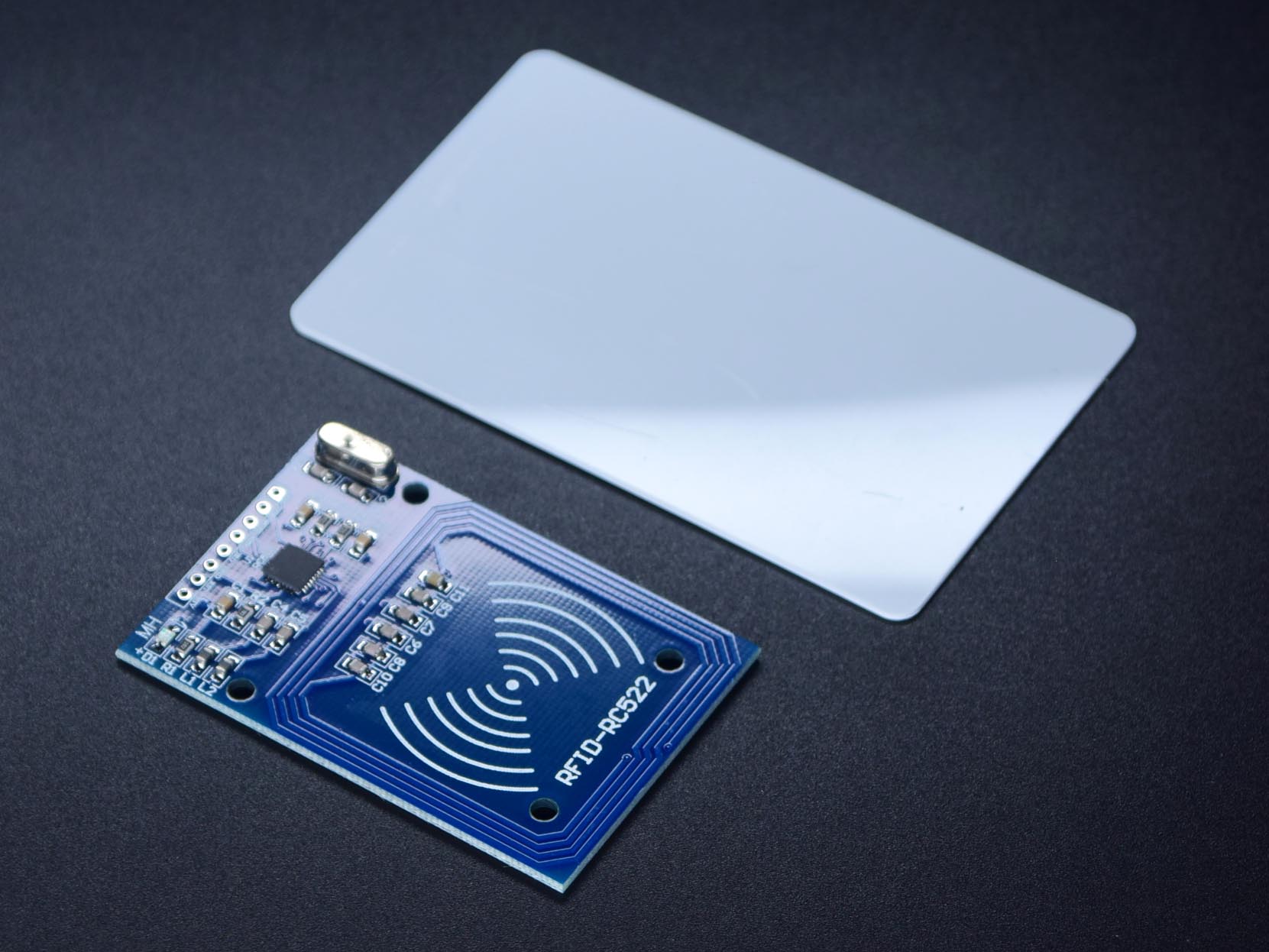

  • 1 x A RFID-RC522 Module
  • 1 x The Standard S50 Blank Card

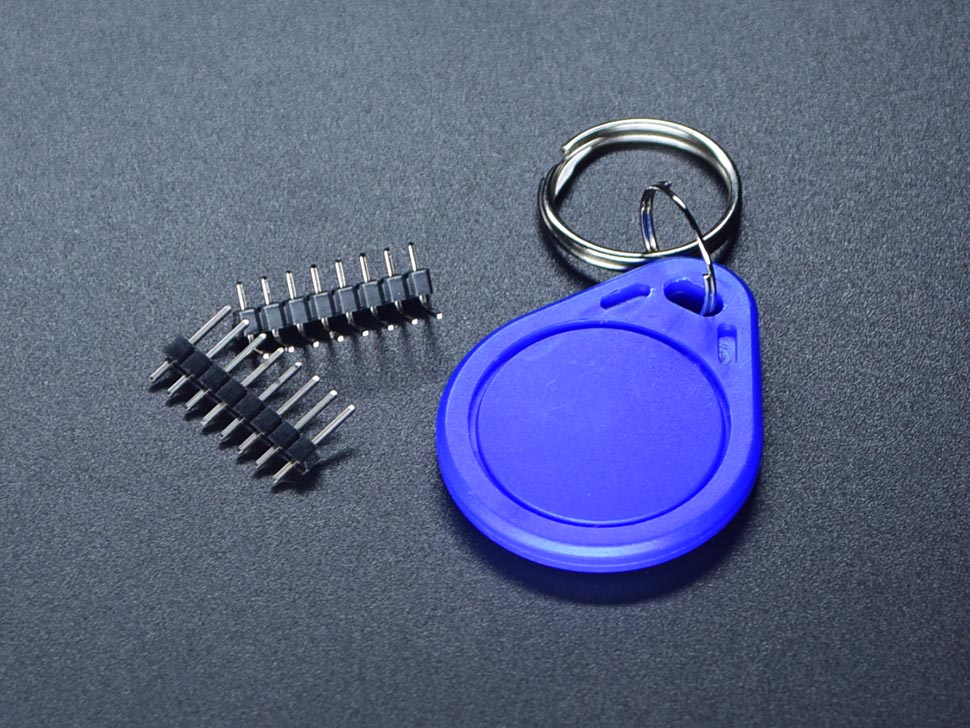

  • 1 x S50 special-shaped card (as shown by the key ring shape)
  • 1 x straight Pin
  • 1 x Curved Pin

Documents:

Tutorials:
