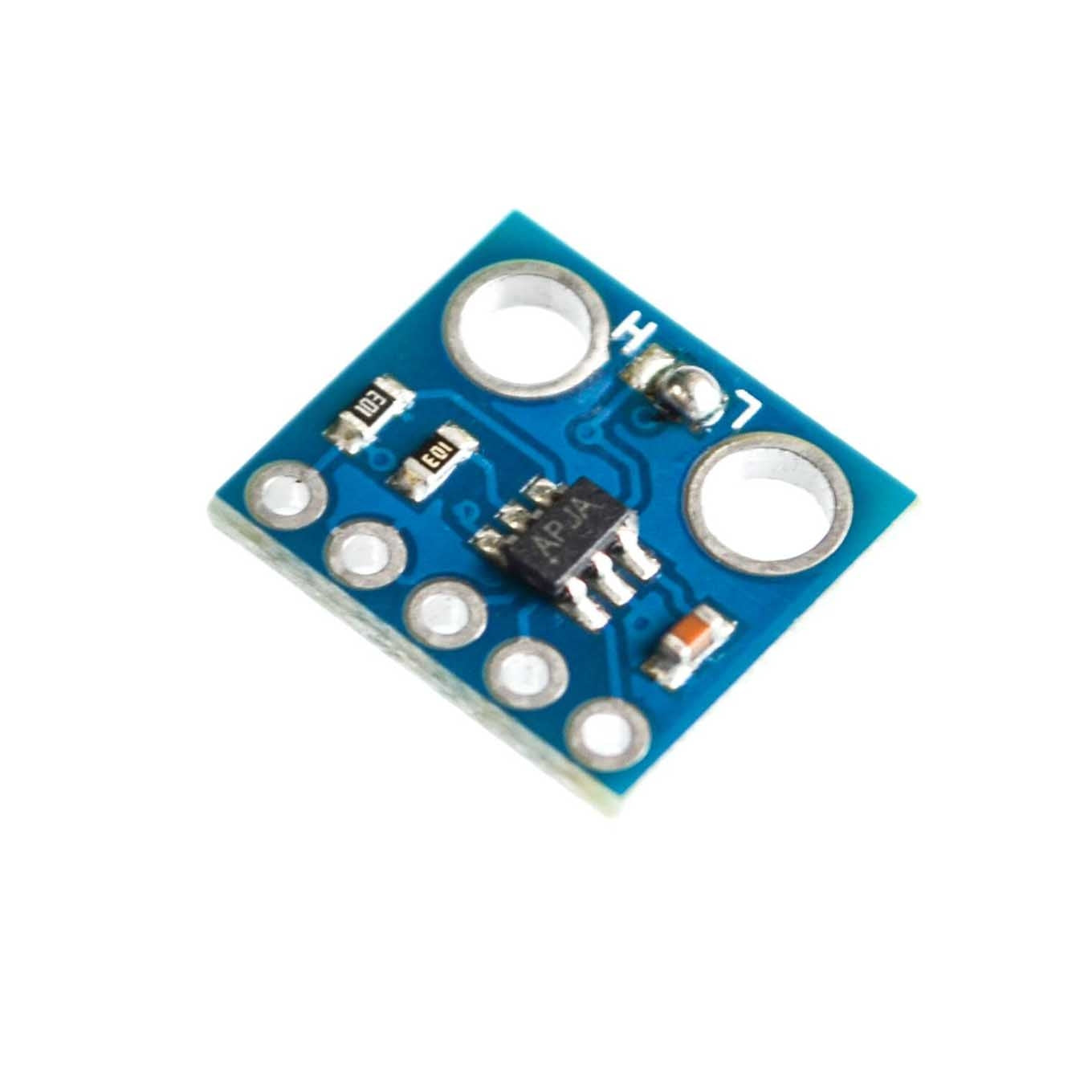

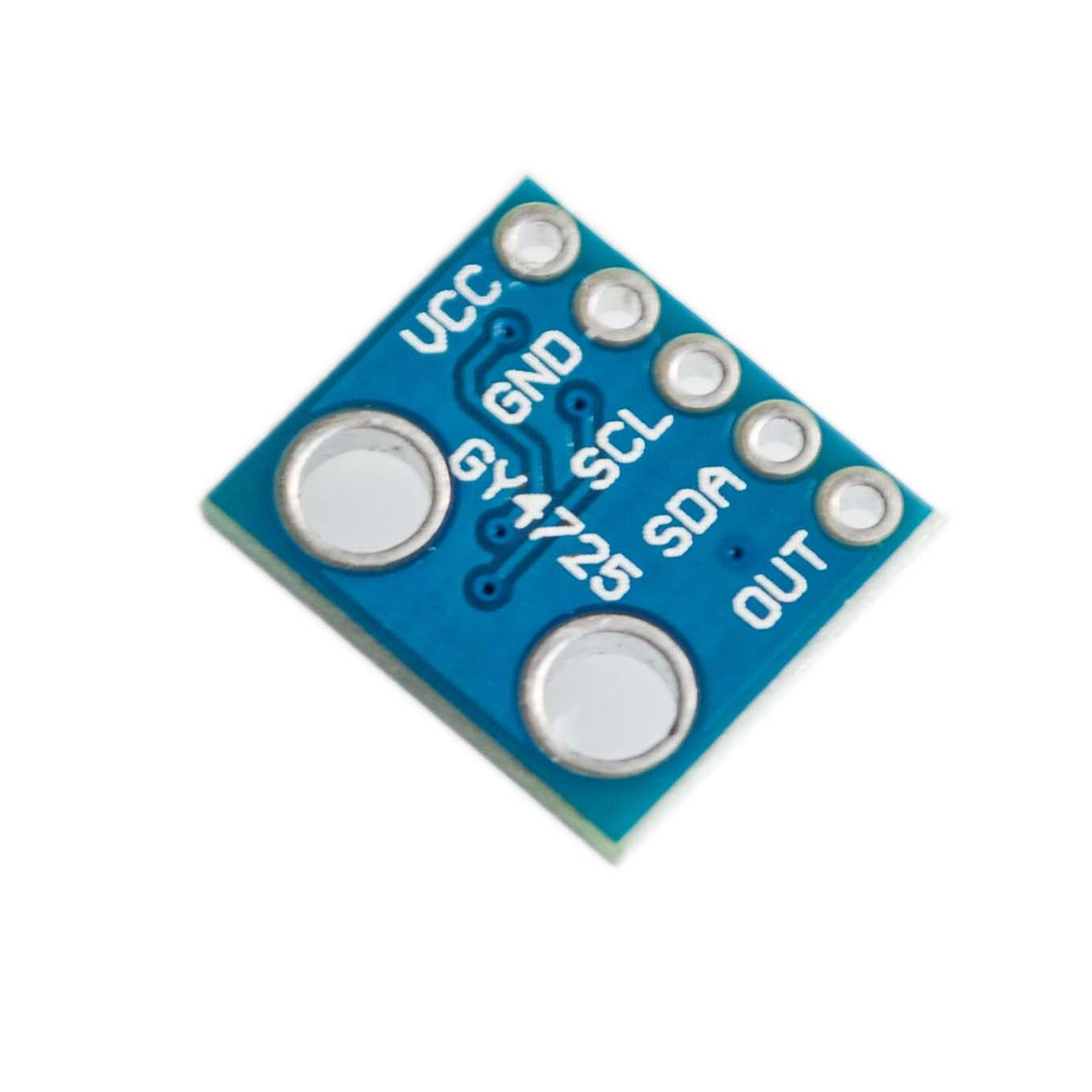

MCP4725 Breakout Board 12-Bit DAC w/I2C Interface


DACs (Digital to Analog Converters) are not as common as ADCs (Analog to Digital Converters) in a microcontroller. That is why we have this MCP5725-based 12-bit DAC module to compensate. You can control it using the I2C protocol, which only requires two wires for data transmission. Moreover, the chip has an EEPROM, so if you write the output voltage, you can 'store it,' so if the device is power cycled, it will restore that voltage. DACs are great for improving audio and video output.


Specifications:

  • This board/chip uses an I2C 7-bit address between 0x62-0x63, selectable with jumpers.
  • Input: 3-5V

Library: https://github.com/adafruit/Adafruit_MCP4725

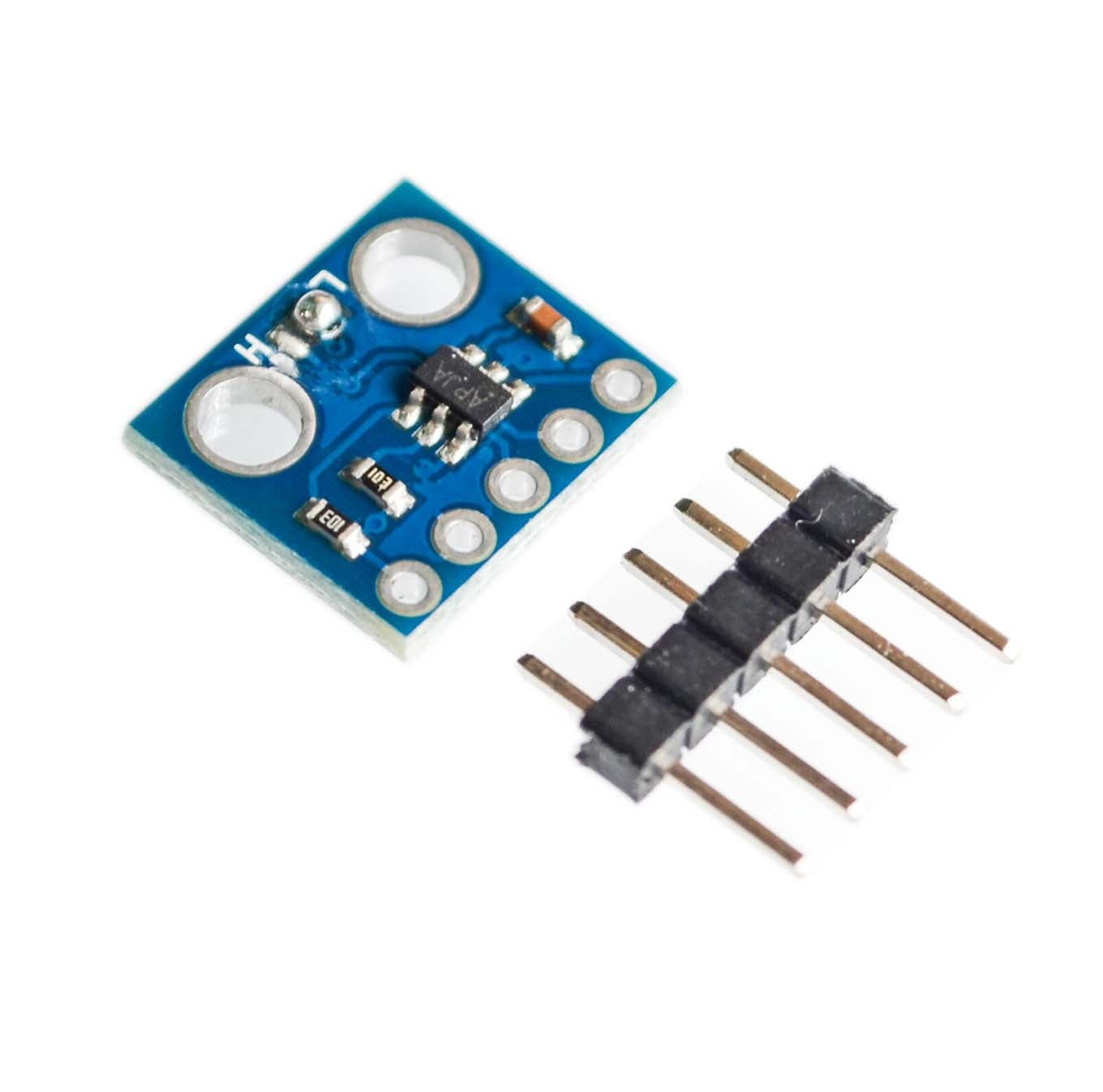

Inclusions: 1 x MCP4725 Breakout Board 12-Bit DAC w/I2C Interface

Documents:

MCP4725 Breakout Board 12-Bit DAC w/I2C Interface

MCP4725 Breakout Board 12-Bit DAC w/I2C Interface

Low stock: 8 left

Product Code

SKU:AB136

Regular price ₱ 265.00
Regular price Sale price ₱ 265.00
