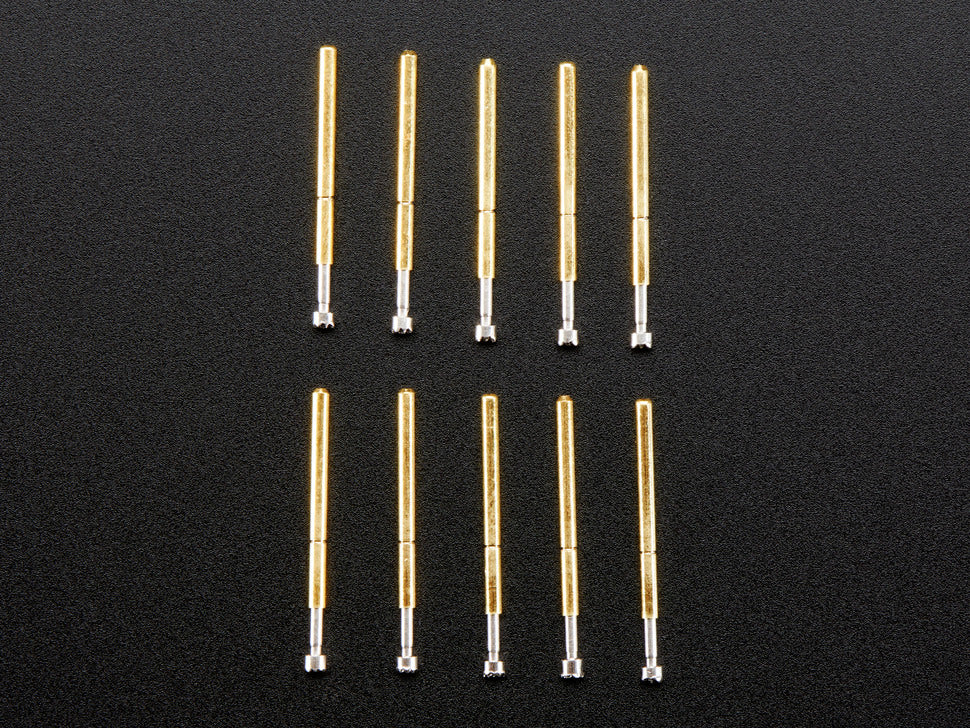

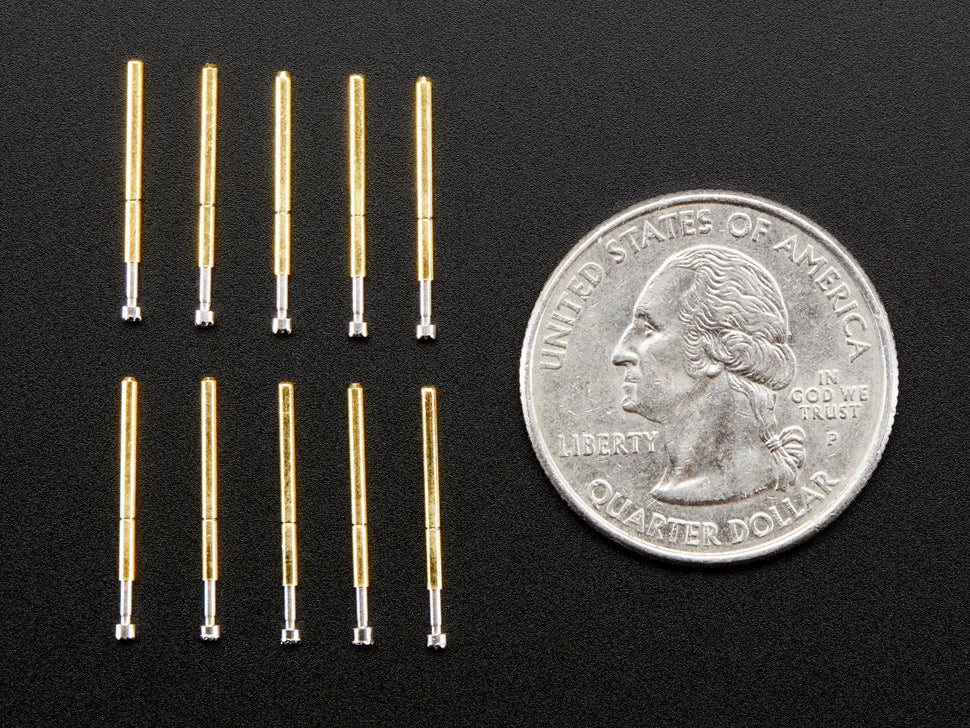

Pogo Pins "Crown Head" (10 pack) - P75-H2


Pogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts. We use them by the dozen for making programming and testing jigs but they're handy also if say you want to JTAG program a board that you cant solder headers to - just shove these thin contacts into a 0.1" pitch IDC programming cable and press it onto the contacts.

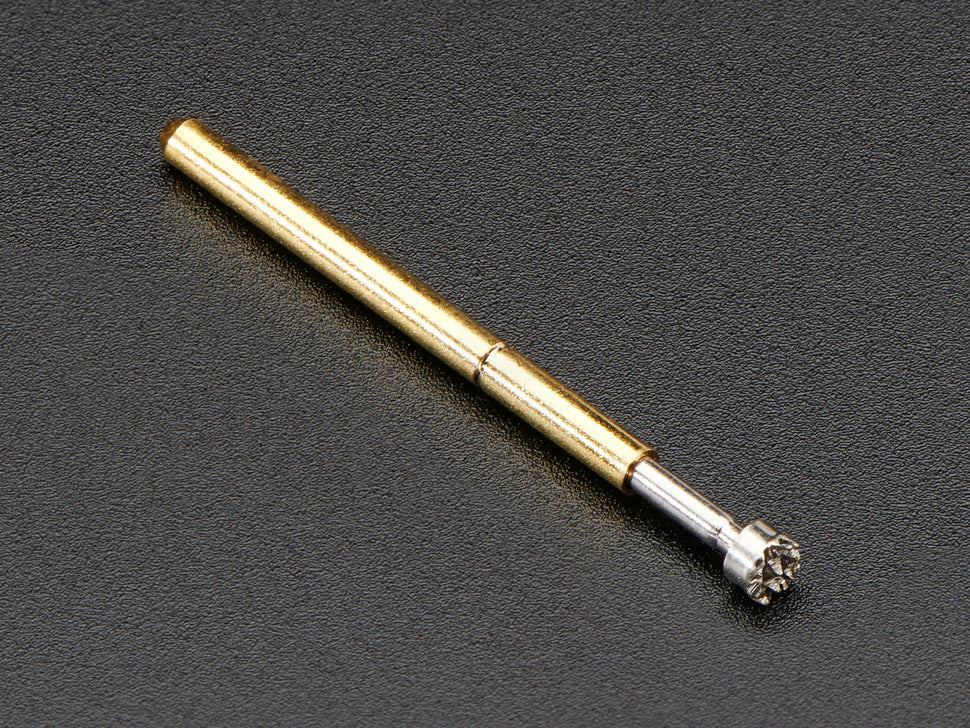

These particular pins are (in our opinion) ideal because they are skinny enough to fit into most proto board or perf board - they have a 1.0mm/0.04" diameter body (the gold part) but the spring contact head is 1.3mm (0.05") wide. The uncompressed length is 16.5mm/0.65", compressed is 14.2mm/0.56"

TECHNICAL DETAILS

  • Diameter (body): 1mm / 0.04"
  • Diameter (spring contact head): 1.3mm / 0.05"
  • Uncompressed Length: 16.5mm / 0.65"
  • Compressed Length: 14.2mm / 0.56"

Pogo Pins "Crown Head" (10 pack) - P75-H2

Pogo Pins "Crown Head" (10 pack) - P75-H2

Low stock: 1 left

Product Code

SKU:2687

Regular price ₱ 345.00
Regular price Sale price ₱ 345.00
