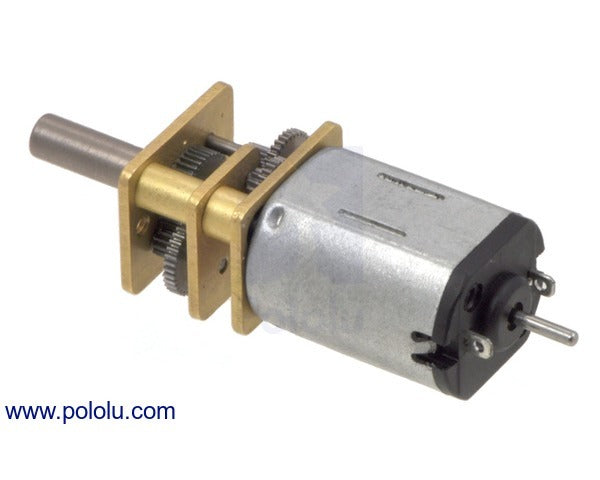

Micro Metal 50:1 Gearmotor HP 6V with Extended Motor Shaft
Overview

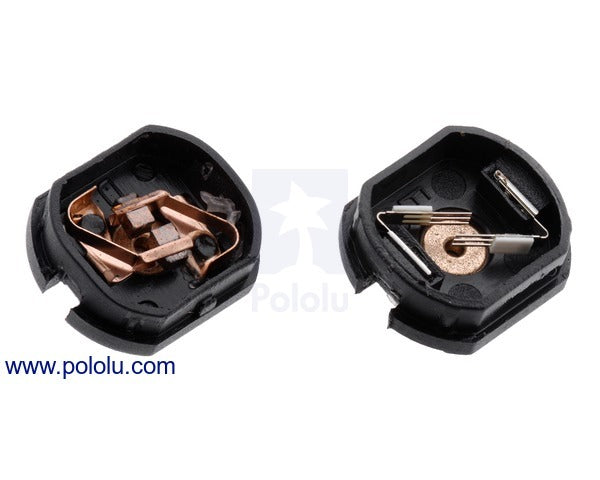

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

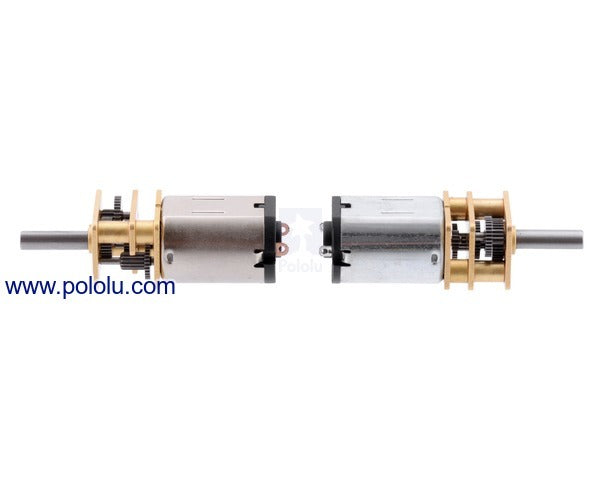

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).
DIMENSIONS:
- Size: 10 × 12 × 26 mm1
- Weight: 9.5 g
- Shaft diameter: 3 mm2
GENERAL SPECIFICATIONS:
- Gear ratio: 51.45:1
- Free-run speed @ 6V: 630 rpm
- Free-run current @ 6V: 120 mA
- Stall current @ 6V: 1600 mA
- Stall torque @ 6V: 15 oz·in
- Extended motor shaft?: Y
- Motor type: 1.6A stall @ 6V (HP 6V)
Notes:
1 Output shafts add 14 mm to the 26 mm length.
2 D shaft.
