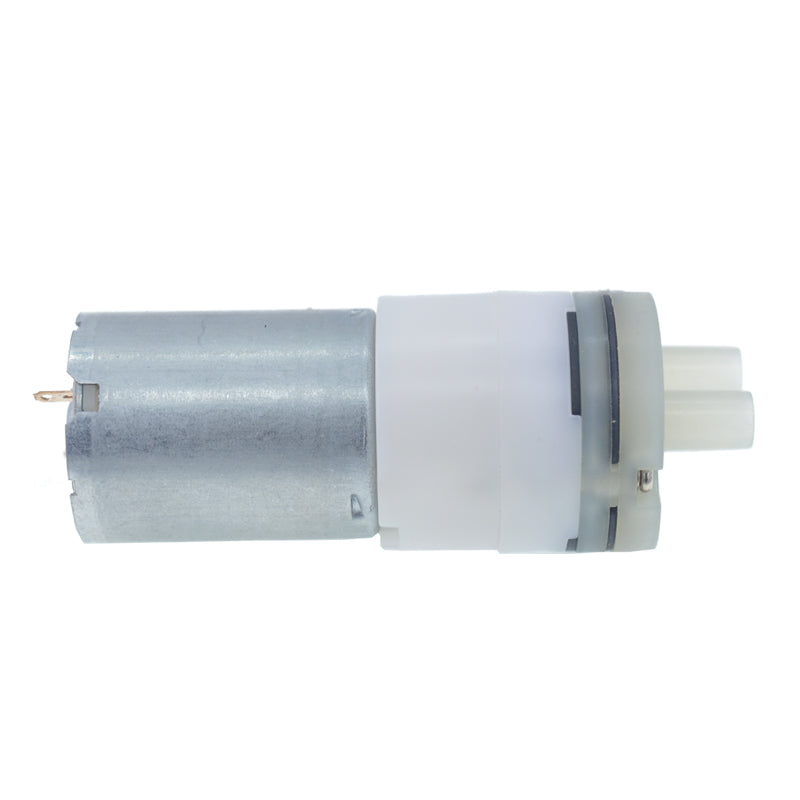

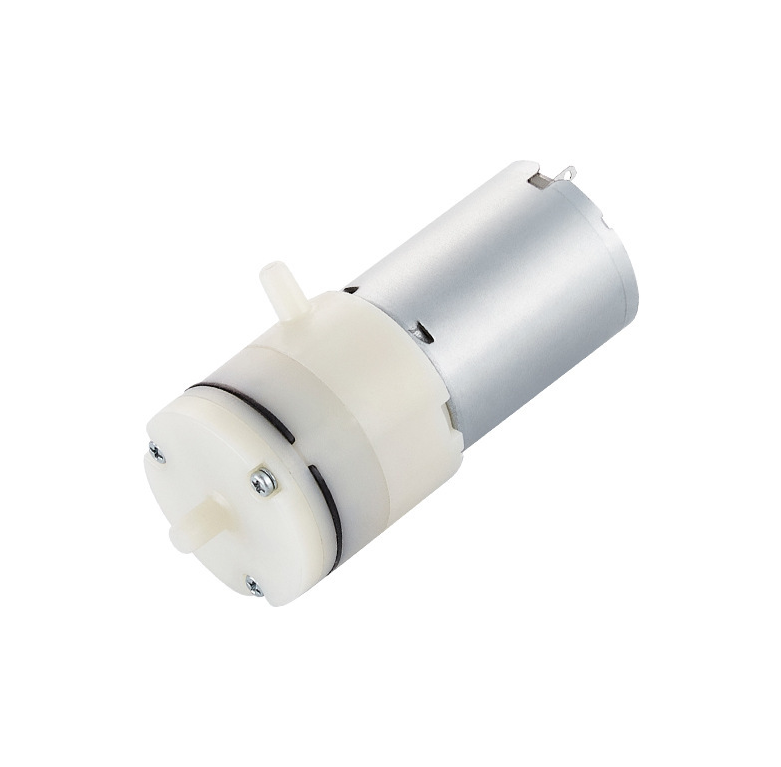

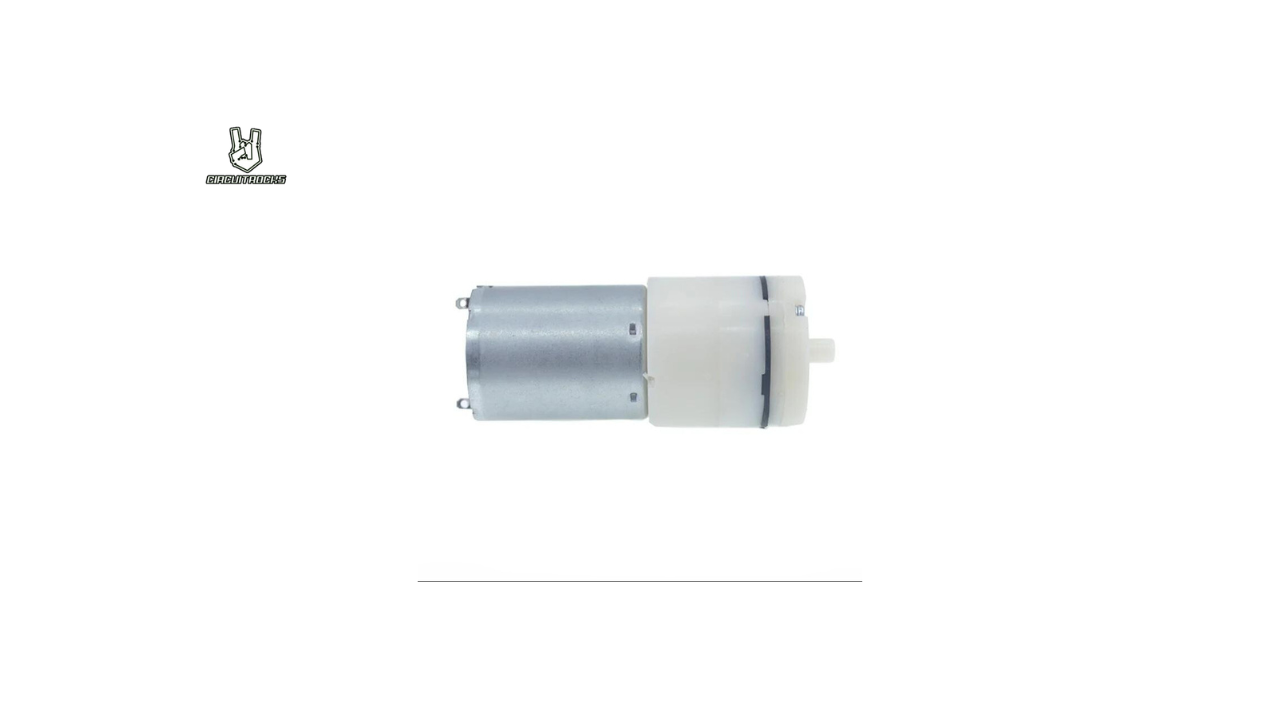

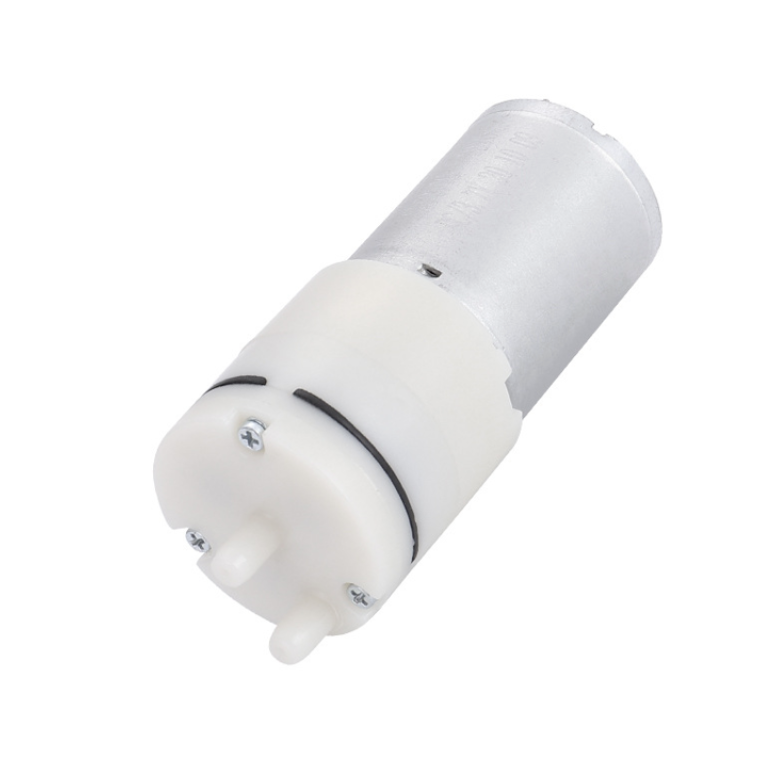

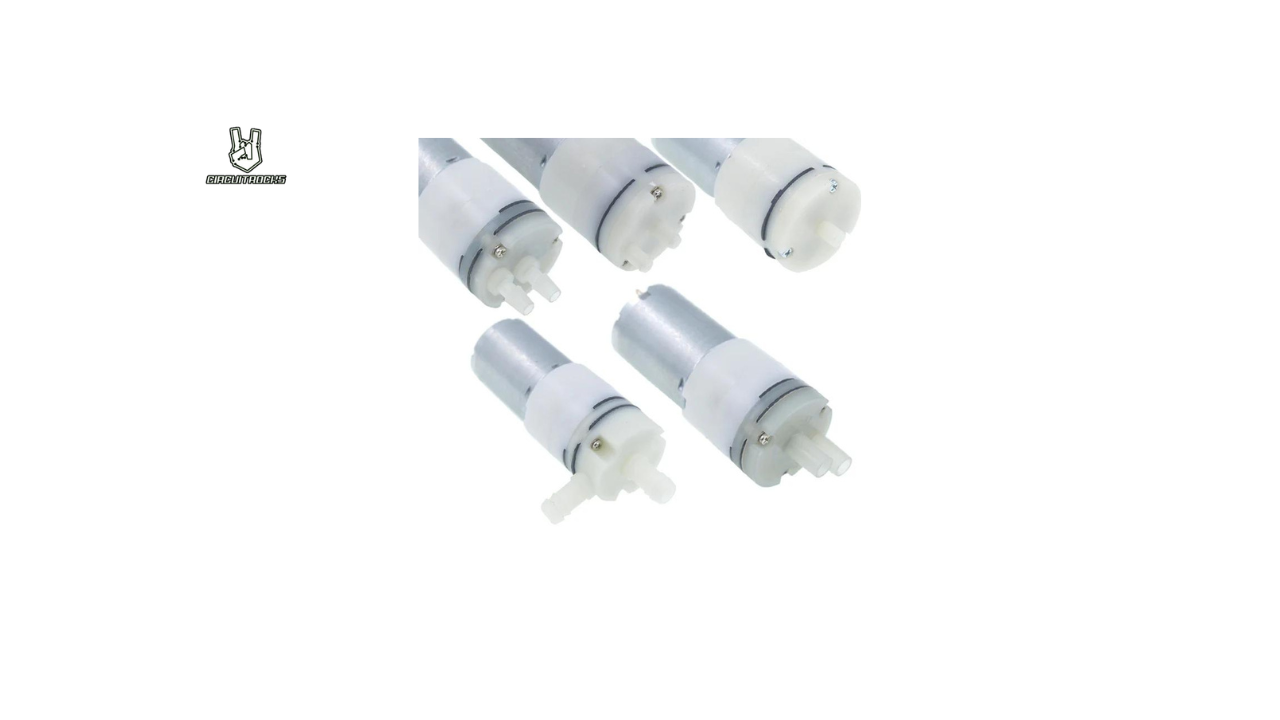

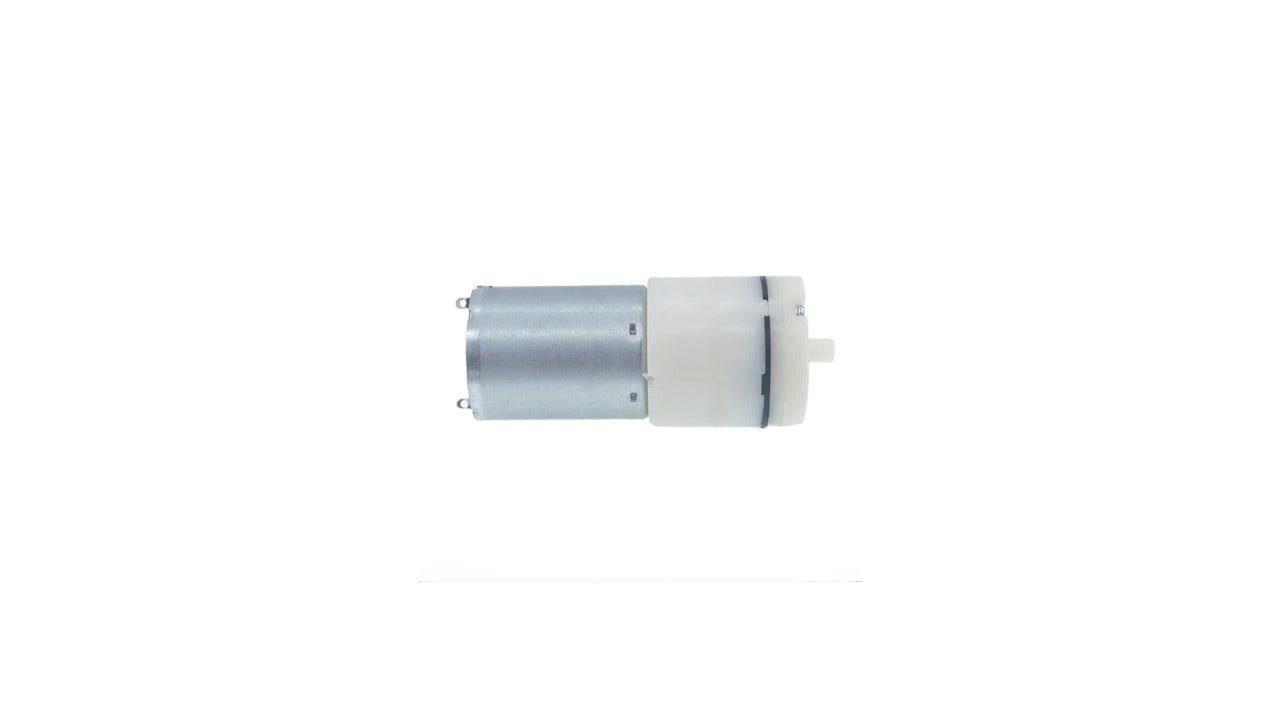

370-series mini motor pump in several head configs. Pick the one that matches your job, from moving air to circulating water to pulling a vacuum. Small enough for DIY builds and tight spaces.

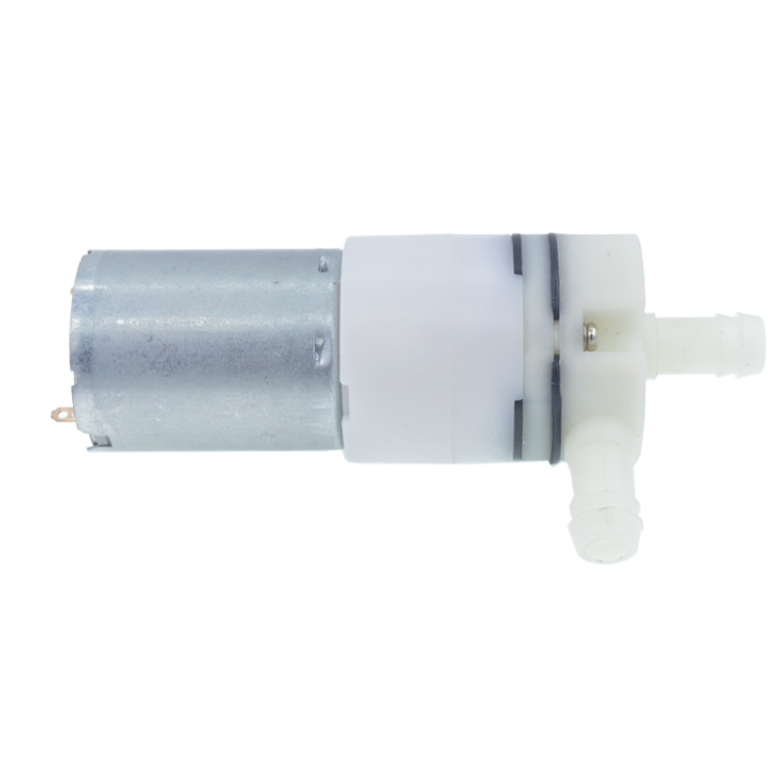

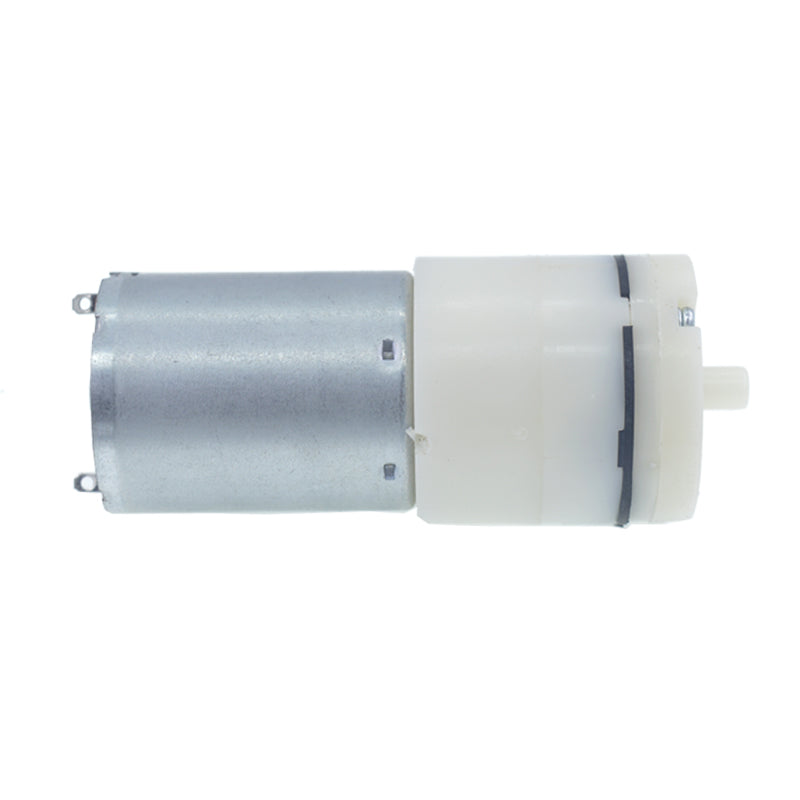

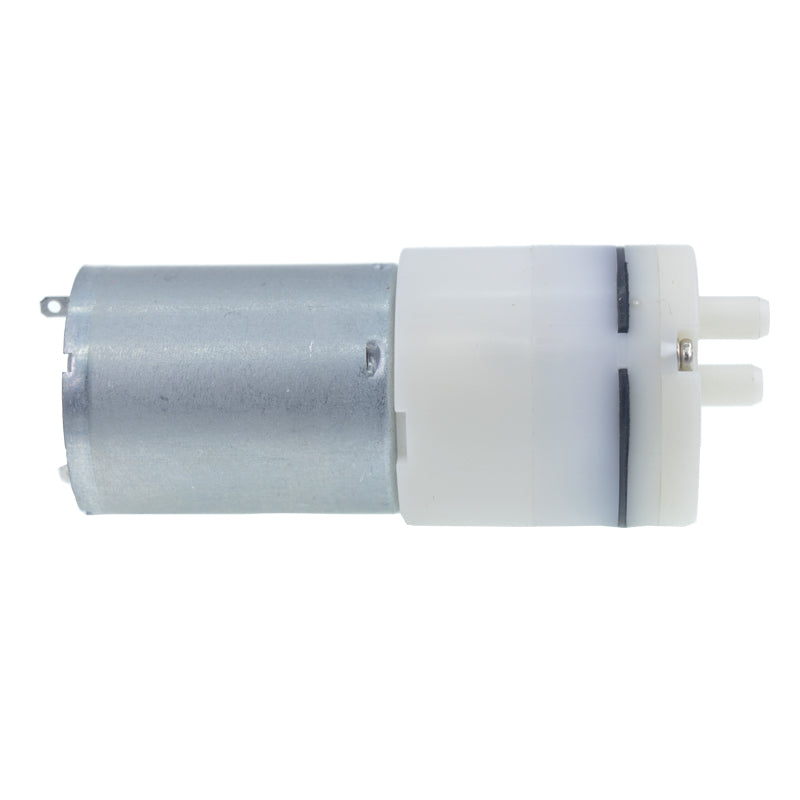

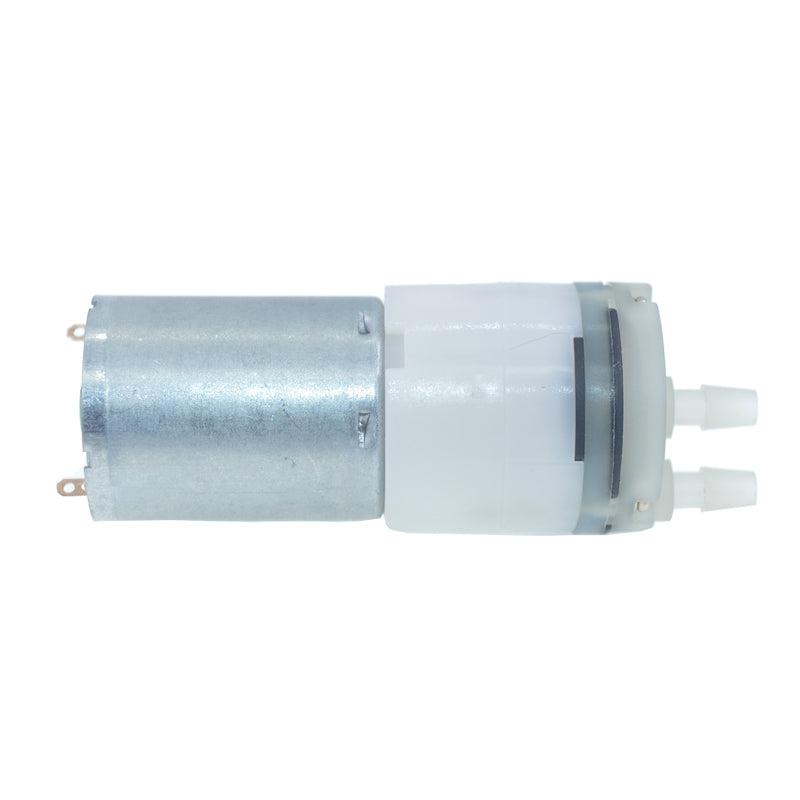

Air pump for inflating and aerating. Vacuum and negative-pressure for pulling gas from a sealed space. Water heads (side, side-output, double-head) for transfer and circulation.
Specs
| Rated voltage | DC 6/12/24V |
| Rated current | <1200mA / <600mA / <350mA |
| Water flow | 0.5 to 1.5 L/min |
| Pressure | >30 PSI |
| Noise | <65 dB |
| Power | 3W |
| Variants | Air, vacuum, double-head, side-head water, double-head 6.5mm water, side-output vacuum, negative pressure |
Match the head to the fluid: air pumps aren't for liquids, water heads aren't for gas.
