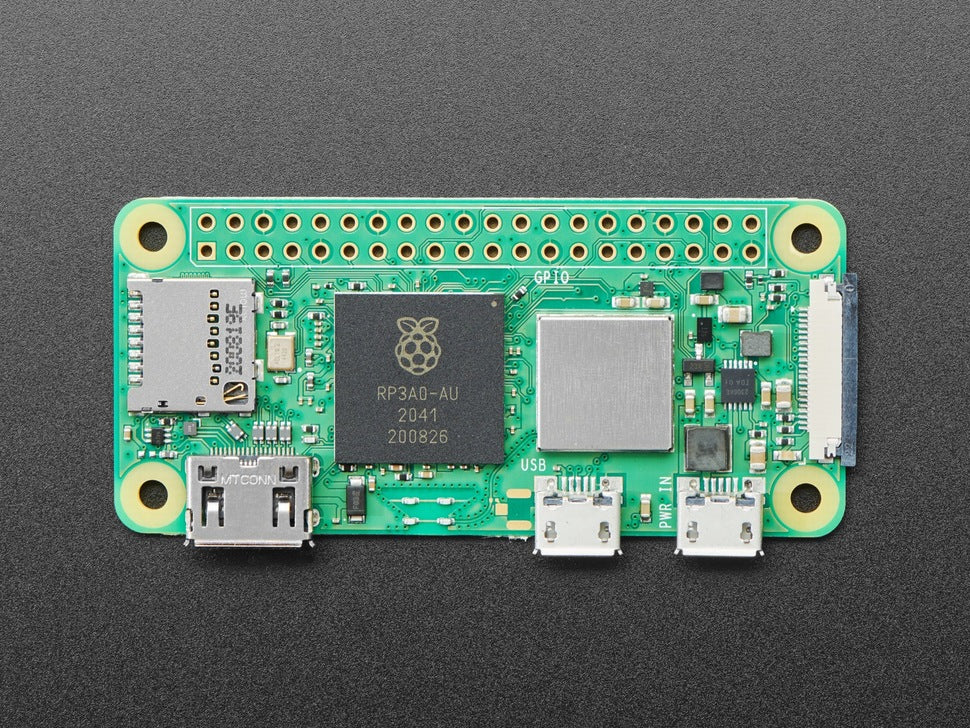

Raspberry Pi Zero 2 W — Tiny Quad-Core Wi‑Fi Board for Serious IoT Builds

The Raspberry Pi Zero 2 W takes the familiar Zero footprint and upgrades it with a quad‑core 64‑bit Arm Cortex‑A53 CPU and 512 MB RAM. You get a real Linux computer that fits behind a small display, inside compact enclosures, or on the back of a robot—without sacrificing wireless connectivity or flexibility.

Use it for IoT gateways, camera nodes, home‑lab utilities, or embedded dashboards where you want more performance than the original Zero W but still need a slim and power‑efficient board. The huge Raspberry Pi software ecosystem means you can reuse many existing tutorials, images, and libraries.

Why makers like the Zero 2 W

• Big performance in a small board: Quad‑core Cortex‑A53 @ 1 GHz with in‑package LPDDR2 RAM gives a big speed boost over the original Zero.
• Wireless on board: 2.4 GHz 802.11b/g/n Wi‑Fi and Bluetooth 4.2/BLE for cloud dashboards, MQTT, and mobile apps.
• Drop‑in mechanical upgrade: Same size and mounting holes as Zero / Zero W so it works with many existing cases and mounts.
• Camera‑ready: CSI‑2 camera connector for IP cameras, time‑lapse rigs, smart door viewers, and computer‑vision experiments.
• GPIO for hardware people: 40‑pin HAT‑compatible GPIO header footprint for sensors, HATs, and custom PCBs.

Typical projects and use cases

• Compact IoT gateways: Run MQTT brokers, Home Assistant add‑ons, or small Node‑RED flows at the network edge.
• Camera and vision projects: Build door cameras, plant‑growth time‑lapse rigs, and lightweight OpenCV experiments.
• Utility boxes and dashboards: Monitor 3D printers, servers, or routers with a small HDMI or SPI display.
• Retro gaming and media: Create ultra‑portable emulation boxes or digital signage that run quietly on 5 V power.
• Embedded controllers: Integrate the Zero 2 W inside products and prototypes as a flexible control and connectivity brain.

Starter bundles

• Zero 2 W basic kit: Board + 5 V micro‑USB power supply + 16 GB microSD card + mini HDMI adapter.
• Camera kit: Add a Raspberry Pi camera module, flex cable, tripod or bracket, and a weather‑aware case if needed.
• IoT lab starter: Zero 2 W + sensor pack + small OLED/LCD for local dashboards and status screens.

Recommended add‑ons

• 5 V micro‑USB power supply (2 A or higher, stable under load).
• Class 10 microSD card with Raspberry Pi OS or other lightweight images.
• Raspberry Pi Zero / Zero 2 W case or slim mounting plate.
• Mini HDMI to HDMI cable and USB OTG cable for keyboard, mouse, and USB accessories.
• 40‑pin header kit or pre‑soldered header if you need easy GPIO access.

Technical specifications

Specifications are summarized for quick reference; minor revisions may exist between board batches.

Pinout & power notes

• 3.3 V GPIO only: Level‑shift any 5 V signals before they touch the pins.
• Stable power: If you add USB devices, cameras, or HATs, use a good‑quality 5 V supply to avoid brownouts.
• Thermals: In very tight or warm enclosures, a small heatsink or careful ventilation can help under sustained load.

What’s in the box

• 1 × Raspberry Pi Zero 2 W board (no pre‑soldered GPIO header)

FAQ

Is this compatible with existing Raspberry Pi Zero / Zero W cases?

Yes. Raspberry Pi Zero 2 W shares the same footprint as older Zero boards, so most cases, mounts, and pigtail kits still fit.

Can I run this headless without a monitor?

Absolutely. Many users run it headless over Wi‑Fi using SSH, web dashboards, or remote desktop. Just enable SSH and Wi‑Fi on the SD card image.

Which operating system should I use?

Raspberry Pi OS Lite is a popular choice for headless IoT and servers, while the full Raspberry Pi OS works for light desktop tasks and development.
