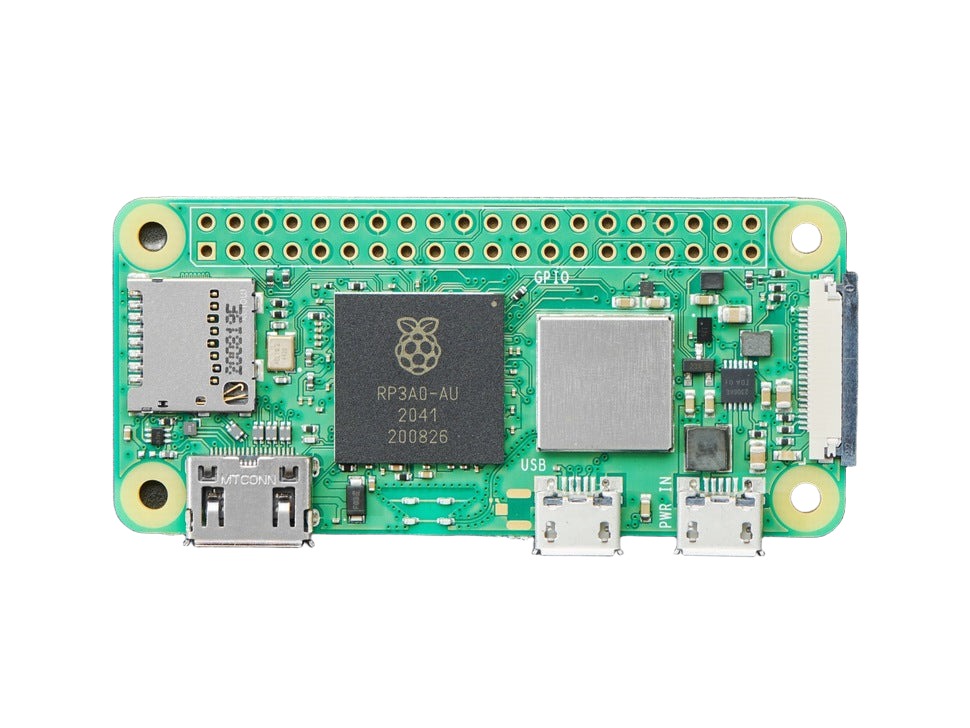

Raspberry Pi Zero 2 W, the Zero footprint upgraded with a quad-core 64-bit Arm Cortex-A53 CPU and 512MB RAM. A real Linux computer that fits behind a small display or on the back of a robot, with on-board Wi-Fi/Bluetooth.
Good for IoT gateways, camera nodes, home-lab utilities, and embedded dashboards. Same size and mounting holes as Zero / Zero W.
Specs
| Processor | Raspberry Pi RP3A0 SiP, Broadcom BCM2710A1, quad-core 64-bit Arm Cortex-A53 @ 1 GHz |
| Memory | 512 MB LPDDR2 (in SiP) |
| Wireless | 2.4 GHz 802.11b/g/n Wi-Fi, Bluetooth 4.2, BLE |
| Storage | microSD card slot |
| Video | Mini HDMI (up to 1080p) |
| Camera | CSI-2 camera connector |
| USB | 1 × USB 2.0 via micro-USB OTG (+ separate micro-USB for power) |
| GPIO | Unpopulated 40-pin HAT-compatible footprint, 3.3V logic |
| Power | 5V DC via micro-USB |
| Size | ~65 × 30 mm |
Ships with no pre-soldered GPIO header. GPIO is 3.3V, level-shift any 5V signals.
FAQ
Will this ship from Manila?
Yes — all stock ships from our Quezon City warehouse. Order before 4 PM weekdays for same-day cutoff via J&T or LBC.
Do you ship nationwide?
Yes. Metro Manila usually arrives next-day; provincial 1–3 working days.
Can I get this on a school PO or class order?
Yes — we accept Purchase Orders from accredited schools and universities. Contact us with your PO details and we'll process it.
Is this compatible with Arduino, ESP32, or Raspberry Pi?
Most parts work with common maker boards — check the description for specific pinout / voltage notes. If you're unsure, send us a message before ordering.
What's your return policy?
7-day inspection window for DOA units. Email proof of issue and we'll ship a replacement or refund. Used / installed parts are not returnable unless faulty.
Do you offer technical support?
Yes — questions land on our forum or via email, weekday or weekend. We've actually wired up most of what we sell.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
// downloads
- Schematic pdf
- Mechanical drawing pdf
