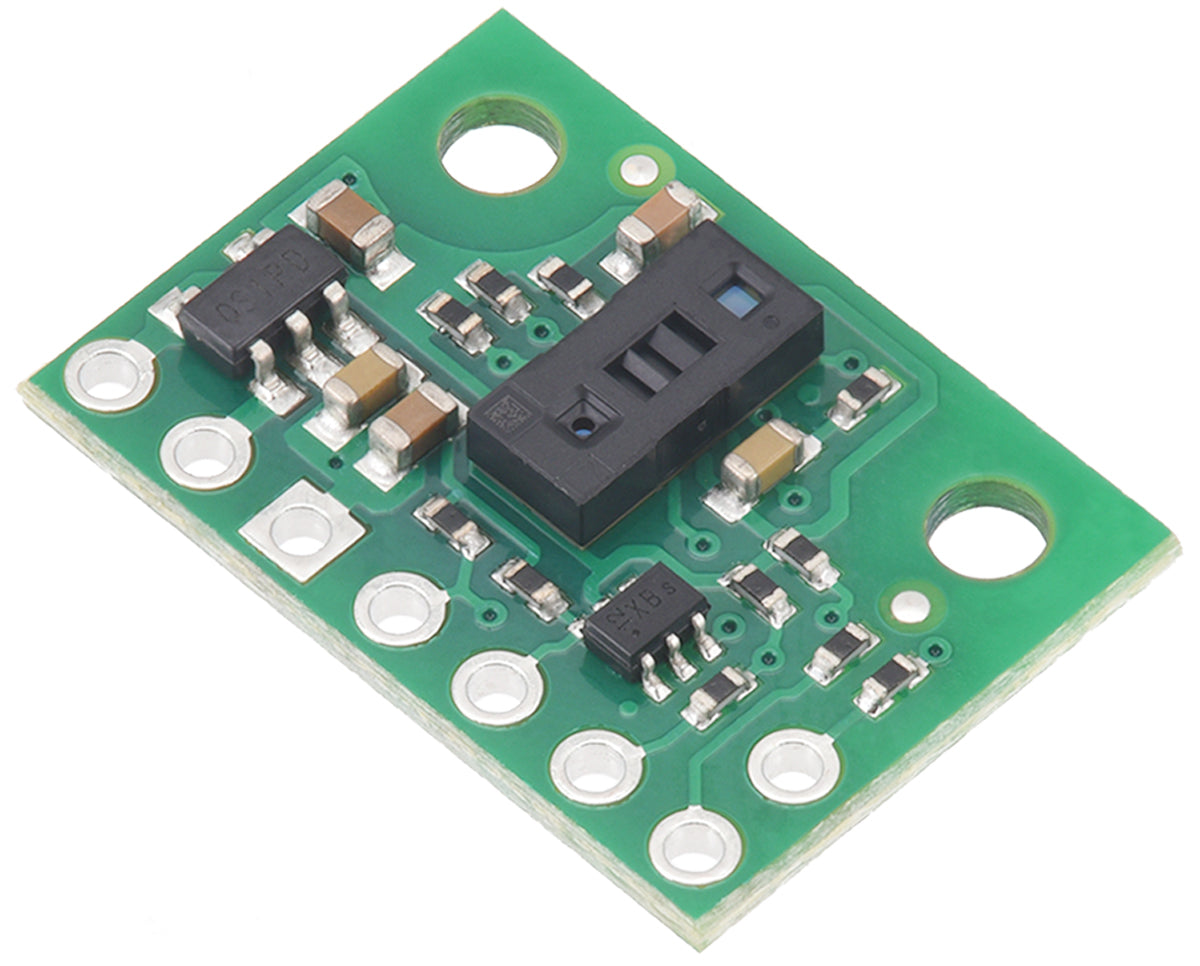

VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier (Up to 3.5m)
If you want a “mini lidar” feel without the lidar price/size, this is it. The VL53L7CX is a time-of-flight laser-ranging sensor that can measure absolute distances across a configurable 4×4 or 8×8 grid, so you can build a low-resolution depth map instead of just getting one distance value.
Built-in 3.3V regulator + I²C level shifters let it work from 2.5V–5.5V systems (VIN logic level).
Quick fit notes
- Wide view: 60°×60° (90° diagonal) — great for “what’s in front of me?” sensing.
- Minimum range: 20mm; resolution: 1mm.

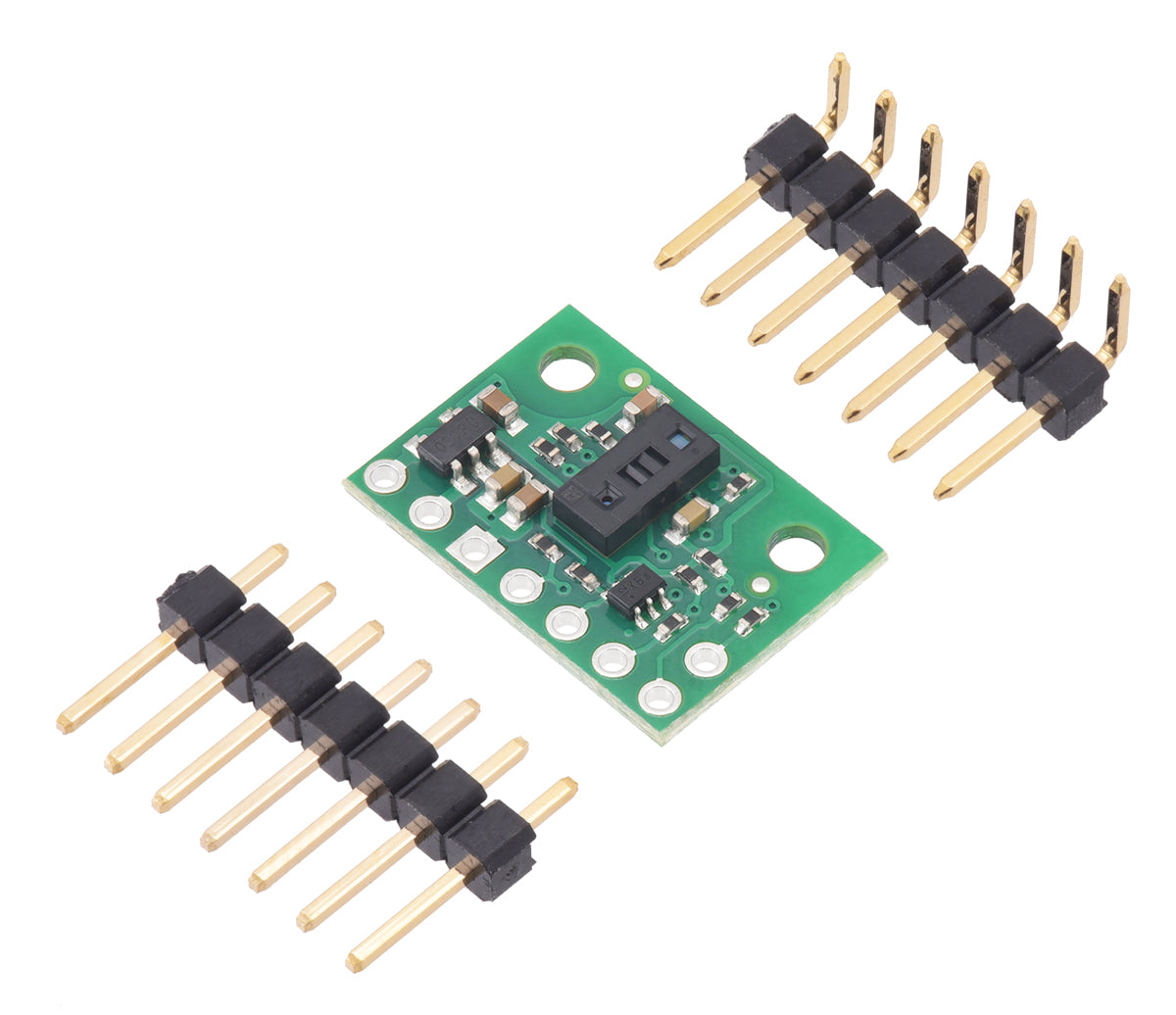

- Included headers: 1×8 straight + 1×7 right-angle header strips.

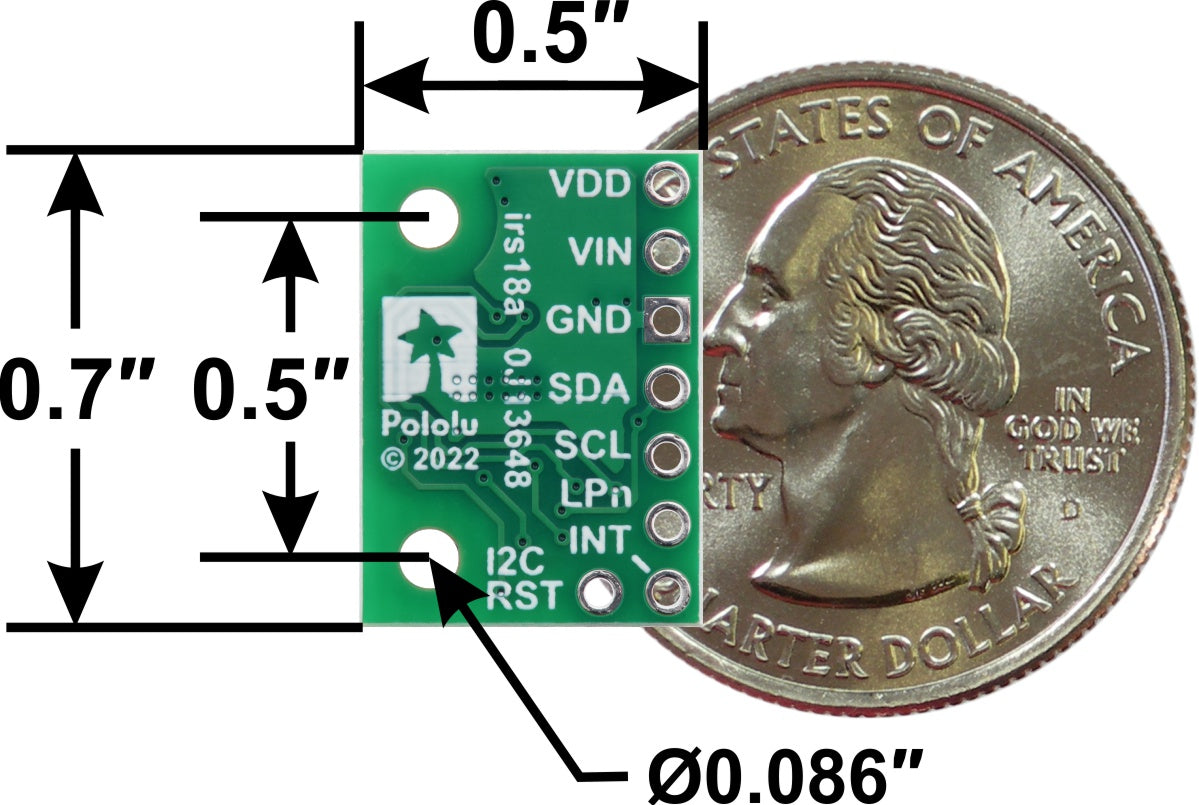

- Mounting: two holes spaced 0.5″ for #2/M2 screws.

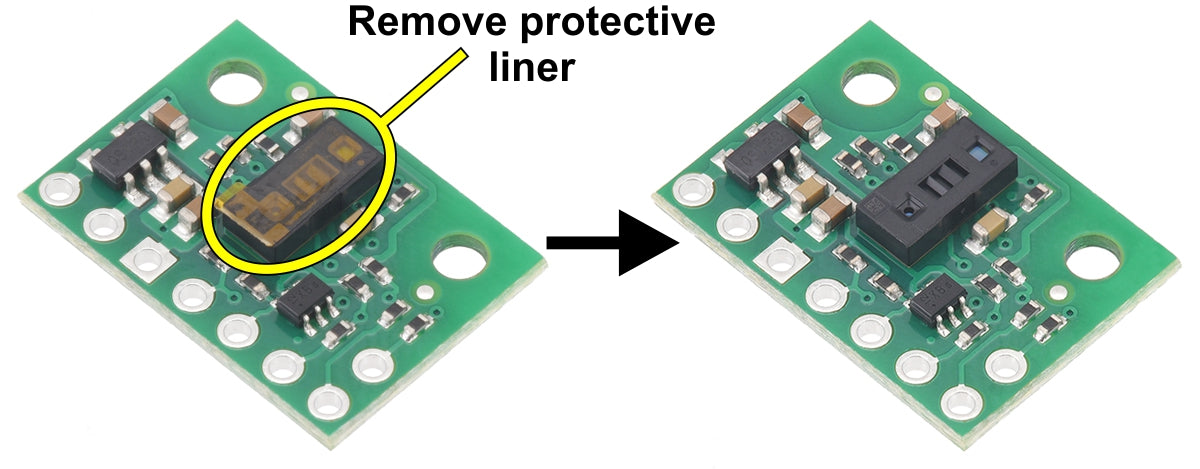

Also: some units may ship with a protective liner covering the sensor—remove it for proper sensing.
Why/Benefits
- Depth-map style sensing: detects distance across multiple zones at once (multi-target per zone supported).
- Works in real lighting: ToF measurements are independent of ambient light (though max range still depends on target & environment).
- Easy interfacing: on-board 3.3V regulator + I²C level shifting for VIN logic level (2.5V–5.5V).
- Compact carrier: 13×18×3mm fits tight robots and enclosures.
Technical specifications
| Model | VL53L7CX ToF 8×8-zone wide FOV distance sensor carrier |
|---|---|
| Operating voltage | 2.5V to 5.5V (via VIN; on-board 3.3V regulator) |
| Regulated 3.3V out | VDD pin (regulator output), ~100mA available for external devices |
| Interface | I²C (level-shifted to VIN logic level) |
| Default I²C address | 7-bit: 0b0101001 (can be changed until reset/power cycle) :contentReference[oaicite:17]{index=17} |
| Field of view | 60°×60° (90° diagonal) |
| Zones / output | 4×4 or 8×8 zones; histogram output format |
| Range | 20mm min; up to 3.5m max (conditions dependent) |
| Resolution | 1mm |
| Typical active current | ~100mA average; peak can reach 150mA |
| Emitter | 940nm Class 1 VCSEL (invisible, eye-safe) |
| Size / weight | 13×18×3mm; 0.5g (without headers) :contentReference[oaicite:24]{index=24} |
| Mounting | 2 holes, 0.5″ spacing, for #2/M2 screws |

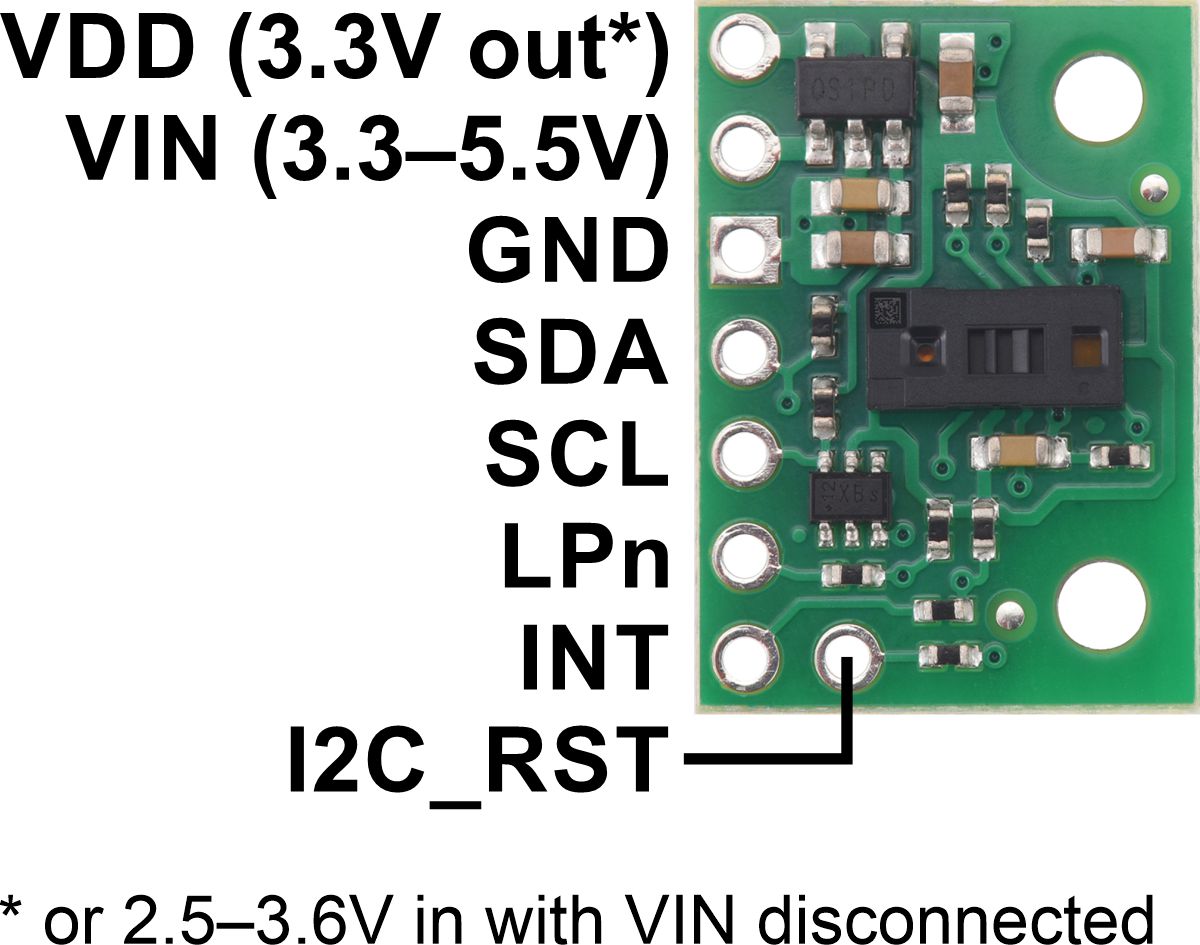

Pinout & power notes
- Minimum required connections: VIN, GND, SCL, SDA.
- VIN: main supply (3.3V–5.5V typical); also sets I²C logic-high level via the level shifters.
- VDD: regulated 3.3V output (or can be used as input 2.5V–3.6V to bypass regulator if VIN is disconnected).
- LPn / I2C_RST / INT: not level-shifted and not 5V-tolerant (plan accordingly).
FAQ
-
Will this work with Arduino UNO (8-bit)?
Not recommended—initialization and processing require significant RAM/code space (ST API often >90KB). Use ESP32/RP2040/Raspberry Pi instead.
-
Does it work at 5V logic?
Yes for I²C (SCL/SDA are level-shifted to VIN), but LPn/I2C_RST/INT are not level-shifted and are not 5V-tolerant.
-
Why is there a VDD pin?
VDD is the regulator’s 3.3V output (and can supply ~100mA for small external devices), or you can power the board through VDD (2.5V–3.6V) with VIN disconnected to bypass the regulator.
-

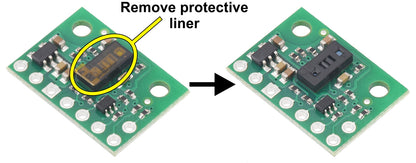

My readings look “blocked” or weak—what should I check?
Some units ship with a protective liner over the sensor. Remove it for proper sensing performance.
