Tic T249 USB Multi-Interface Stepper Motor Controller (Connectors Soldered)
If you want a stepper controller that can be driven by almost anything—PC, Arduino/ESP32, joystick/potentiometer, rotary encoder dial, or RC receiver—the Tic T249 is a clean, modern choice. You can configure it quickly over USB using Pololu’s free software, then run it through the interface that fits your project best.

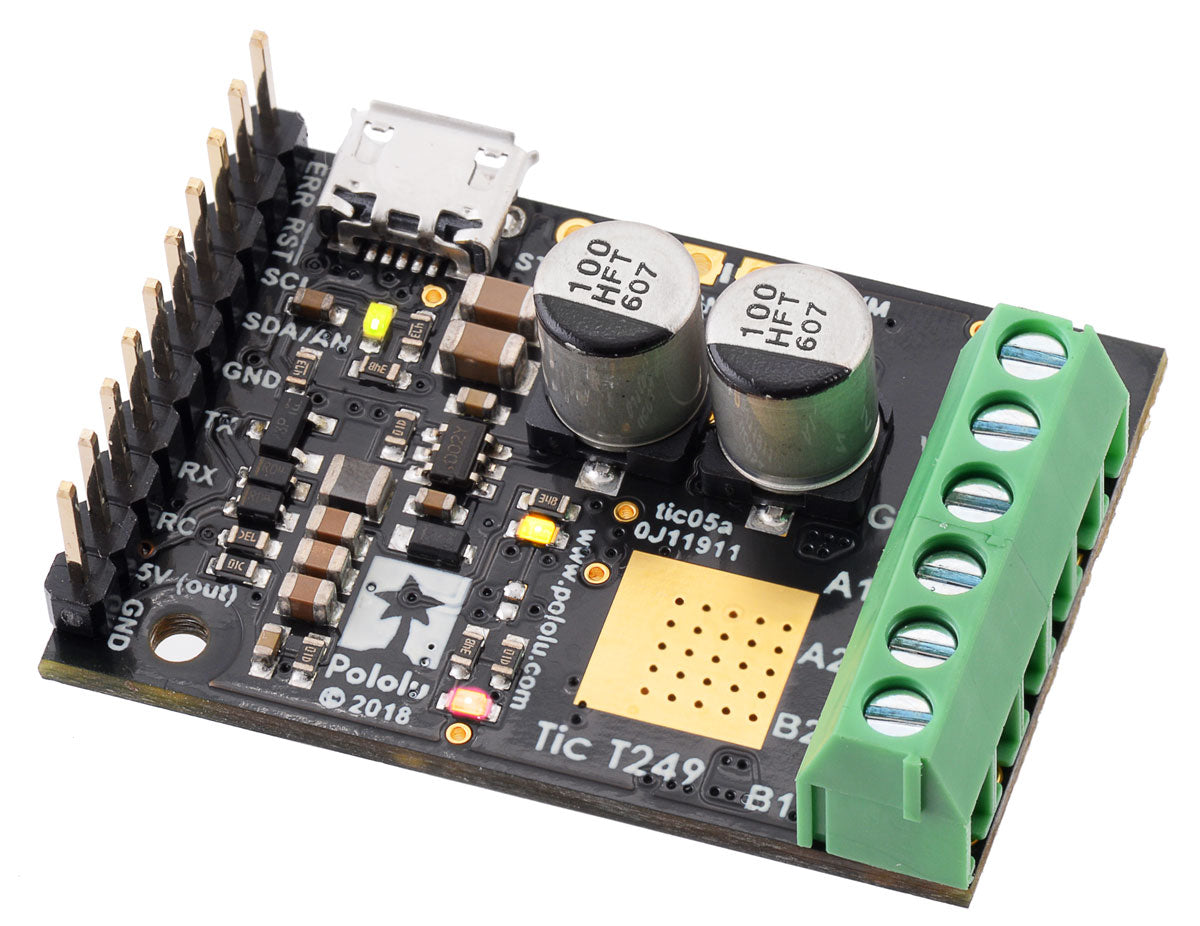

This variant ships with header pins + terminal blocks already soldered, so you can start wiring immediately—no soldering needed.
Control it your way
- USB (direct PC connection for setup + control)
- TTL serial and I²C (microcontroller-friendly)
- Analog (potentiometer / joystick)
- Quadrature encoder (dial control)
- RC servo pulses (hobby radio control)
- STEP/DIR inputs (compatibility with common stepper firmware)
Why/Benefits
- Fast setup: set current limit, speed, acceleration, and safety behavior via free configuration software.
- Smoother motion: microstepping up to 1/32 helps reduce vibration and noise.
- High-voltage headroom: 10–47V lets you push higher step rates (while limiting coil current properly).
- Smarter driver tech: Toshiba TB67S249FTG features like Active Gain Control and dynamic decay control help reduce heat and improve high-speed smoothness.
- Safety inputs: optional limit switches with homing + optional kill switch inputs for safer motion builds.
Technical specifications
| Model | Tic T249 (Connectors Soldered) |
|---|---|
| Motor supply | 10V to 47V |
| Driver IC | Toshiba TB67S249FTG |
| Current | ~1.8A per phase continuous (no heatsink/forced air); 4.5A per phase peak with sufficient cooling |
| Control interfaces | USB, TTL serial, I²C, analog voltage, quadrature encoder, RC servo pulses, STEP/DIR inputs |
| Microstepping | Full step to 1/32 step |
| Max step rate | Up to 50,000 steps/second |
| Extras | Digitally adjustable current limit, accel/decel limiting, 5V regulator (no external logic supply), optional limit switches + homing, optional kill switch inputs |
| Connectors | Header pins + terminal blocks soldered (ready to wire) |

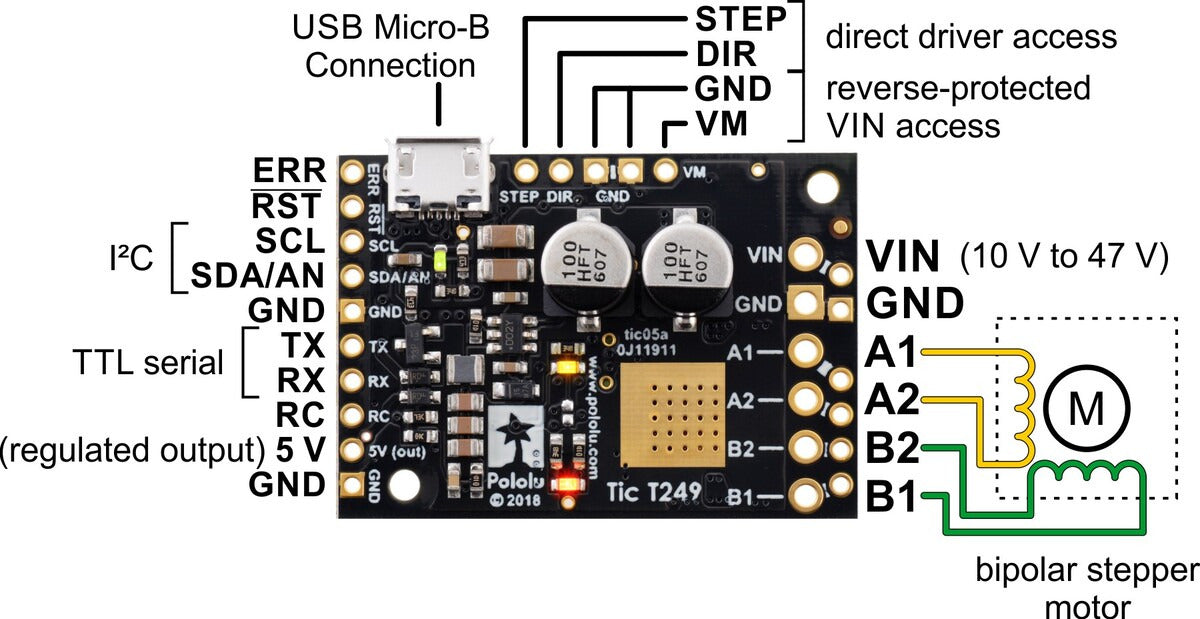

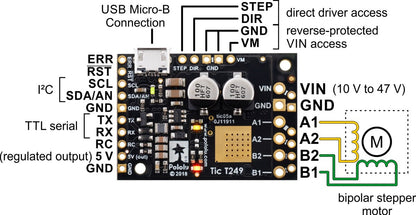

Pinout & power notes
- Motor: connect your stepper coil pairs to A1/A2 and B1/B2.
- Power: use a stable supply within 10–47V, sized for your current limit and motor load.
- USB: connects via Micro-B (cable not included).
FAQ
-
Can I control it from Arduino or ESP32?
Yes—use TTL serial or I²C for a clean interface, or STEP/DIR inputs if you’re using existing stepper firmware.
-
Do I need to solder anything?
No—this version comes with the connectors already soldered.
-
Is 47V really supported?
Yes, it’s designed for 10–47V motor supplies. Just make sure your wiring and power supply are appropriate and add cooling if pushing high current.
