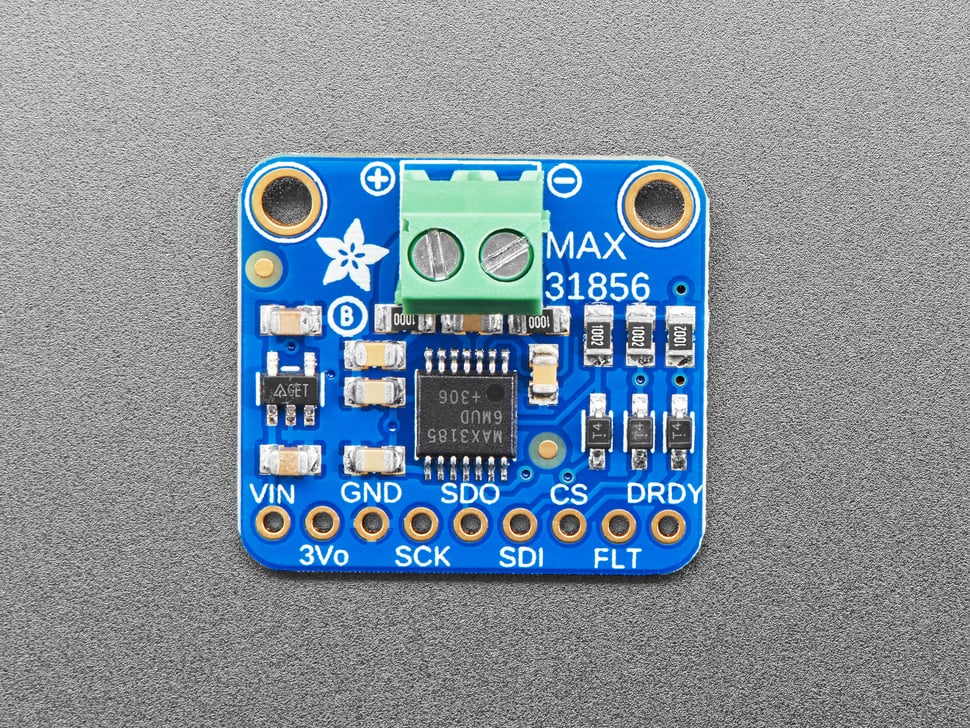

Measure Temperature with a Sensor Made for Embedded Builds
The Thermocouple Amplifier MAX31856 Breakout Adafruit Universal is a thermocouple module with spi designed for temperature logging, thermal control, weather nodes, and equipment monitoring. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Interface: SPI.
Important: Sensor response time depends on airflow, mounting, and thermal contact. Keep heat sources and self-heating from nearby parts in mind.
Why you’ll love it
- Internal temperature reading: Internal temperature reading
- SPI data requires any 4 digital I/O pins: SPI data requires any 4 digital I/O pins
- Easy wiring: SPI
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
- Common controller support: Works well with Arduino, ESP32, Raspberry Pi, and similar boards
- Project-ready sensing: temperature logging, thermal control, weather nodes, and equipment monitoring
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Thermocouple Amplifier MAX31856 Breakout Adafruit Universal | thermocouple module with SPI | Current item |
| Thermocouple Amplifier MAX6675 breakout board | thermocouple module with analog output | analog output, temperature sensing |
| Thermocouple K Type | thermocouple module | temperature sensing |
| Thermocouple Type-K Glass Braid Insulated Stainless Steel Tip | thermocouple module | temperature sensing, remote probe format |
What you can build
This sensor is a good fit for thermostats, incubators, weather stations, battery packs, 3D printer enclosures, and cold-chain logging.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard or jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include probe mounts, thermal paste if needed, and a data logger, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Thermocouple Amplifier MAX31856 Breakout Adafruit Universal |
|---|---|
| Product Dimensions | 25.0mm x 22.0mm x 3.0mm / 1.0" x 0.9" x 0.1" |
| Product Weight | 3.5g / 0.1oz |
| Interface | SPI |
| Category | thermal heat temperature sensors |
Wiring & usage notes
Connect power and ground, then wire SCK, MISO, MOSI, and CS to your controller. Keep wires short for stable reads. Sensor response time depends on airflow, mounting, and thermal contact. Keep heat sources and self-heating from nearby parts in mind.
What’s in the box
1 × Thermocouple Amplifier MAX31856 Breakout Adafruit Universal
Frequently Asked Questions
What does the Thermocouple Amplifier MAX31856 Breakout Adafruit Universal measure?
It is designed to measure temperature.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this SPI sensor?
This version uses SPI, so you usually connect power plus SCK, MISO, MOSI, and chip select.
What affects accuracy?
Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
// downloads
- GitHub PCB repo git
