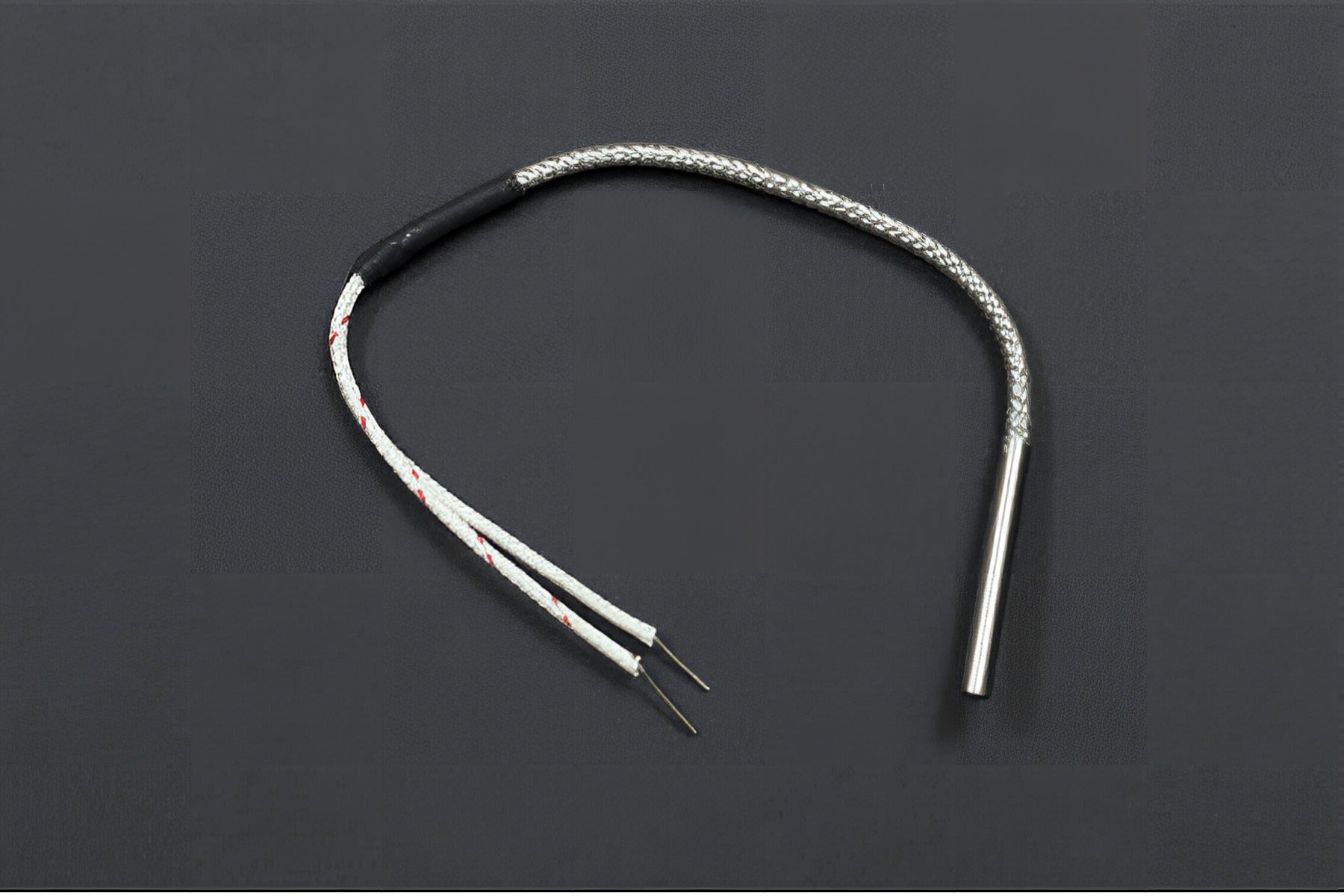

Thermocouple K Type

This is a K type Thermocouple (Temperature sensor) which is very popular for 3D printers such as Ultimaker and Makerbot. You can hardly damage them or mishandle them. You just need an additional IC (Like an AD595) for interpeting the data from this sensor.

SPECIFICATION

• Measure Temperature:0-800 °C

• Accuracy: ±2 °C

• Cable Color Code: Red (+), Blue(-)

• Calbe Length: 125mm (4.92")

• Material: Stainless

• Dimensions: 3mm X 25mm (0.11x0.98")

DOCUMENTS

• Thermocouple Principle Wiki

SHIPPING LIST

• K Type Thermocouple     x1


Thermocouples are essential sensors in various industries, used to measure temperature with precision and reliability. Among the different types, the K-type thermocouple stands out for its versatility and broad temperature range. In this blog post, we will explore the features, applications, and benefits of the K-type thermocouple, specifically focusing on the product available at Circuitrocks.

What is a K-Type Thermocouple?

A K-type thermocouple consists of two different metals: chromel (nickel-chromium alloy) and alumel (nickel-aluminum alloy). When these two metals are joined at one end, they create a thermoelectric effect, generating a voltage that corresponds to temperature differences between the joined end (the measuring junction) and the other end (the reference junction). The K-type thermocouple can measure temperatures ranging from -200°C to 1260°C (-328°F to 2300°F), making it suitable for a wide variety of applications.

Key Features of the K-Type Thermocouple from Circuitrocks

• Wide Temperature Range: The K-type thermocouple's ability to operate over an extensive temperature range makes it ideal for both low and high-temperature measurements. This flexibility allows it to be used in various settings, from industrial applications to DIY projects.
• High Accuracy: Known for its accuracy, the K-type thermocouple provides reliable temperature readings. This makes it a preferred choice for critical applications where precision is essential.
• Robust Construction: The K-type thermocouple from Circuitrocks is designed for durability. Its materials can withstand harsh environments, making it suitable for outdoor use and industrial settings.
• Easy Integration: With standard connectors and specifications, the K-type thermocouple can be easily integrated into various systems, including Arduino and Raspberry Pi projects. This makes it accessible for both hobbyists and professional engineers.

Applications of K-Type Thermocouples

K-type thermocouples have a wide range of applications, including:

• Industrial Process Control: Used in manufacturing and processing industries to monitor and control temperatures in furnaces, kilns, and reactors.
• HVAC Systems: Employed in heating, ventilation, and air conditioning systems to ensure optimal temperature regulation.
• Food Industry: Essential for monitoring cooking and storage temperatures, ensuring food safety and quality.
• Scientific Research: Widely used in laboratories for precise temperature measurement in experiments.

Advantages of Using K-Type Thermocouples

• Cost-Effective: Compared to other temperature sensors, K-type thermocouples are relatively inexpensive, making them an economical choice for various applications.
• Fast Response Time: K-type thermocouples have a rapid response time, allowing for quick temperature changes to be detected, which is crucial in dynamic environments.
• Versatility: The K-type can be used in different conditions and environments, whether for monitoring ambient temperature or measuring extreme heat in industrial processes.
• Low Maintenance: Once installed, K-type thermocouples require minimal maintenance, making them ideal for long-term use in various applications.

Conclusion

The K-type thermocouple from Circuitrocks is an excellent choice for anyone looking to incorporate temperature measurement into their projects. With its wide temperature range, high accuracy, and ease of integration, it stands out as a reliable sensor for both hobbyists and professionals.

Whether you're working on a DIY electronics project or need precise temperature measurements for industrial applications, the K-type thermocouple is a versatile tool that delivers exceptional performance. Explore the possibilities and make accurate temperature measurements a part of your next project!
