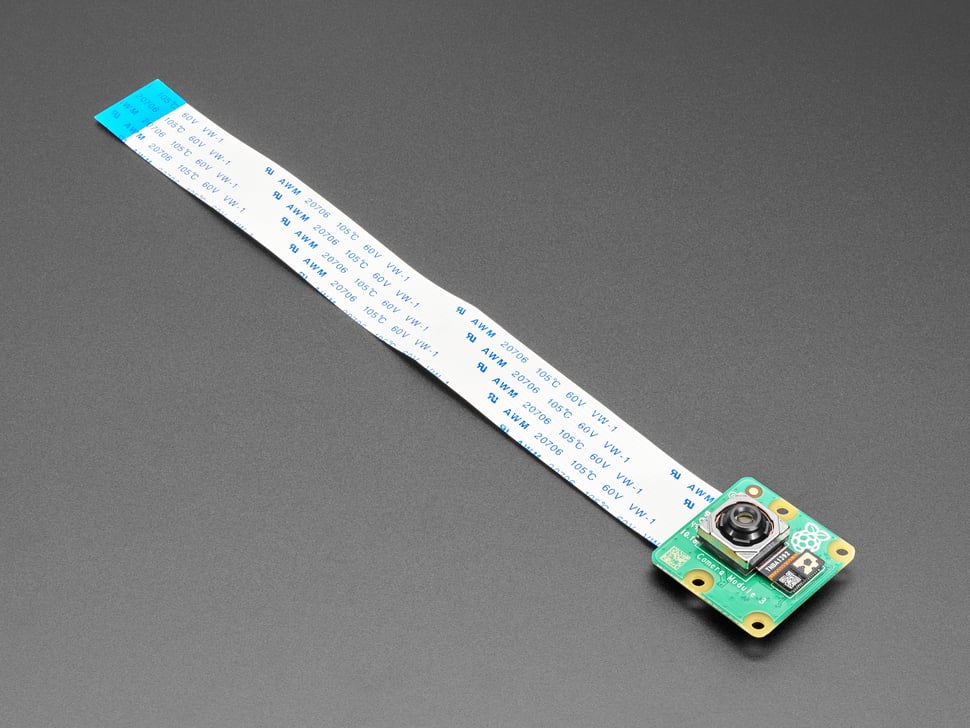

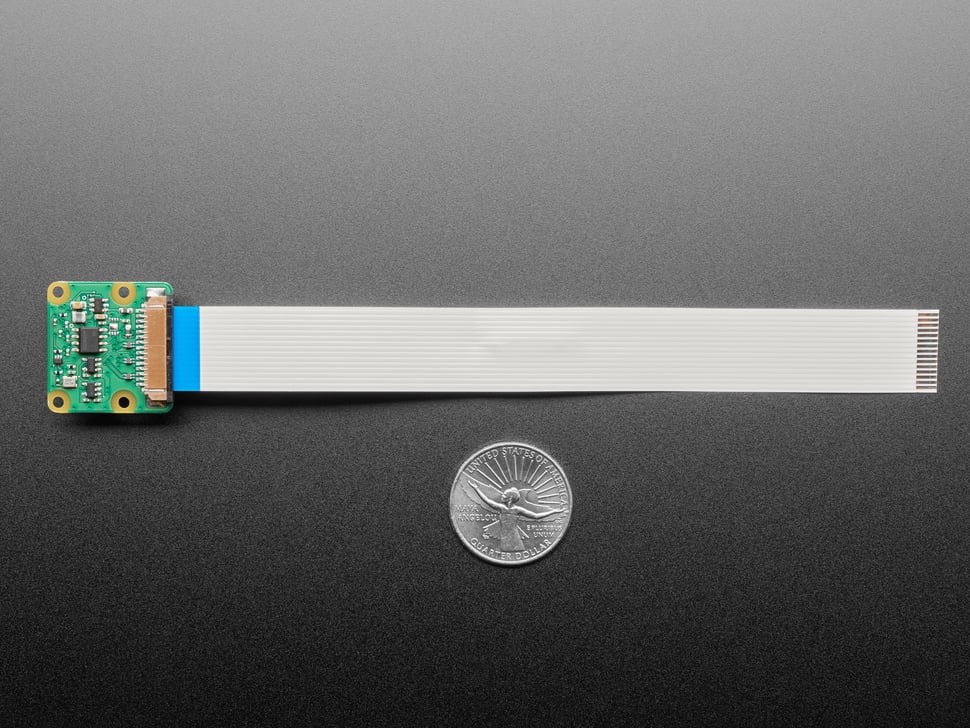

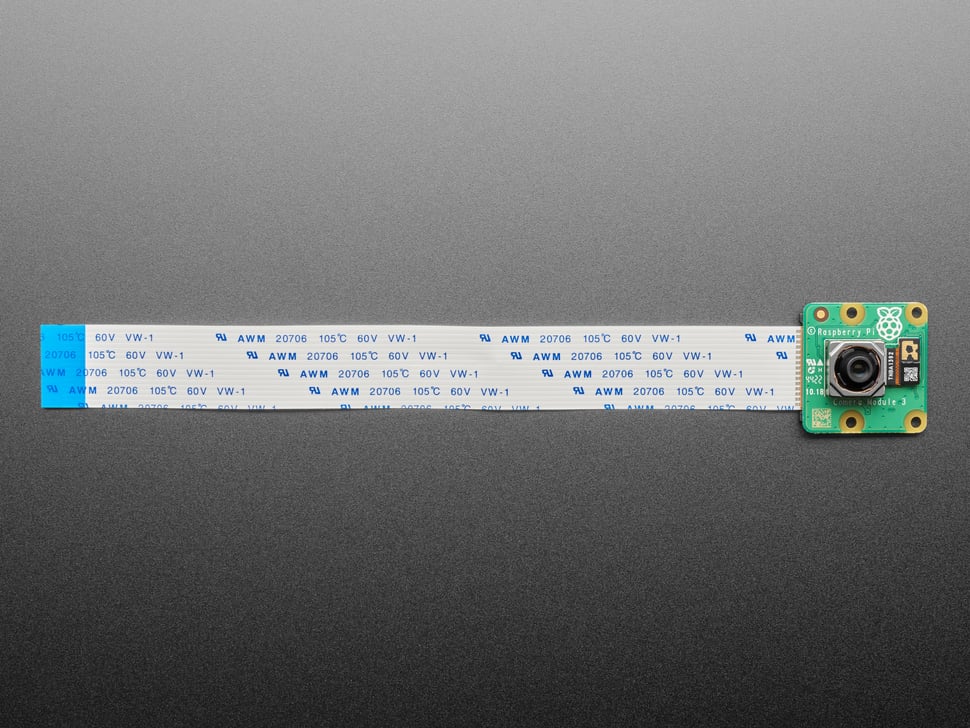

Raspberry Pi Camera Module 3 with a 12MP Sony IMX708 sensor and 75-degree lens. The standard daylight version with an IR cut filter. Good all-rounder for photography and video streaming.

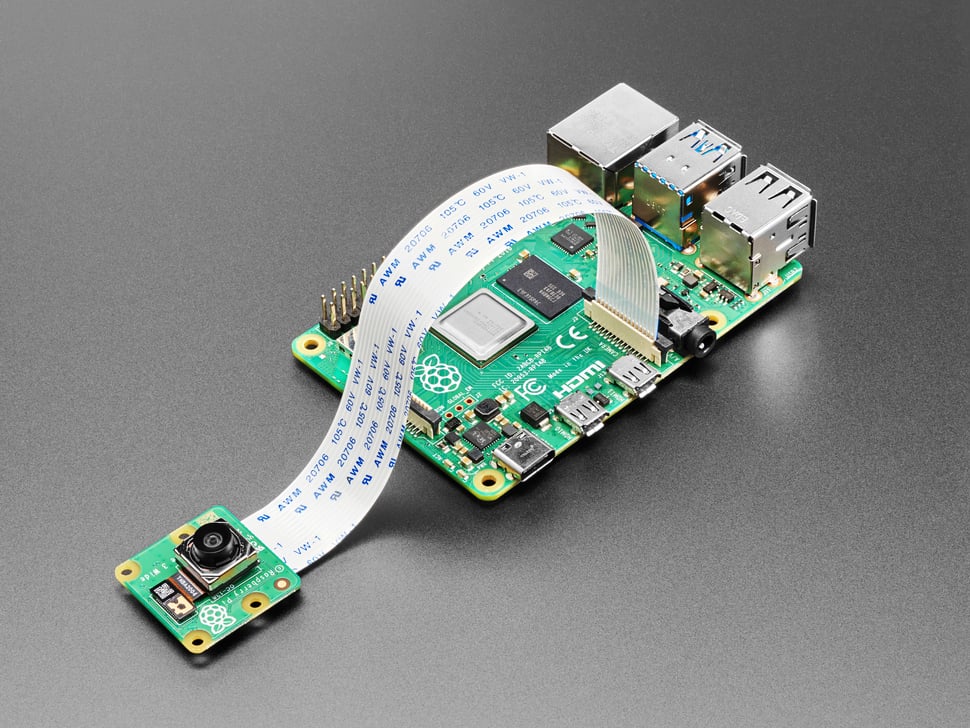

Fully supported by libcamera and compatible with all Raspberry Pi computers, keeping the same PCB size and mounting holes as previous modules. Fast phase-detection autofocus in well-lit scenes.
Specs
| Sensor | 12MP Sony IMX708, 7.4mm diagonal, 1.4um pixel |
| Resolution | 4608 x 2592 (11.9MP) |
| Field of view | 75 degrees |
| Autofocus | Phase Detection (PDAF) |
| Output | RAW10, HDR up to 3MP |
| Video | 1080p50, 720p100, 480p120 |
| Filter | IR cut filter included |
| Connection | CSI-2, 2-wire I2C control |
| Dimensions | 25 x 24 x 11.5mm |
| Cable | 200mm ribbon, 15x1mm FPC connector |
Ships with a 200mm cable. For a Pi Zero you'll need an adapter cable, which we stock.
