Temperature Sensor Waterproof DS18B20 kit

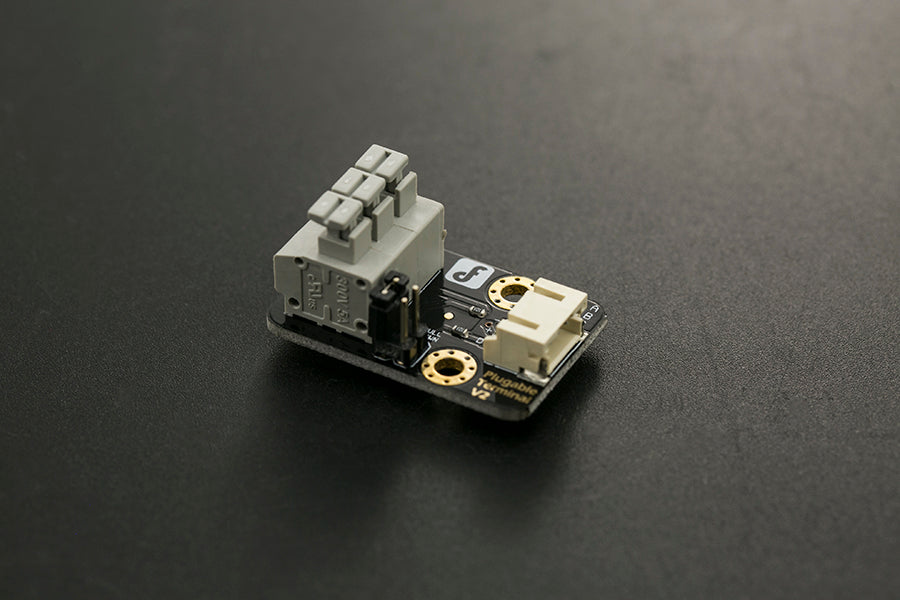

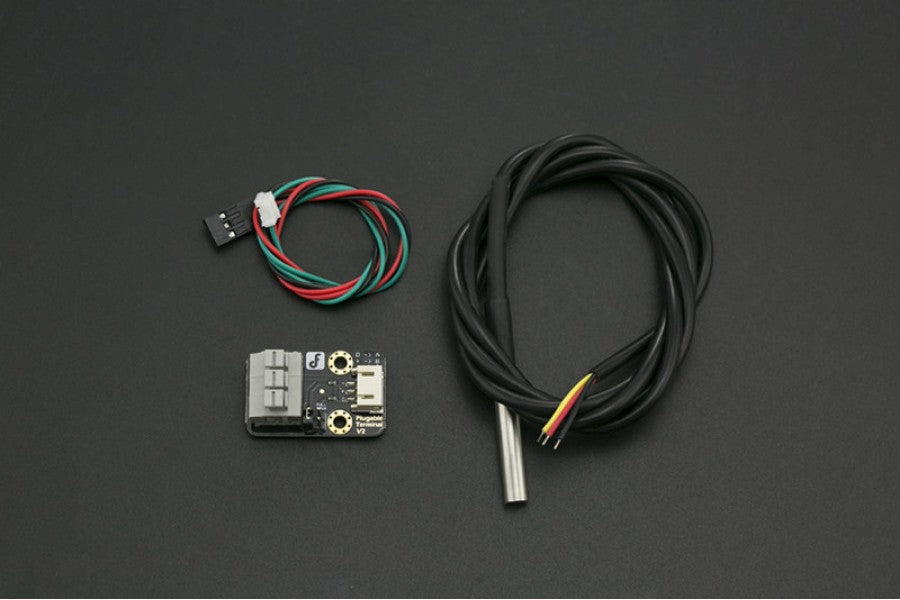

If you are familiar with our product, you will find there is waterproof temperature sensor named DS18B20. This waterproof temperature sensor kit is using the same probe——DS18B20 probe AS . It contains a probe with a resister module. So it is easy to connect on the Arduino board.

The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.

SPECIFICATION

• Operating voltage: 3.0~ 5.5V

• ±0.5°C Accuracy from -10°C to +85°C

• Usable temperature range: -55 to 125°C (-67°F to +257°F)

• 9 to 12 bit selectable resolution

• Uses 1-Wire interface- requires only one digital pin for communication

• Unique 64 bit ID burned into chip

• Multiple sensors can share one pin

• Temperature-limit alarm system

• Query time is less than 750ms


• Red wire - VCC

• Black wire - GND

• Yellow wire - DATA


• Red wire - VCC

• Yellow wire - GND

• Green wire - DATA

• Stainless steel tube 6mm diameter by 35mm(1.34") long

• Cable diameter: 4mm(0.16")

• Length: 90cm(35.43")
