Affordable 32-bit Teensy Board for Compact, Low-Cost Embedded Projects
The Teensy LC 32-bit Microcontroller is the low-cost entry point to the Teensy family. It keeps the familiar small form factor while giving you a 32-bit processor, native USB, and useful analog, timer, and communication features.
It is a good fit for USB devices, small sensor projects, budget robotics, compact control boards, and students moving up from basic 8-bit boards into faster 32-bit development.
Important: Teensy LC is meant for cost-sensitive projects. If you need more speed, 5V-tolerant digital inputs, or more advanced buses, move up to Teensy 3.2 or newer models.
Why you'll love it
- Lower entry cost: A practical way to get into the Teensy ecosystem
- 32-bit processor: A step up from classic 8-bit USB boards
- Native USB support: Useful for serial, MIDI, and HID projects
- Small, familiar footprint: Easy to prototype on breadboards
- Good for light embedded work: Strong enough for many compact control jobs
Comparison table
| Product | Best for | Core / Speed | Main edge |
|---|---|---|---|
| Teensy 2.0 ATmega32u4 USB Dev Board | USB HID, MIDI, slim controllers | 8-bit AVR / 16 MHz | Native USB, classic small control builds |
| Teensy LC 32-bit Microcontroller | Budget 32-bit builds and student projects | 32-bit Cortex-M0+ / 48 MHz | Low-cost 32-bit upgrade, compact and capable |
| Teensy 3.2 | Balanced embedded, MIDI, display, sensor builds | 32-bit Cortex-M4 / 72 MHz | Well-balanced speed, 5V-tolerant digital inputs |
| Teensy 4.0 | Fast DSP, displays, robotics, compact high-speed work | 32-bit Cortex-M7 / 600 MHz | Very high speed in a tiny footprint |
What you can build
Use it for USB controllers, small robots, MIDI gear, sensor readers, low-cost embedded tools, and student projects where size and budget matter.
Starter bundles
Pair it with a breadboard, header pins, displays, sensors, and USB accessories. If you later need more power, the easiest next step is Teensy 3.2.
Recommended add-ons
Useful add-ons include small OLEDs, rotary encoders, buttons, sensors, and communication modules for compact and affordable control systems.
Technical specifications
| Product | Teensy LC 32-bit Microcontroller |
|---|---|
| Main MCU | ARM Cortex-M0+ |
| Clock Speed | 48 MHz |
| Memory | 62 KB Flash, 8 KB RAM |
| USB | Native USB support |
| I/O Pins | 27 total I/O pins |
| Analog | 13 analog inputs, 12-bit analog input and output |
| Communication | 3 Serial, 2 SPI, 2 I2C |
| Special Notes | 7 timers and direct NeoPixel-friendly 5V output on pin 17 path |
| Logic Notes | I/O pins are not 5V tolerant |

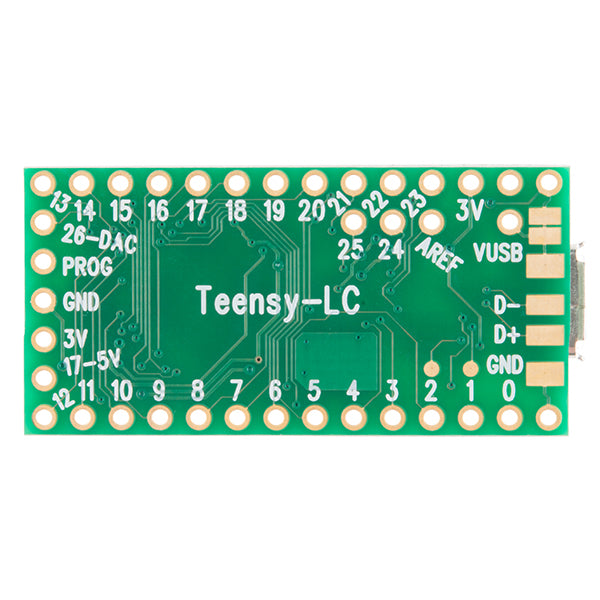

Pinout & power notes
Teensy LC keeps the same compact style as Teensy 3.2, but it is aimed at lower-cost projects. It is still a 3.3V board, and its I/O pins are not 5V tolerant.
Official resources
Official Teensy LC page · Pinout reference · Schematic reference · Teensyduino setup
What’s in the box
1 × Teensy LC board
Frequently Asked Questions
Who should buy Teensy LC? It is best for users who want a low-cost 32-bit Teensy board for lighter projects.
Is it faster than an AVR Teensy 2.0? Yes. It uses a 32-bit Cortex-M0+ core at 48 MHz.
Can I use 5V signals with it? No. Its I/O pins are not 5V tolerant.
What is the next upgrade from LC? Teensy 3.2 is the natural next step if you want more speed and features.
