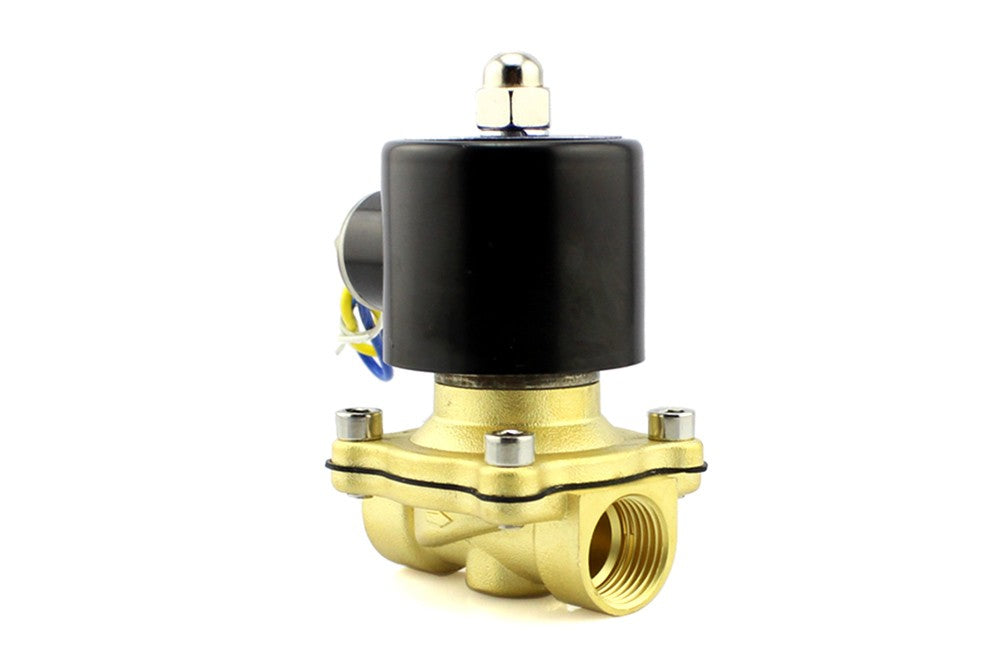

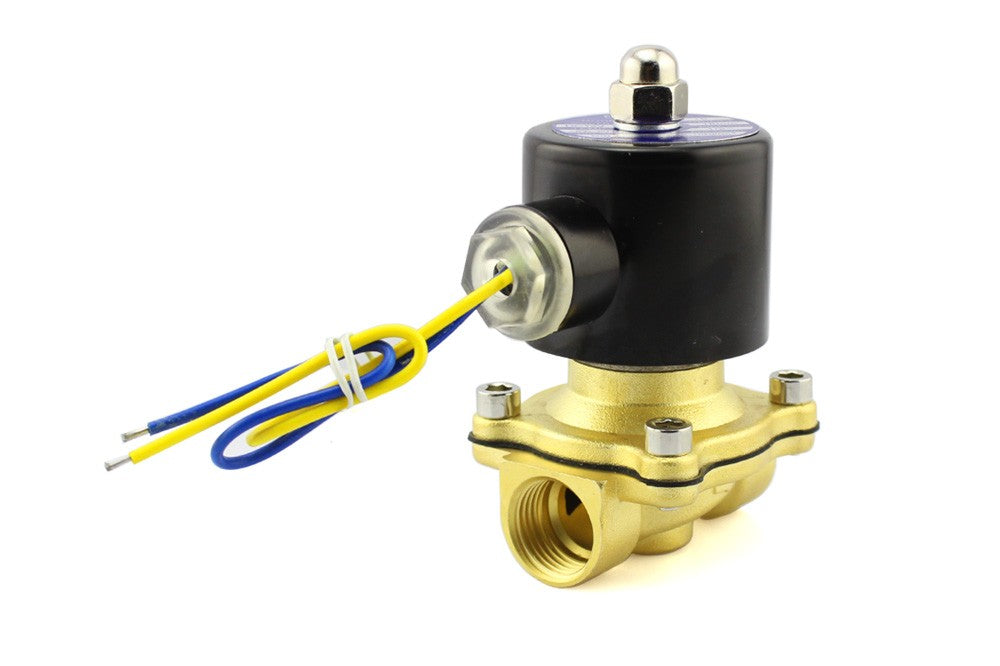

Solenoid Valve Brass Liquid 12V 1/2 NPS

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening, aquarium, or pool project. There are two 1/2" (Nominal NPS) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can flow. Unlike the plastic solenoid valve, this one does not have a gasket, so there is no minimum pressure requirement. We tried this solenoid at various DC voltages and found we could actuate it down at 6VDC (although it was a little slower to open). Here is the current draw table for various voltages. We suggest a TIP120 or N-Channel power FET with a 1N4001 kickback diode to drive this from a microcontroller pin. For a power supply, our 12V 5A power adapter will do the job. These solenoids are not rated for food safety by any official standards. However, they are made of cast brass, with a rubber gasket made of NBR (Nitrile Rubber) so it can be used with any fluid that will not damage or be damaged by the rubber gasket material.

If you want smaller, more basic valve, we also carry other version which does have a minimum flow aperture !

FEATURES:

• The use of fluids: air, water, oil

• Solenoid operating mode: Normally closed(Open when powered）

• Precision CNC machining


SPECIFICATIONS:

• 1/2" Nominal NPS

• Flow aperture: 16mm

• Working Liquid Pressure: 0 Mpa - 1.0 Mpa (140 PSI)

• Working Temperature: -5℃ - 80 ℃

• Actuating life: ≥ 50 million cycles

• Actuating voltage: 12VDC (but we found it would work down to 6V)

• Dimensions: 105mm tall x 55mm wide x 65mm long


PACKAGE LIST:

• Brass Liquid Solenoid Valve - 12V - 1/2 NPS x1
