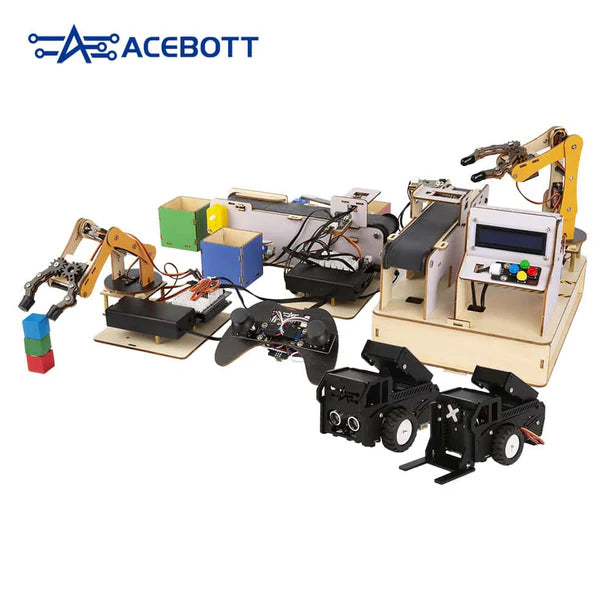

Build a mini smart factory—right on the classroom table.
The ACEBOTT QE037 Smart Factory Education Kit (Ultimate Display Version) is a complete, demo-ready STEM system where students assemble and program a working factory workflow: a robotic arm, sorting line, warehouse system, and an AGV/TruckBott for automated transport. It’s designed for display-level demonstrations and collaborative learning—so concepts like automation and IoT become visible, interactive, and memorable.
Why this kit works for STEM classes
- Ultimate display build: made to present results on a map scene for classroom demos.
- Multiple projects working together: simulate how real smart factories move items from handling → sorting → storage → transport.
- Skills coverage: programming, sensors, motors/servos, control logic, and wireless basics (WiFi/Bluetooth concepts).
Great for makerspaces, robotics electives, and project-based engineering classes.
What you can build
- Smart Robotic Arm: joint motion, speed control, coordinate control, palletizing, remote control.
- Smart Sorting Line: conveyor + sorting logic using sensors.
- Smart Warehouse System: storage + outbound logistics + integrated warehousing flow.
- AGV / TruckBott: line following, obstacle avoidance, IR remote control, encoded motor control, and more.
Perfect for capstone demos: “Here’s our factory workflow, end-to-end.”
Technical specifications
| Model | ACEBOTT QE037 Smart Factory Education Kit (Ultimate Display Version) |
|---|---|
| Recommended age | 10–16 years old (classroom STEM) |
| Controller platform | ESP32-based controller system (ESP32 Max + Shield) |
| Programming options | Arduino IDE, ACECode, and App-based control (multi-platform learning) |
| Learning theme | Smart factory automation: handling, sorting, warehousing, automated guided vehicle (AGV) |
| Classroom value focus | Structural construction • programming learning • interdisciplinary knowledge • WiFi/Bluetooth concepts • app development |
Pinout & power notes
- USB 5V is the simplest setup for classroom demos (stable and repeatable).
- Motors/servos draw current: if you see random resets during motion, use a stronger 5V supply and keep motor wiring tidy.
- Battery holders included: double-check polarity and use properly protected cells/chargers.
- Safe practice: power OFF while changing modules or re-wiring the build.

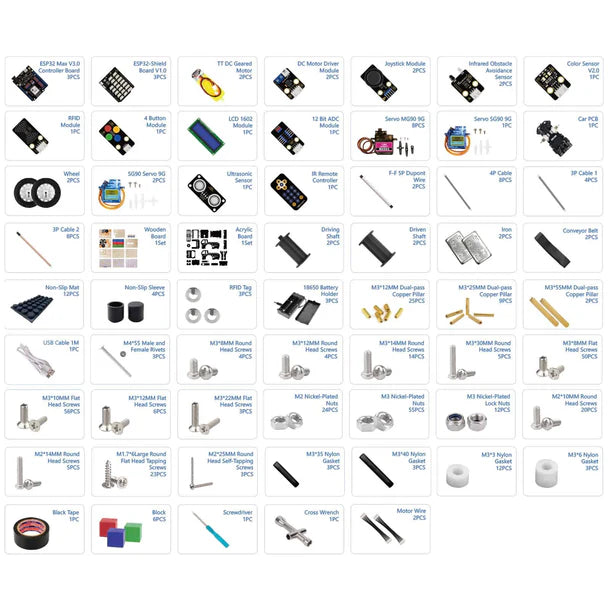

What’s in the box (highlights)
Package contents may vary slightly by production batch, but the kit includes the following core items:
Core electronics
- ESP32 Max V3.0 Controller Board — 3 pcs
- ESP32-Shield Board V1.0 — 3 pcs
- DC Motor Driver Module — 2 pcs
- LCD 1602 Module — 1 pc
- 12-bit ADC Module — 1 pc
- Joystick Module — 2 pcs
- Infrared Obstacle Avoidance Sensor — 2 pcs
- Ultrasonic Sensor — 1 pc
- Color Sensor V2.0 — 1 pc
- RFID Module — 1 pc + RFID Tags — 3 pcs
- IR Remote Controller — 1 pc
- 4-Button Module — 1 pc + 4 Button Module — 1 pc
Motion + structure
- TT DC Geared Motor — 2 pcs
- Servos: MG90 9g — 8 pcs; SG90 9g — 3 pcs total
- Car PCB — 1 pc + Wheels — 2 pcs
- Driving Shaft — 2 pcs; Driven Shaft — 2 pcs
- Conveyor Belt — 2 pcs
- Wooden Board — 1 set; Acrylic Board — 1 set
- 18650 Battery Holder — 3 pcs
- Wires/Cables: 4P Cable — 8 pcs; 3P Cable (various) — 12 pcs; F-F Dupont Wire — 2 pcs; USB Cable 1M — 1 pc; Motor Wire — 2 pcs
- Tools: Screwdriver — 1 pc; Cross Wrench — 1 pc
- Hardware pack: copper pillars, screws, nuts, gaskets, rivets, tape, blocks, etc.
FAQ
Is this good for a classroom demo?
Yes—QE037 is built for display-level demonstrations where students can show multiple smart factory modules working together in one scene.
What software can students use?
You can teach using Arduino IDE coding, ACECode, and supported app control—use whichever fits your class level and curriculum.
Do I need extra tools?
Basic tools are included, but a small organizer for screws and a stable 5V power source are highly recommended for smooth classroom builds.
Can we expand the projects?
Yes. Add more sensors, motors/servos, and ESP32 accessories to create “factory upgrades” like extra stations, alarms, counters, and custom logic.
