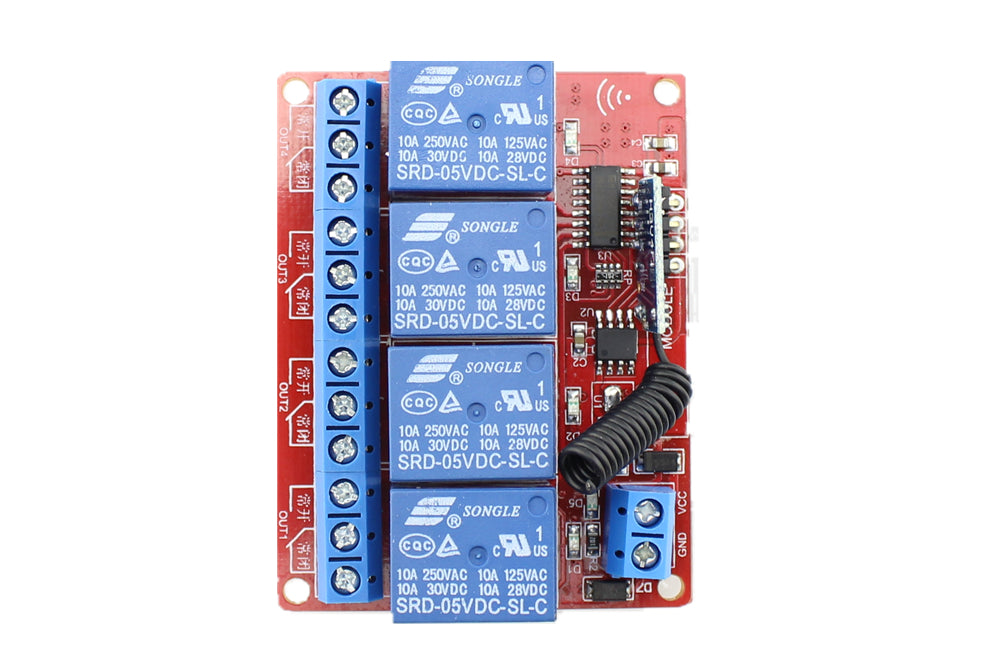

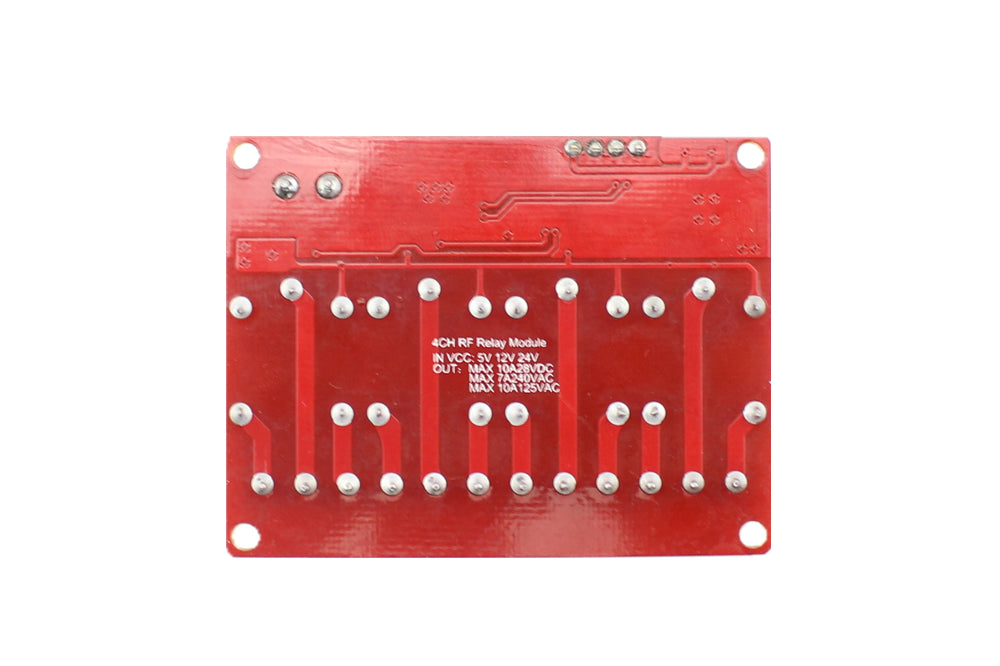

RF Remote Control Module 4 Channels DC 5V

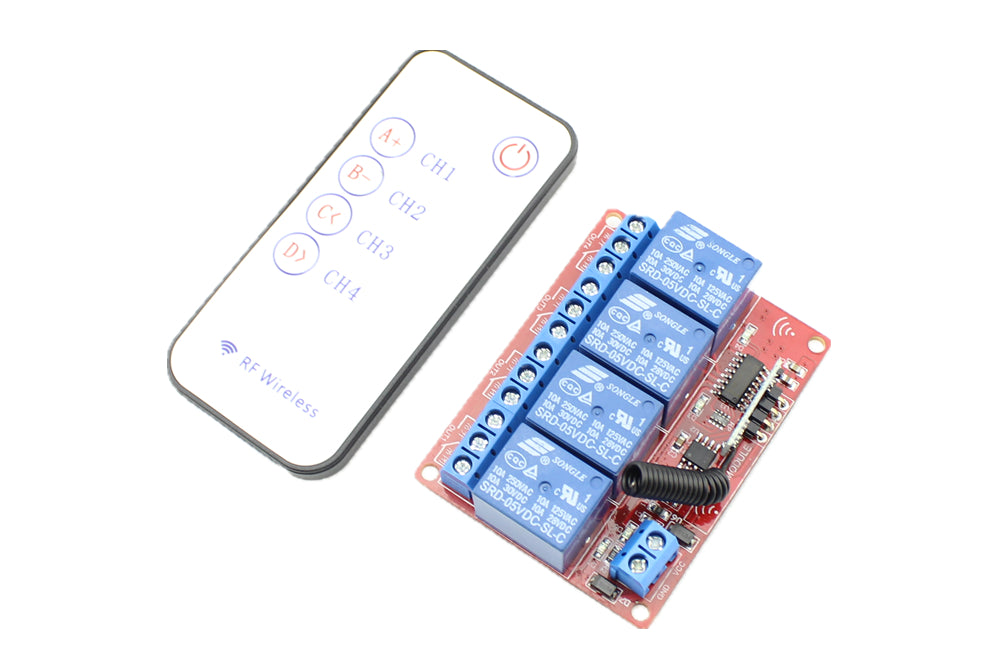

This 4-channel latching relay module whose output is passive output can be controlled by its 5-button RF wireless controller when the module is powered on. The module must be equipped with suitable remote control, it also can drive most household electrical appliances.

Features

• Able to control various appliances and other equipment with large current

• Equipped with high-current relay

• Standard interface that can be controlled directly by microcontroller

• LED indication for Relay output status


Specification

• Working voltage: DC 5-5.5V

• Working  current: about 220mA

• Quiescent current: about 6mA

• MAX Load Voltage:10A 250VAC or 10A 30VDC

• Module size: 65 x 50 x 20mm

• Module type: 433m RF wireless receiving

• Remote control distance: 15-30 meters

• Work status: Self-locking

• The work instructions LED: D1-D4(relay), D5(power)
