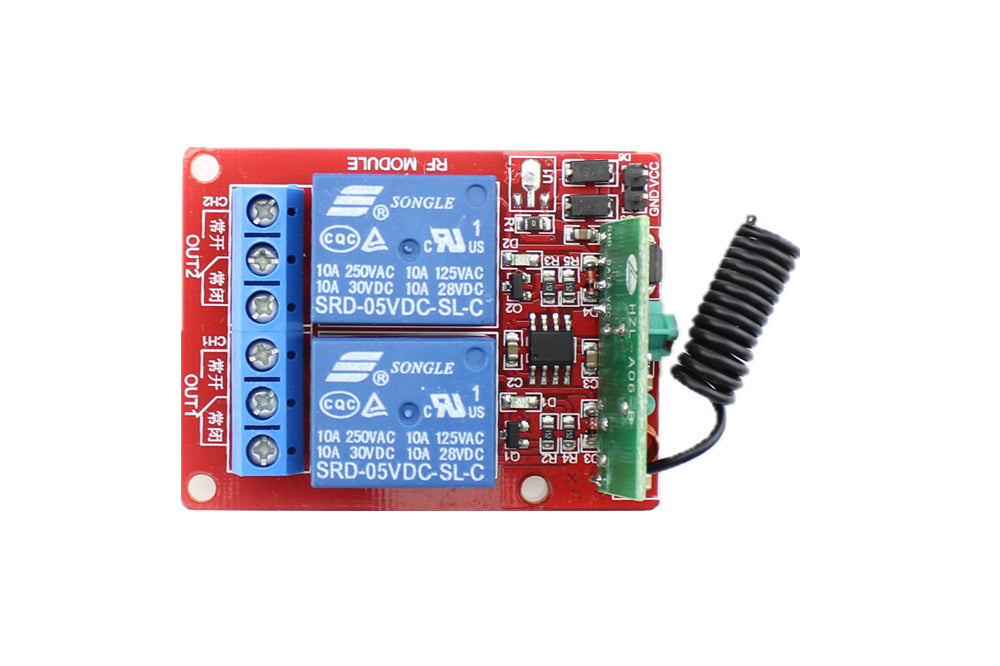

RF Remote Control Module 2 Channel DC 5V

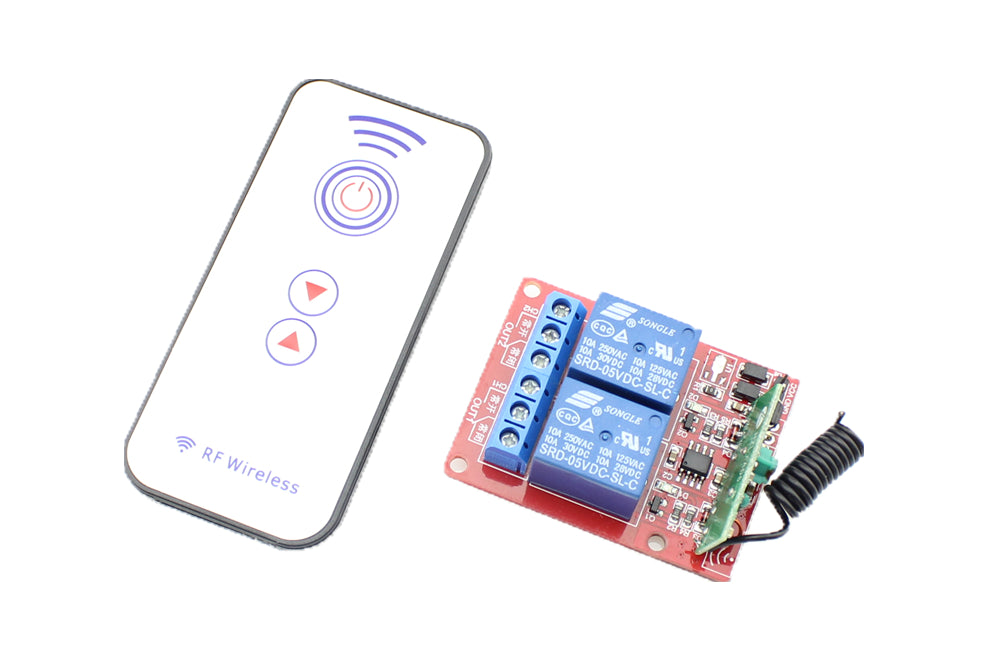

This 2-channel latching relay module whose output is passive output, can be controlled by its 3-button RF wireless controller, when the module is powered on. The module must be equipped with a suitable remote control, it also can drive most of household electrical appliances.

Features

• Able to control various appliances and other equipments with large current

• Equipped with high-current relay

• Standard interface that can be controlled directly by microcontroller

• LED indication for Relay output status


Specification

• Working voltage: DC 5-5.5V

• Working current: about 140mA

• Quiescent current: about 6mA

• MAX Load Voltage:10A 250VAC or 10A 30VDC

• Module size: 53 x 40 x 20mm

• Module type: 433m RF wireless receiving

• Remote control distance: 15-30 meters

• Work status: Self-locking

• The work instructions LED: LED1, LED2(relay)


Package list

• 2 Channels RF Remote Control Module DC 5V x1
