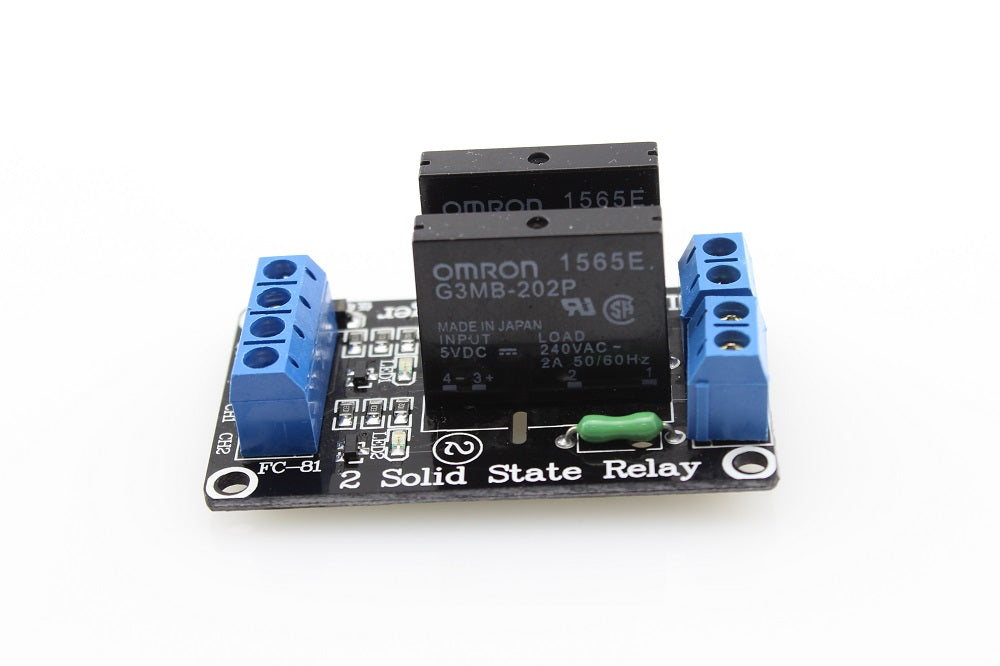

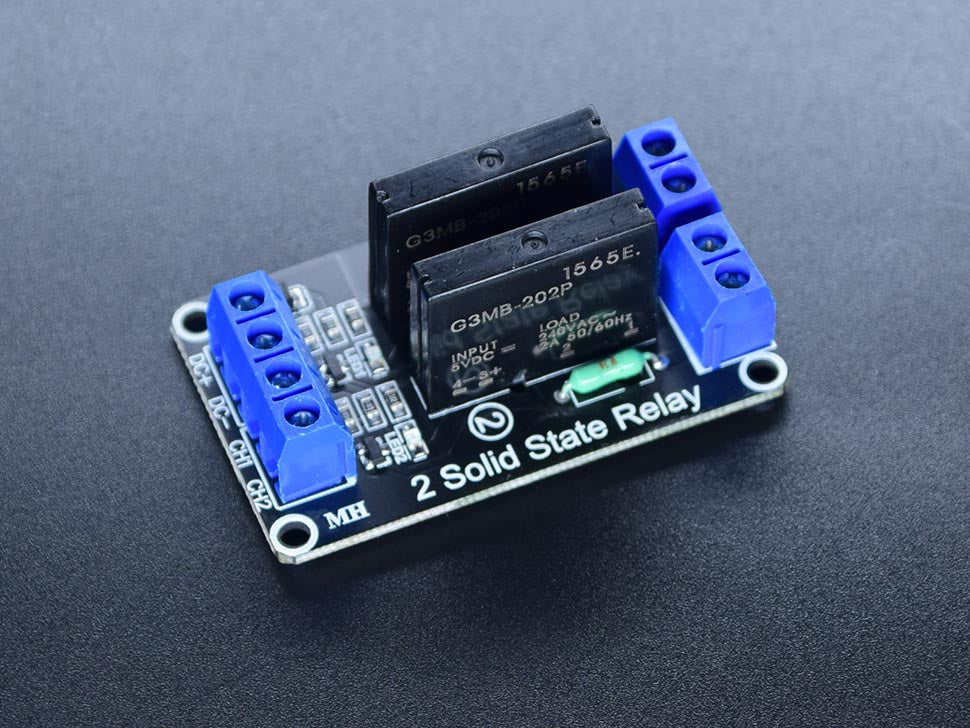

Relay Solid State Module 2 Channel
This solid-state relay functions as the same with the mechanical relay, but the difference is the mechanism of the switch. This relay consists of a sensor which responds to an appropriate control signal.
The relay operates with 5V, GND, and a digital input connected to your MCU.
You won't hear a ticking sound when this switch is turned on/off, unlike with the mechanical ones. It is also vibration proof and better anti- moisture-proof performance.
This solid-state relay module has two channels, which controlled separately. It uses Omron G3MB, to control current up to 2A @ 240VAC.
We also have the 1 channel, 4 channel and 8 channel solid-state relay version.
QUICK SPECS:
- Channel: 2
- Control Voltage: 5V
- Static Current:0mA
- Working Current:12.5mA
Relay Solid State Module 2 Channel
Relay Solid State Module 2 Channel
Out of stock
Product Code
SKU:ARE00202SL
