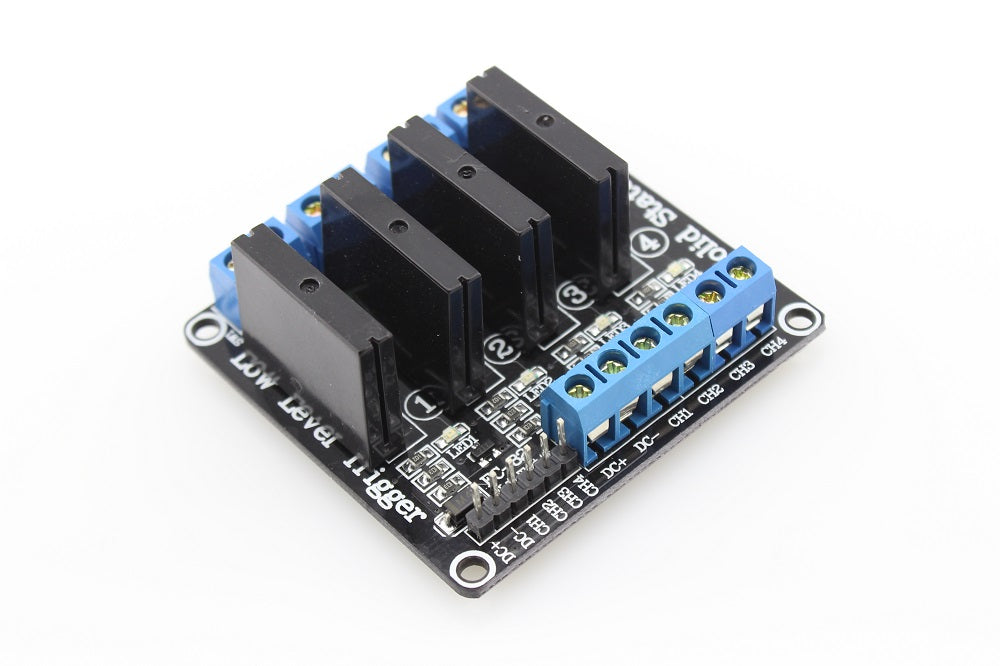

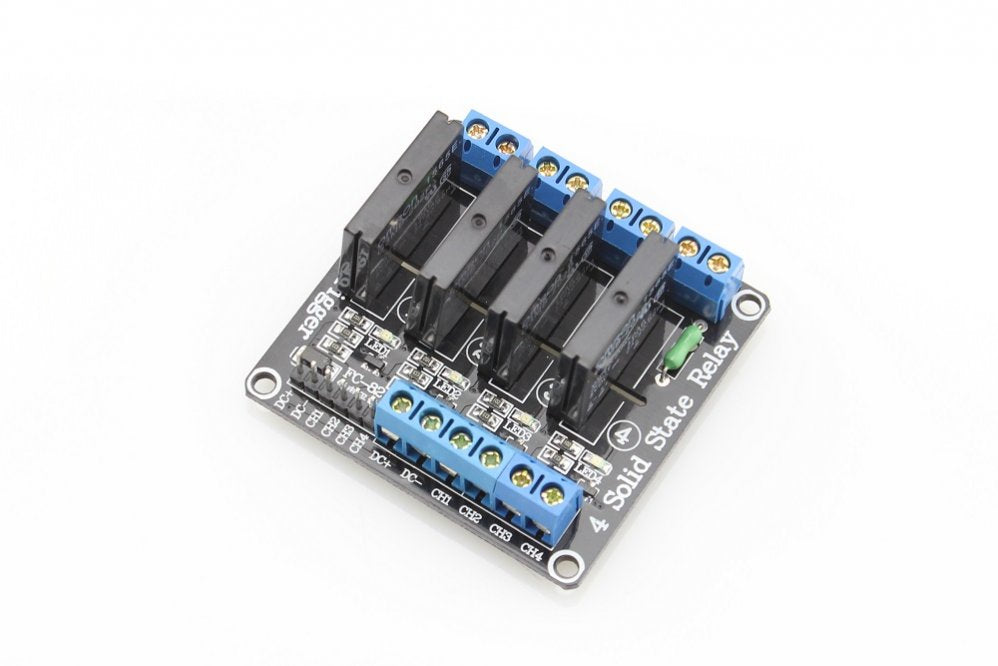

Relay Solid State Module 4 Channel


Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has better resistance to vibration and mechanical shock, and better moisture proof performance.
This Solid State Relay Module has four channels, which work and be controlled separately. it is based on Omron G3MB, to control current up to 2A@240VAC, can be widely used in various areas such as computer peripheral interfaces, temperature/speed light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.
There are also modules with single channel, 2 channels and even 8 channels for your choice.
Features
  • Channel:  4
  • Control Voltage:  5V
  • Static Current: 0mA
  • Working Current: 12.5mA
  • Trigger Voltage: 0-1.5V
  • Trigger Current: 2mA
Instructions
  • DC+: Connect power positive
  • DC-: Connect power negative
  • CH1, 2, 3, 4: Relay module signal trigger end(Low level trigger is effective)
  • Wiring: When the triggered by low voltage, current will get through.
Usage

Relay Solid State Module 4 Channel

Relay Solid State Module 4 Channel

Out of stock

Product Code

SKU:AB250

Regular price ₱ 325.00
Regular price Sale price ₱ 325.00
