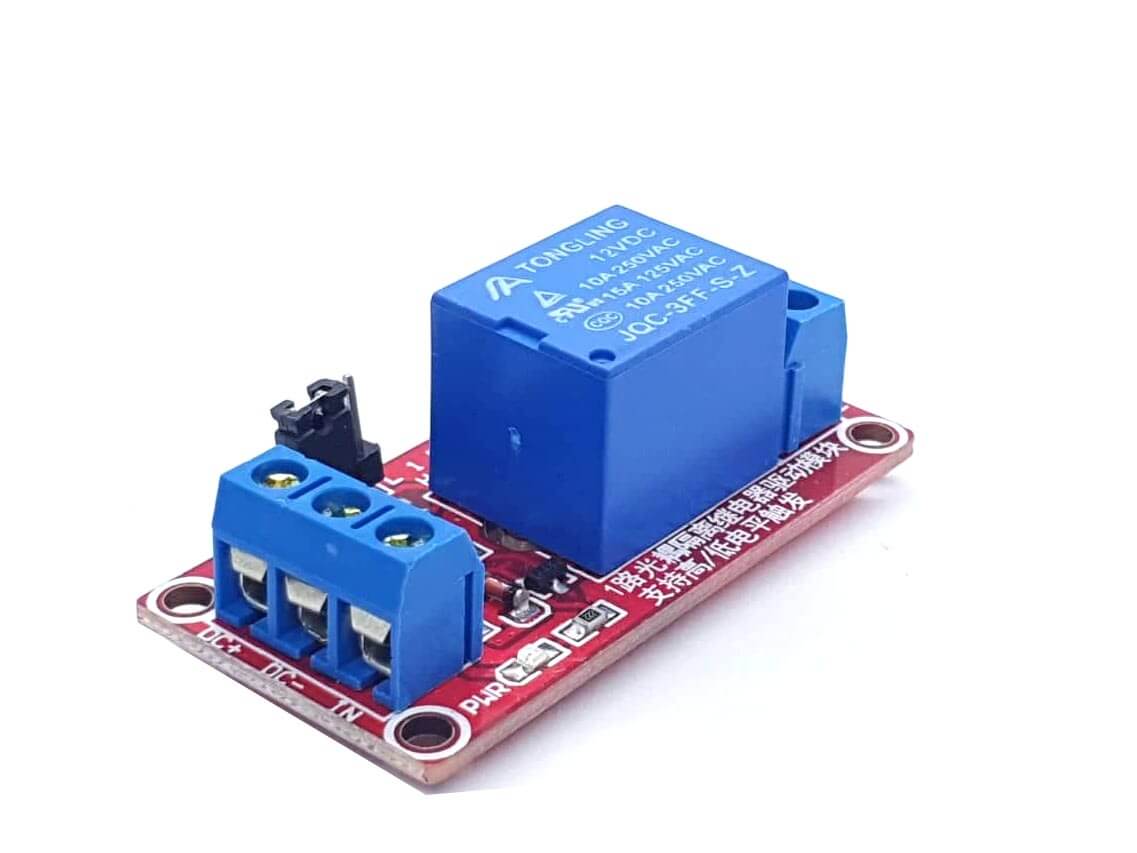

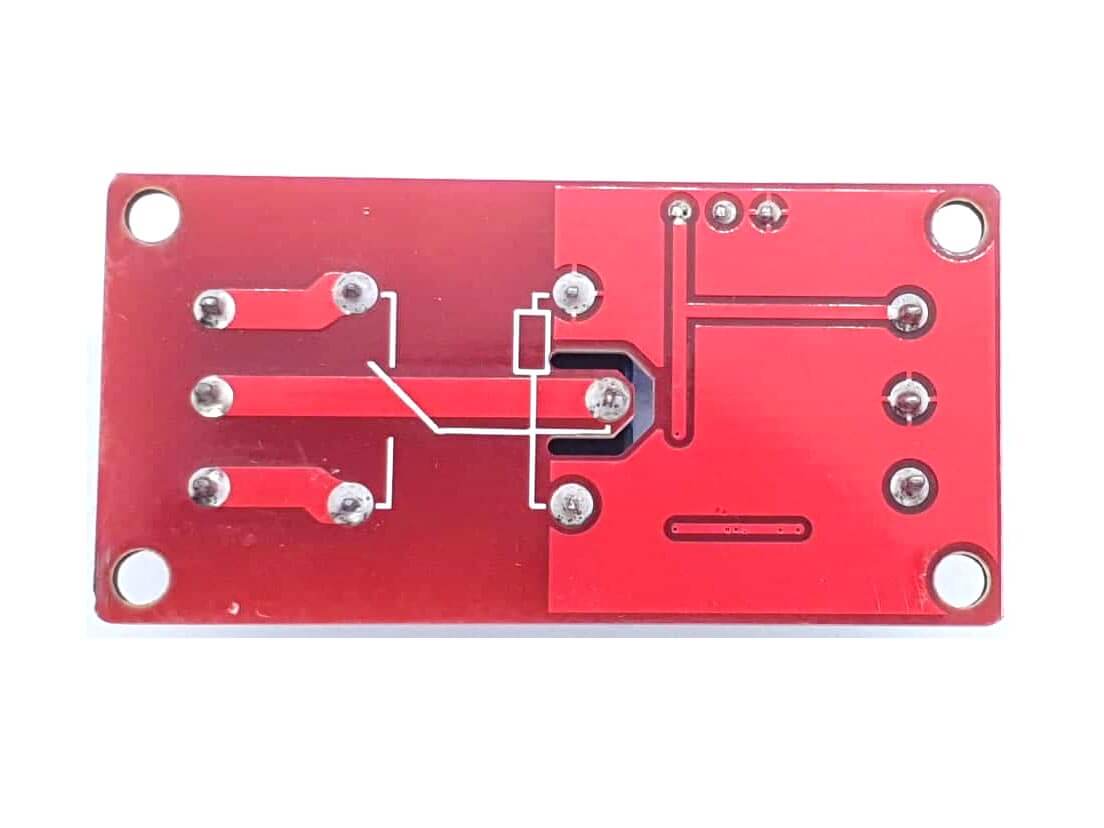

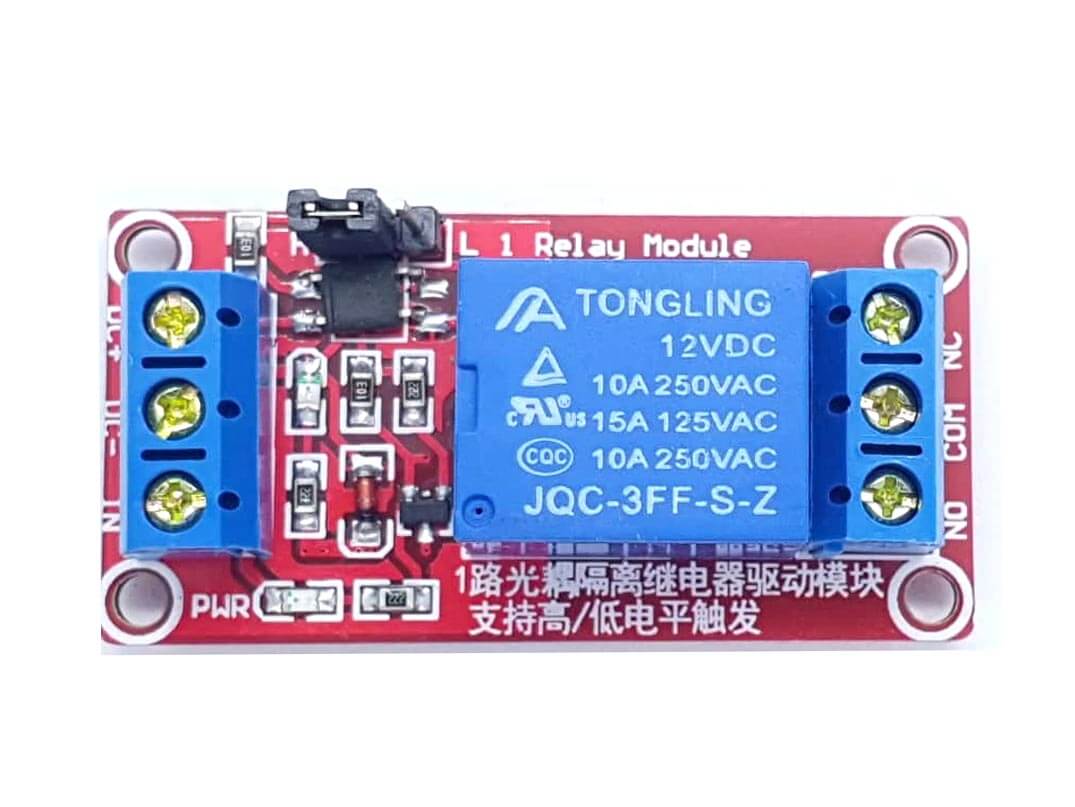

Relay 1 Channel 12V Level Trigger Optocoupler Module


This relay can be logically controlled with a 12V device. It is equipped with a optocoupler to safely separate high-voltage and low-voltage components.

QUICK SPECS:

  • It can control a load of AC 250V 10A or DC 30V/10A
  • Triggering current: 5mA
  • Working voltage: 12V
  • Dimensions L x W x H: 50 x 26 x 18.5mm
  • It has four mounting holes with 3.1mm diameter each.

Module Control:

  • Positive Power Supply as DC+
  • Negative Power Supply  as DC-
  • Control input as IN

Relay Outputs:

  • Normally Open: NO
  • Common Interface: COM
  • Normally Closed: NC

Relay 1 Channel 12V Level Trigger Optocoupler Module

Relay 1 Channel 12V Level Trigger Optocoupler Module

200 in stock

Product Code

SKU:AM012-12V

Regular price ₱ 59.00
Regular price Sale price ₱ 59.00
Sale Sold out
