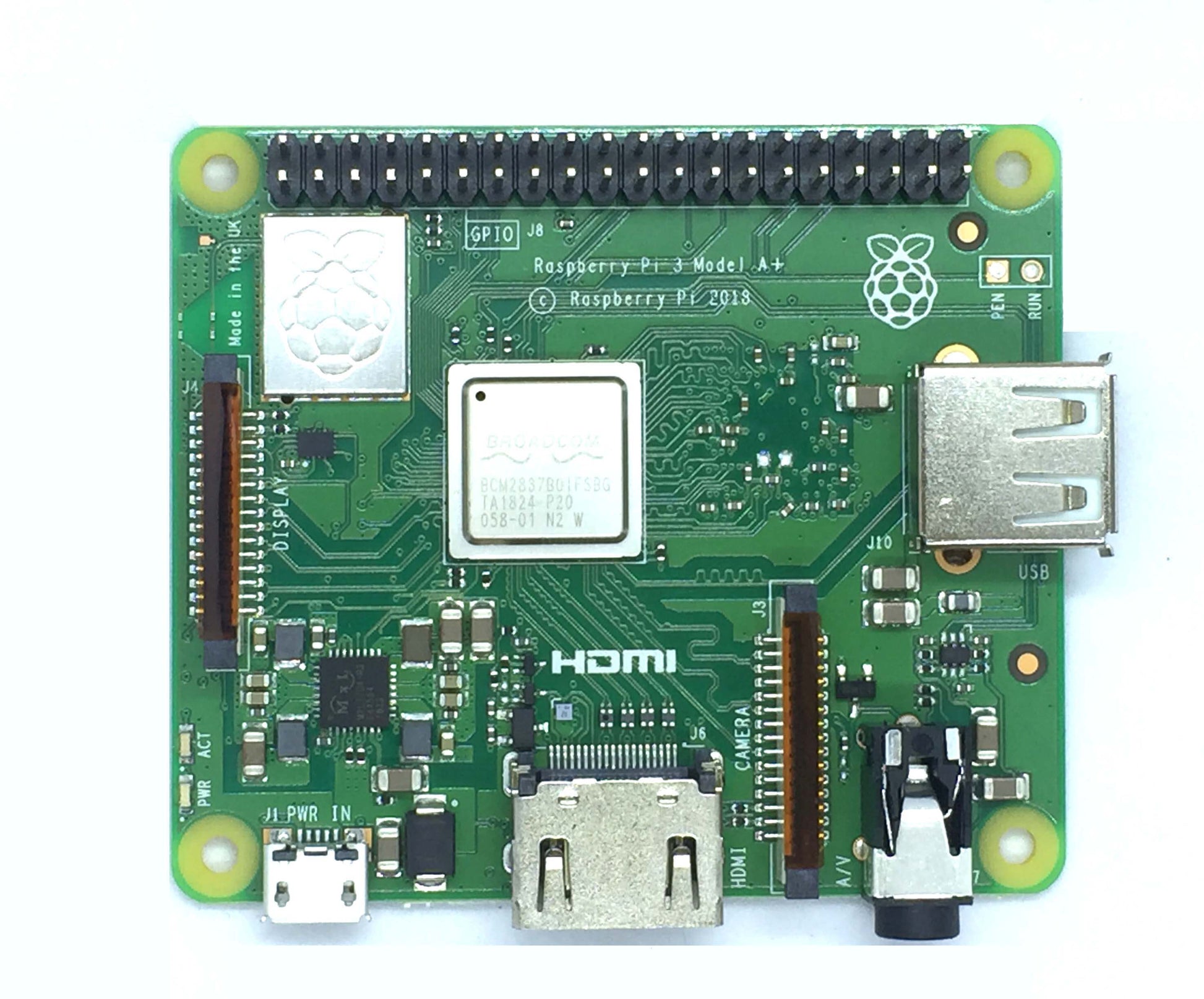

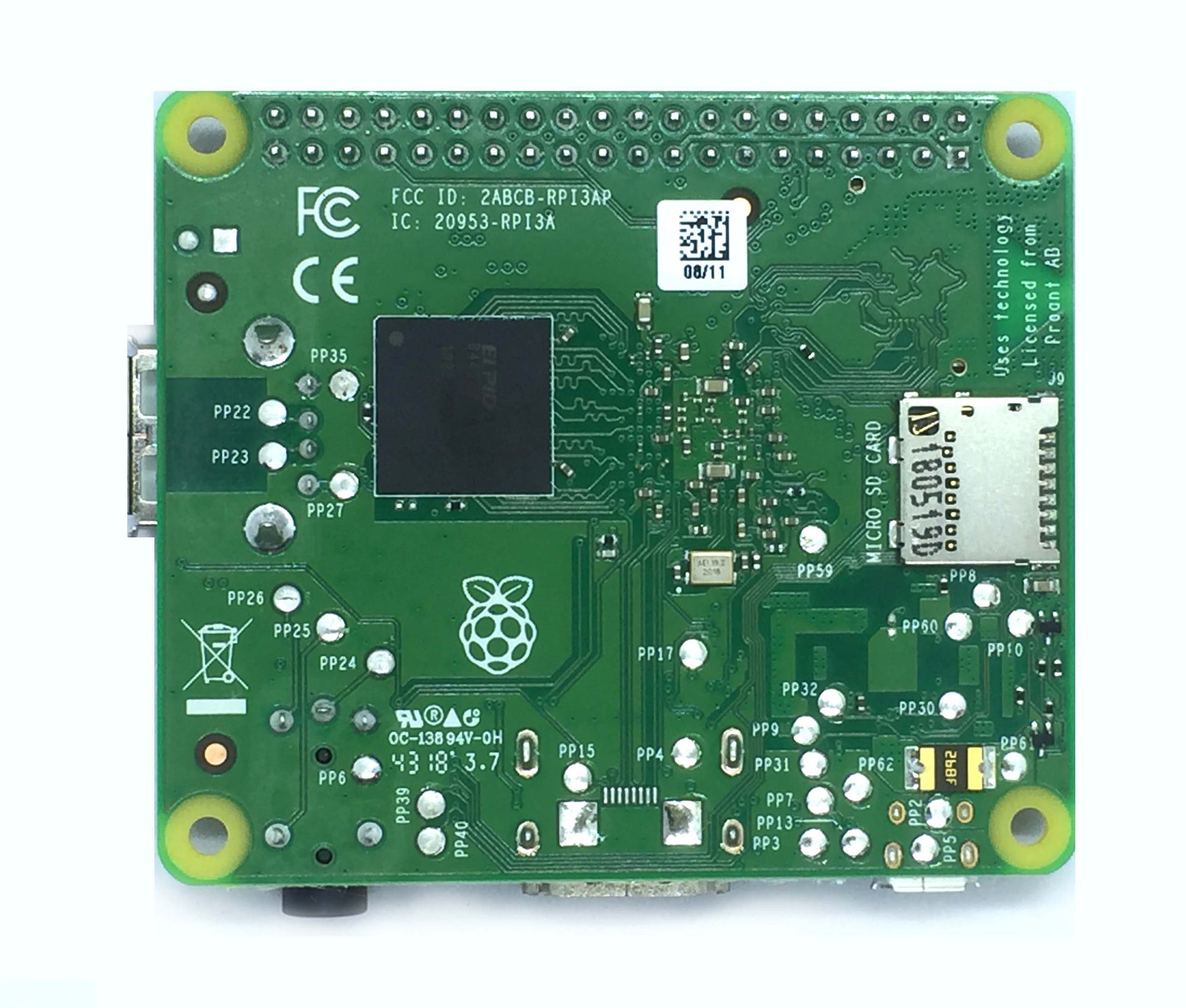

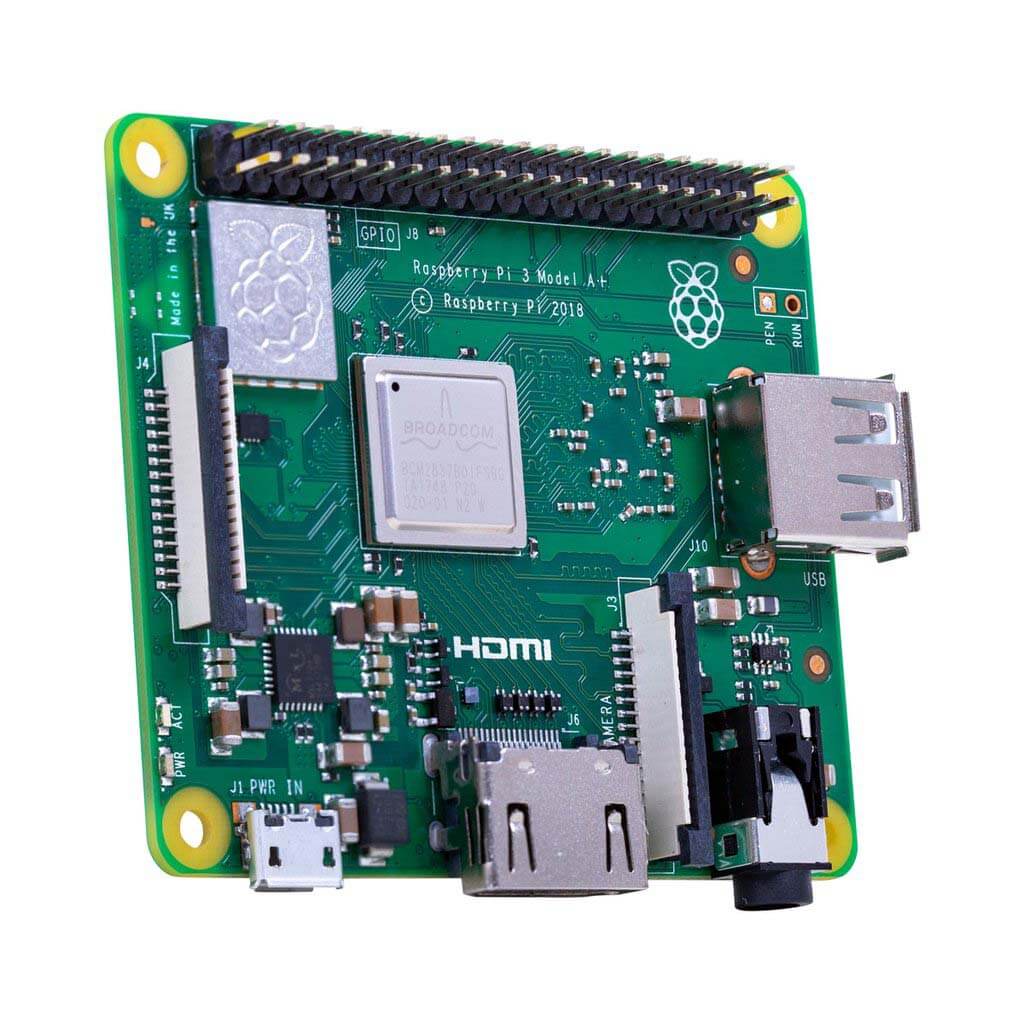

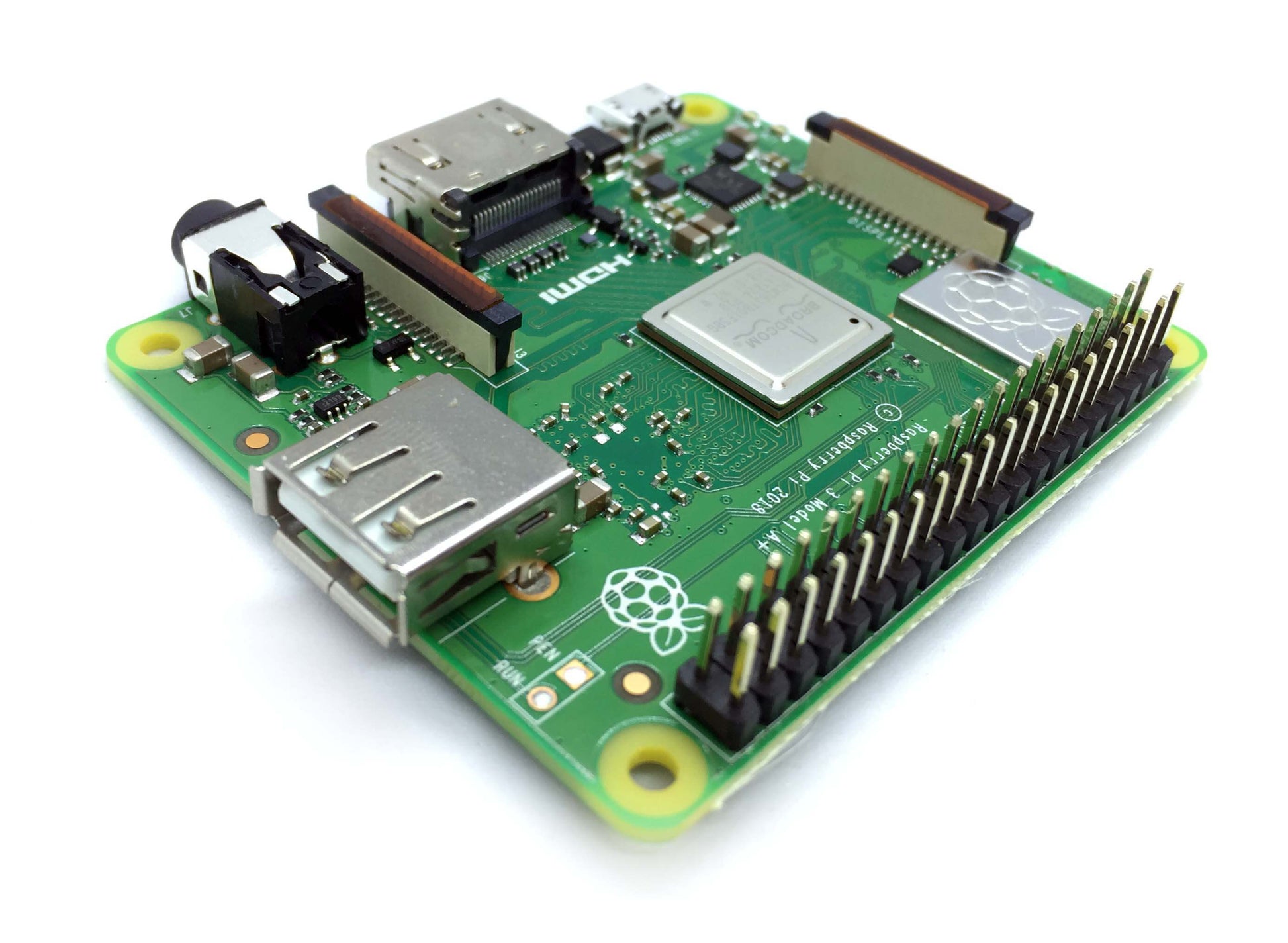

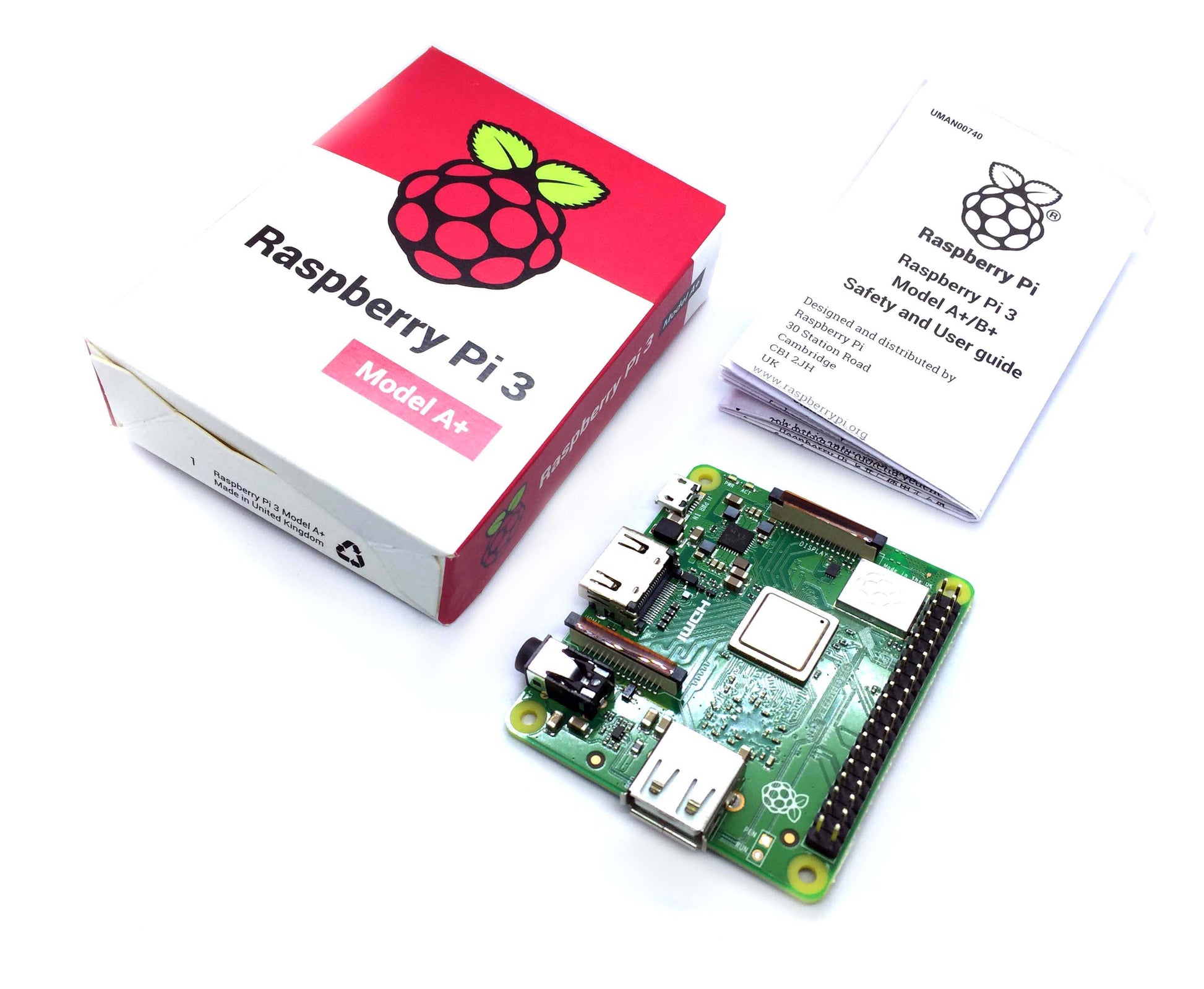

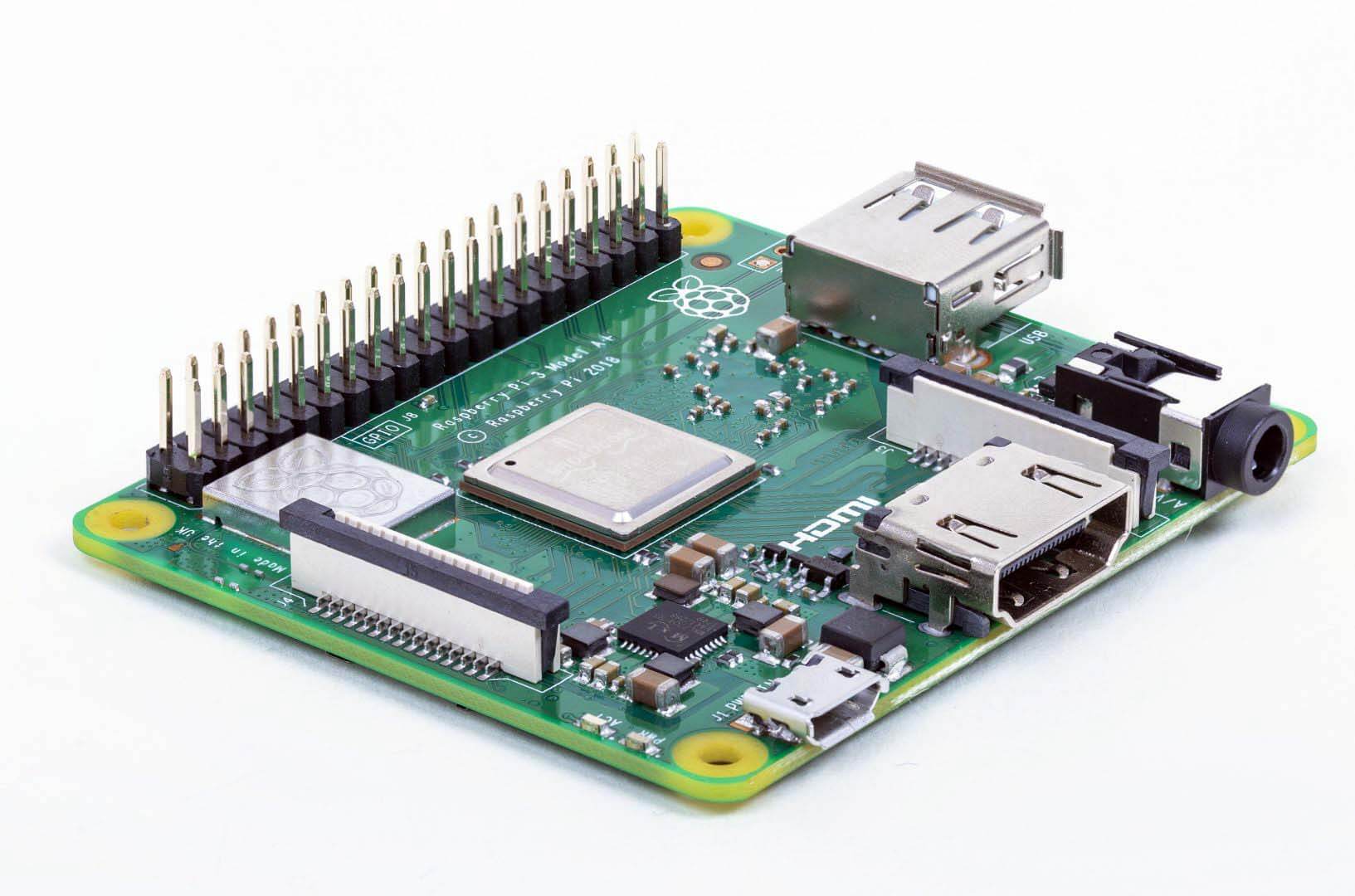

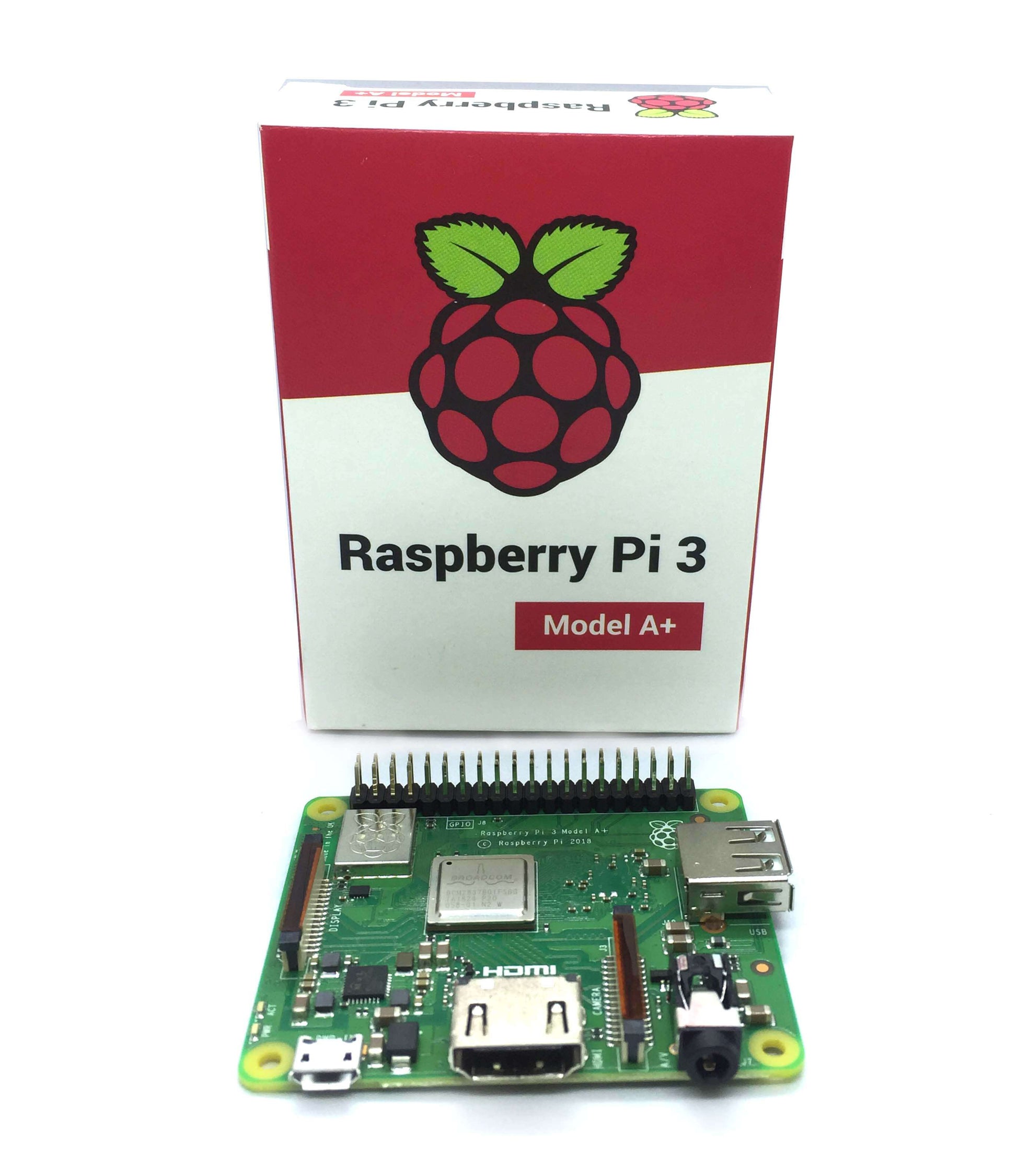

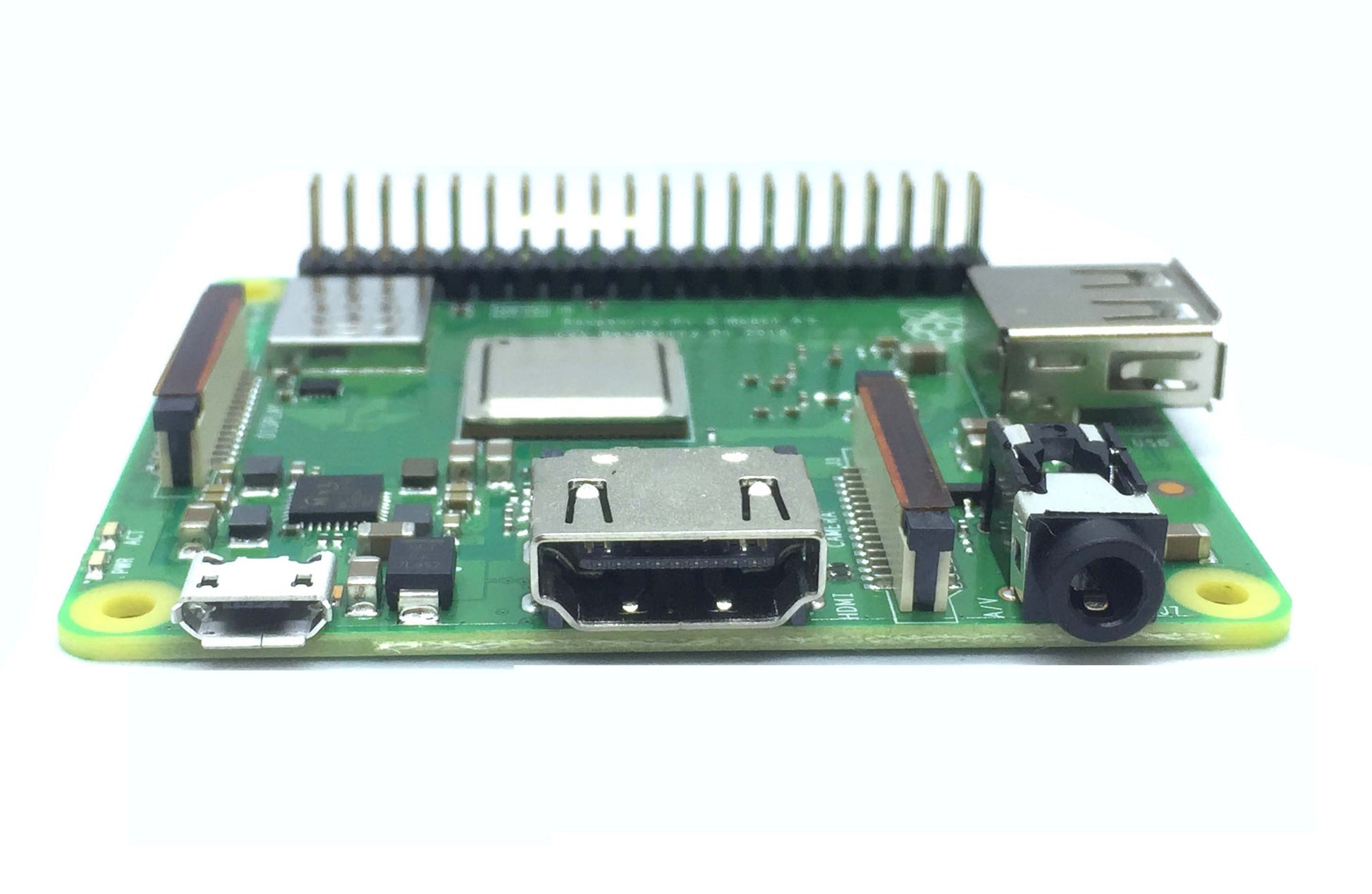

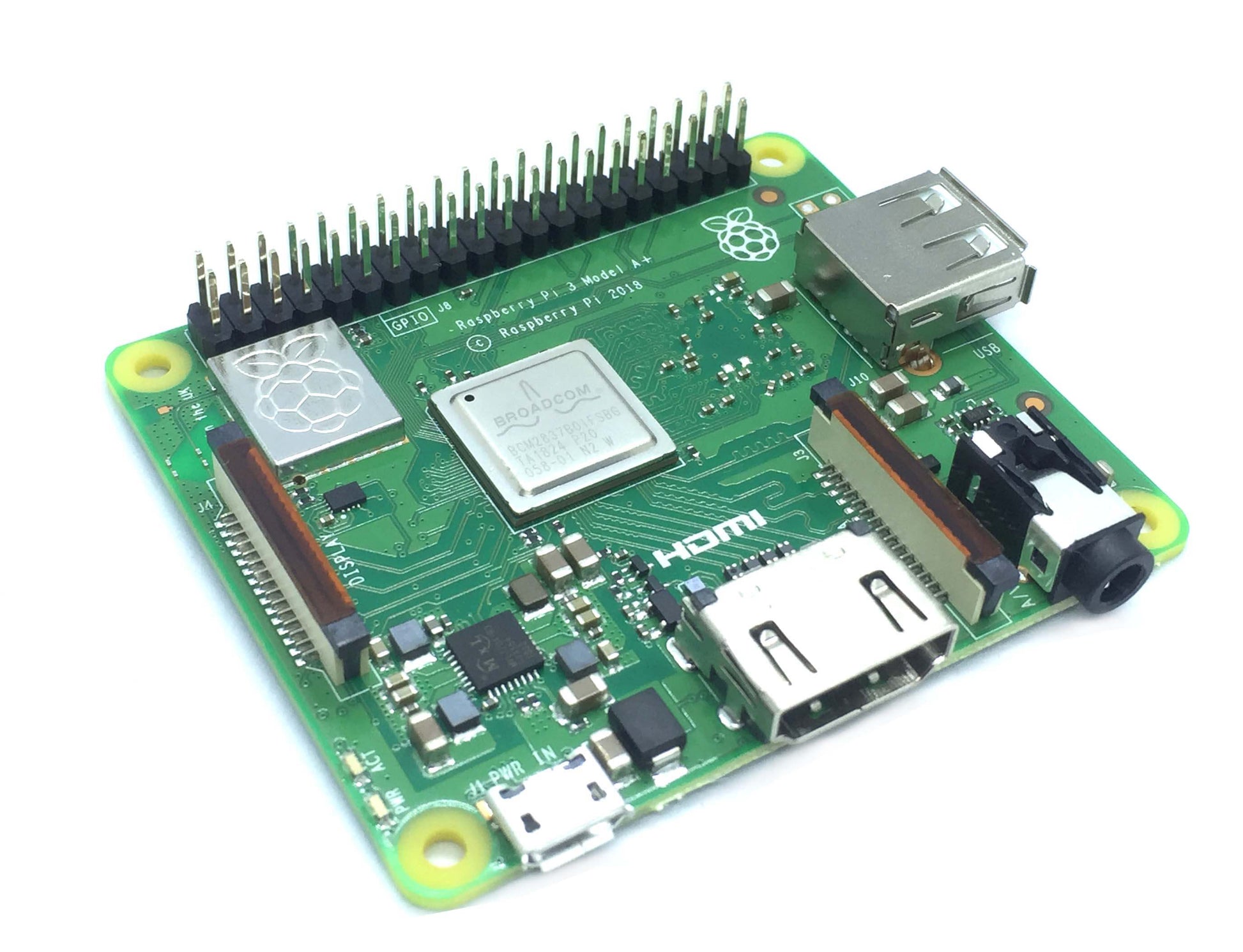

Raspberry Pi 3 Model A+ delivers the core performance of the 3B+ in a smaller, lighter board. 1.4 GHz 64-bit quad-core CPU, 512MB RAM, dual-band Wi-Fi, and Bluetooth 4.2, with one USB port and no Ethernet.
Good fit for embedded products, media players, and interactive installations where you want a full Linux computer with strong wireless but don't need lots of USB ports or wired networking.
Specs
| Processor | Broadcom BCM2837B0, quad-core Arm Cortex-A53 64-bit @ 1.4 GHz |
| Memory | 512 MB LPDDR2 SDRAM |
| Wireless | Dual-band 2.4/5 GHz 802.11b/g/n/ac Wi-Fi, Bluetooth 4.2, BLE |
| Ethernet | None (use USB adapter) |
| USB | 1 × USB 2.0 |
| Display | Full-size HDMI, DSI connector |
| Camera | CSI camera connector |
| Audio/Video | 3.5 mm AV jack (stereo + composite) |
| Storage | microSD card slot |
| GPIO | 40-pin header, 3.3V logic |
| Power | 5V DC via micro-USB (2.5A recommended) |
| Size | ~65 × 56 mm |
GPIO is 3.3V. Use level shifters when interfacing with 5V sensors or logic.
