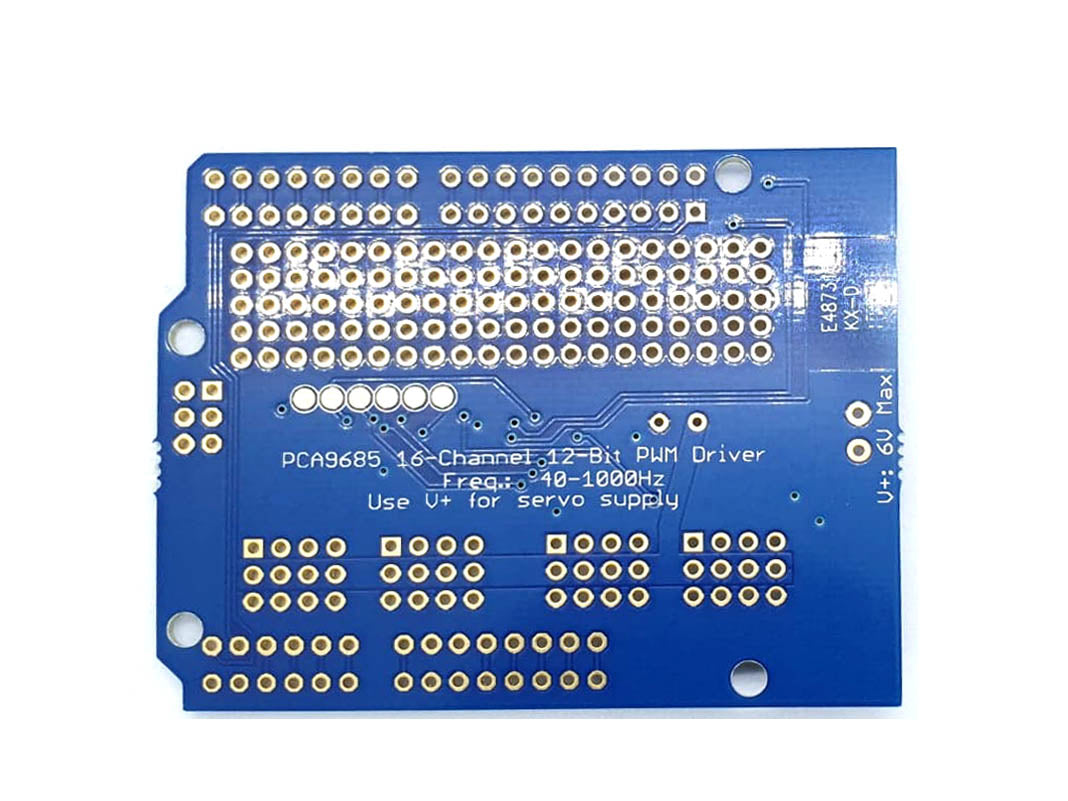

PWM Servo 16-Channel 12-bit Shield I2C interface Adafruit


When we saw this chip, we quickly realized what an excellent add-on this would be. Using only two I2C pins, control 16 free-running PWM outputs! You can even stack up 62 shields to control up to 992 PWM outputs (which we would really like to see since it would be glorious and like 4 feet tall) Because I2C is a shared bus you can also connect other I2C devices and sensors to the SCL/SDA pins as long as their addresses don't conflict (this shield has address 0x40)

  • There's an I2C-controlled PWM driver with a built-in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it to signal to tie up your microcontroller, it's completely free running!
  • It is 5V compliant, which means you can control it from a 3.3V Arduino and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
  • 6 address select pins so you can stack up to 62 of these on a single i2c bus. 12 out of 16 output pins can be accessed when stacked.
  • Adjustable frequency PWM up to about 1.6 kHz
  • 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
  • Configurable push-pull or open-drain output

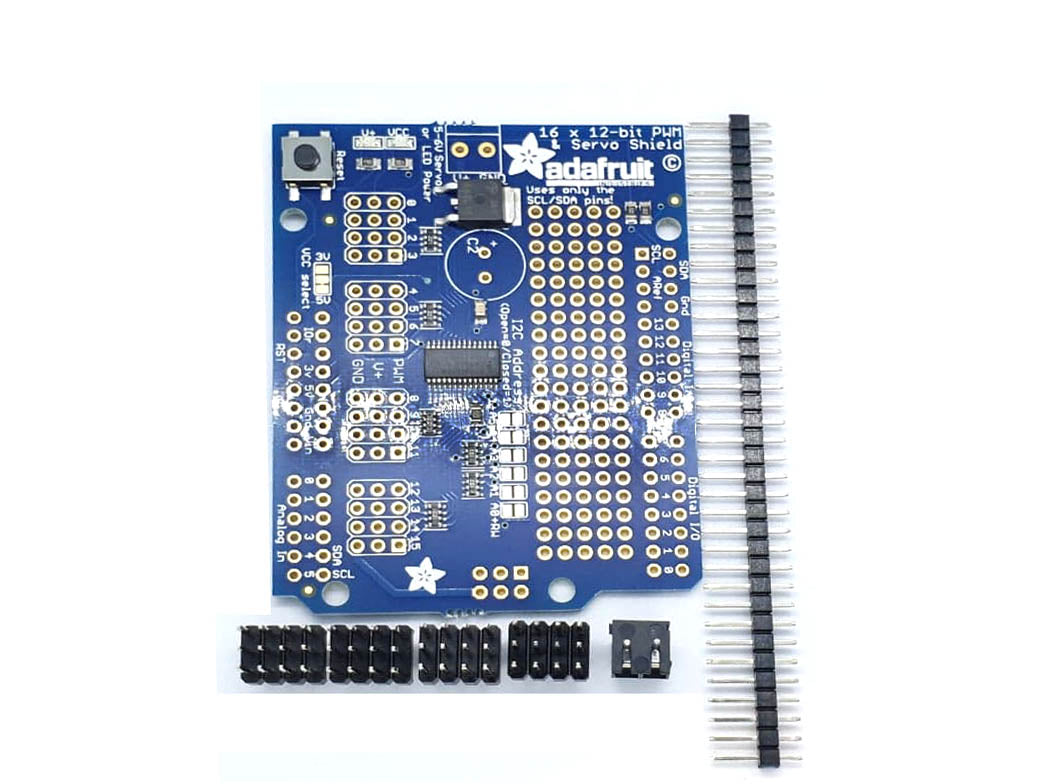

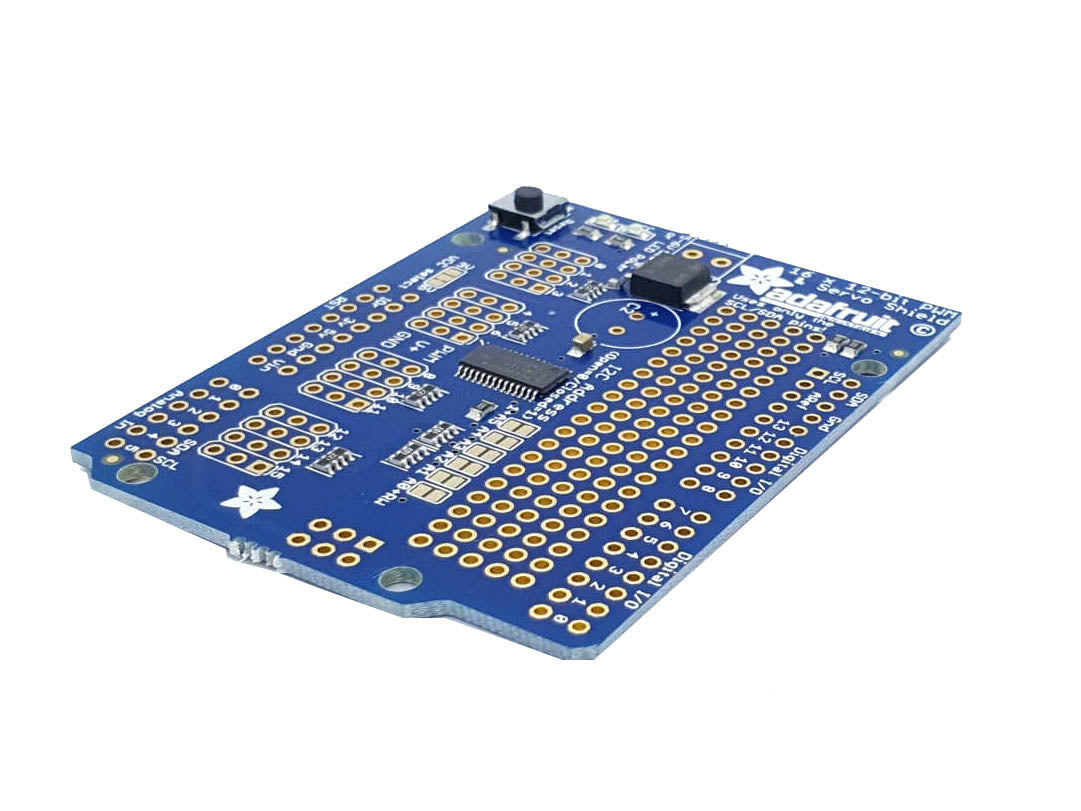

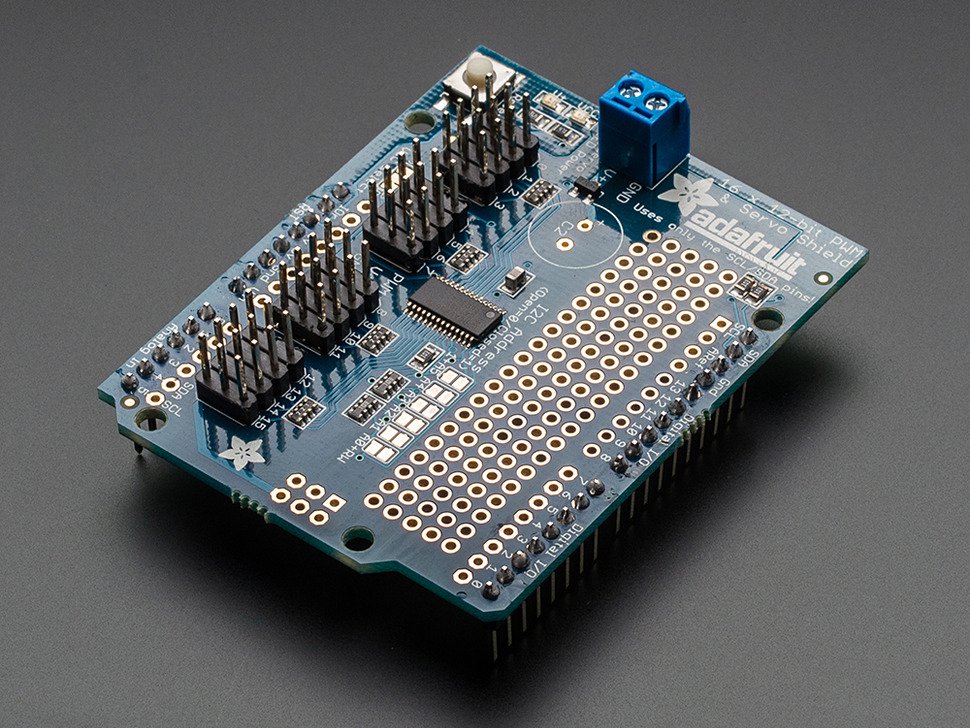

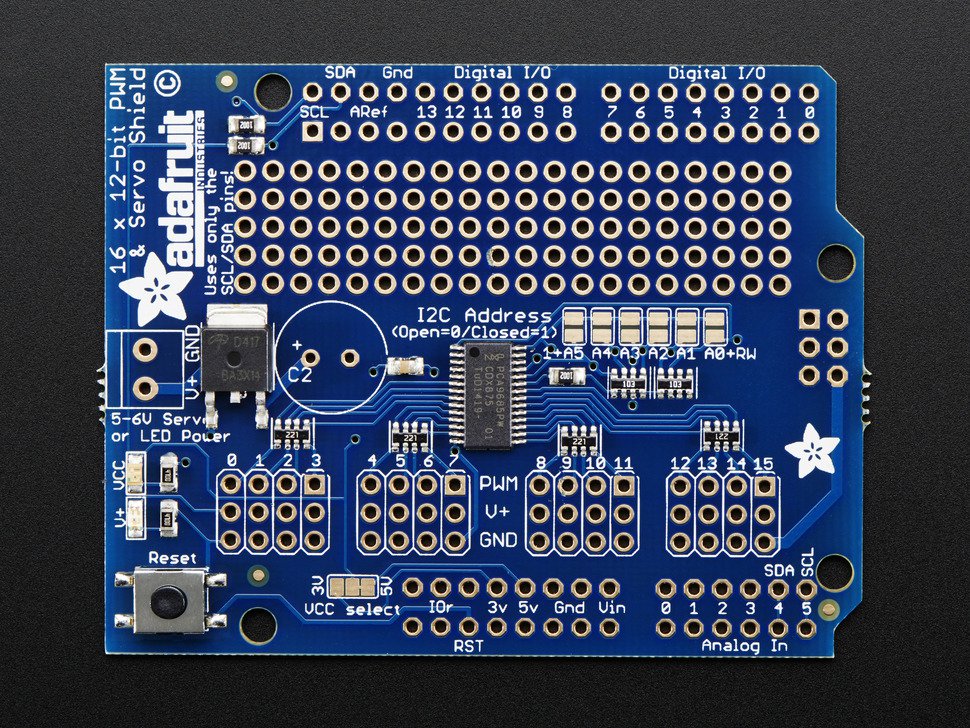

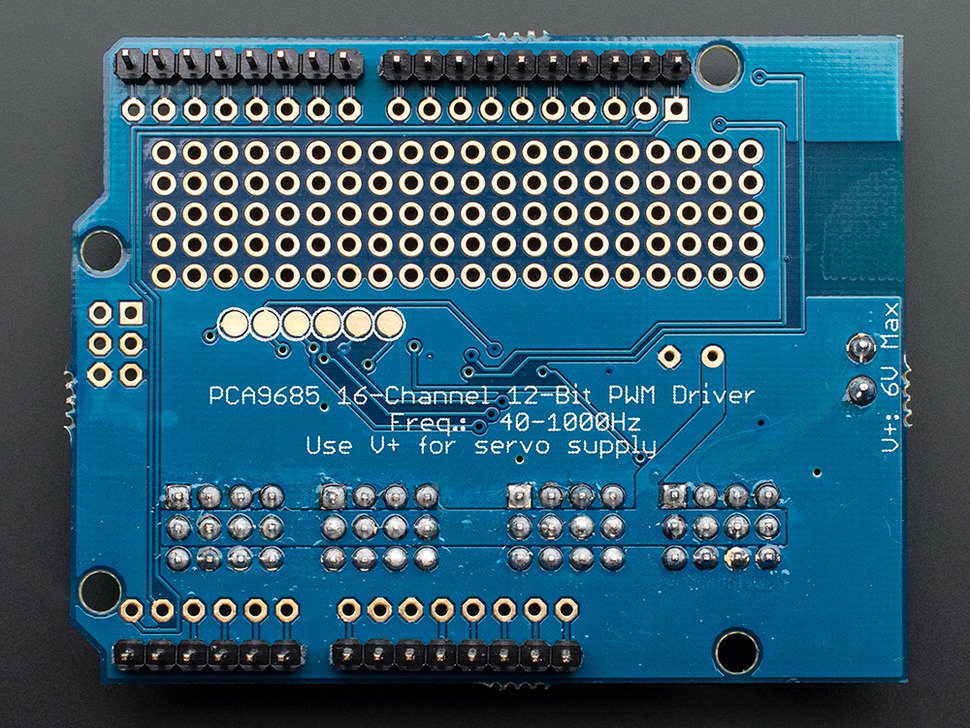

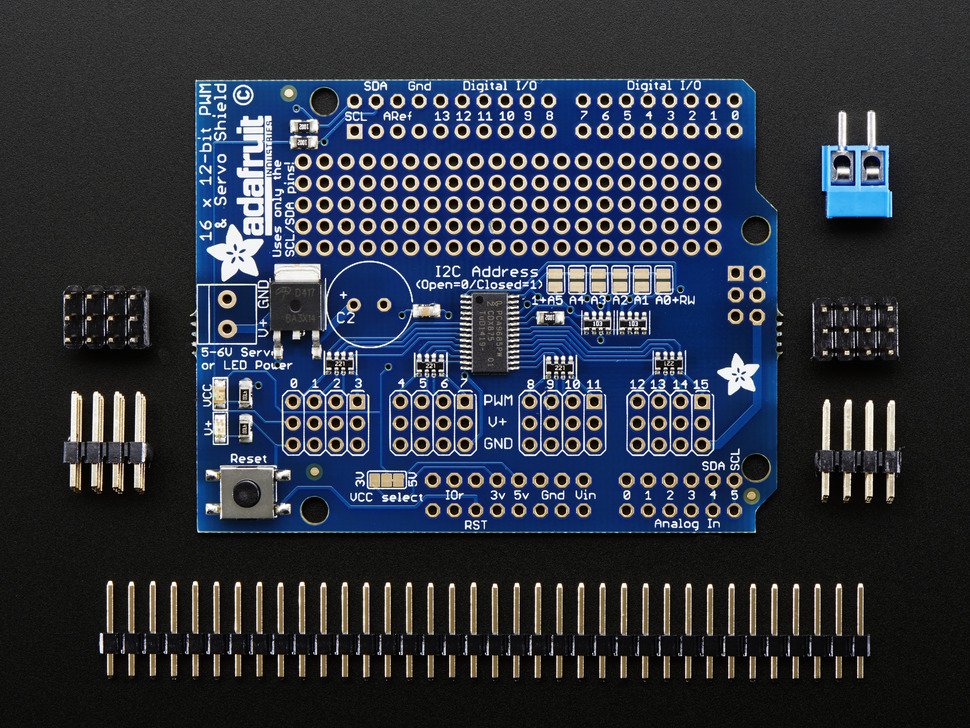

We wrapped up this lovely chip into a shield with a couple of nice extras
  • Terminal block for power input (or you can use the 0.1" breakouts on the side)
  • Reverse polarity protection on the terminal block input
  • Green and red power-good LEDs

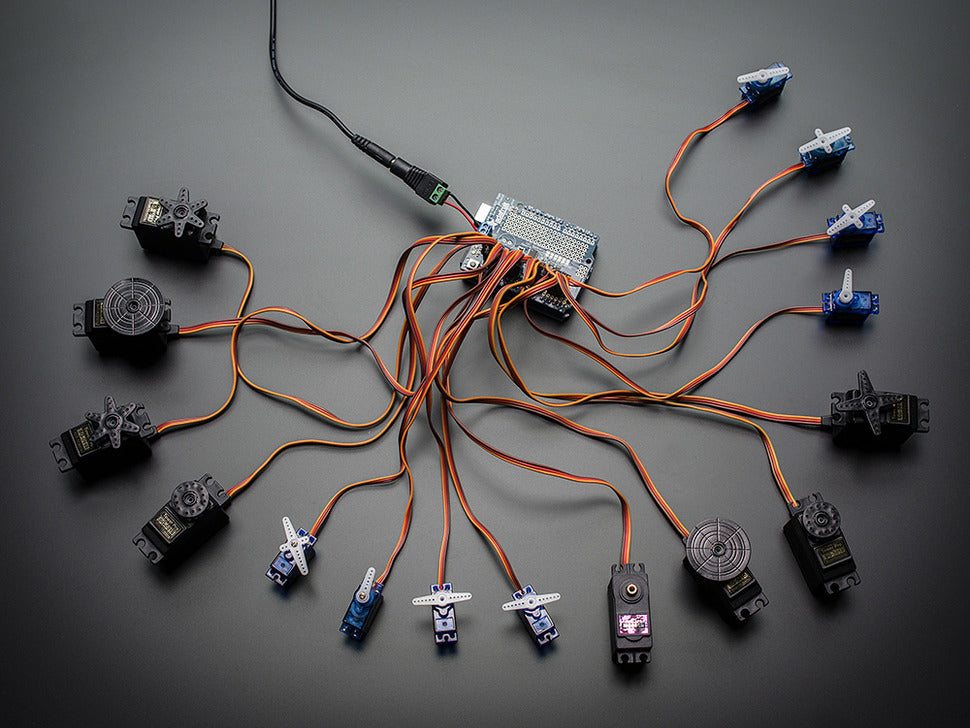

  • 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header

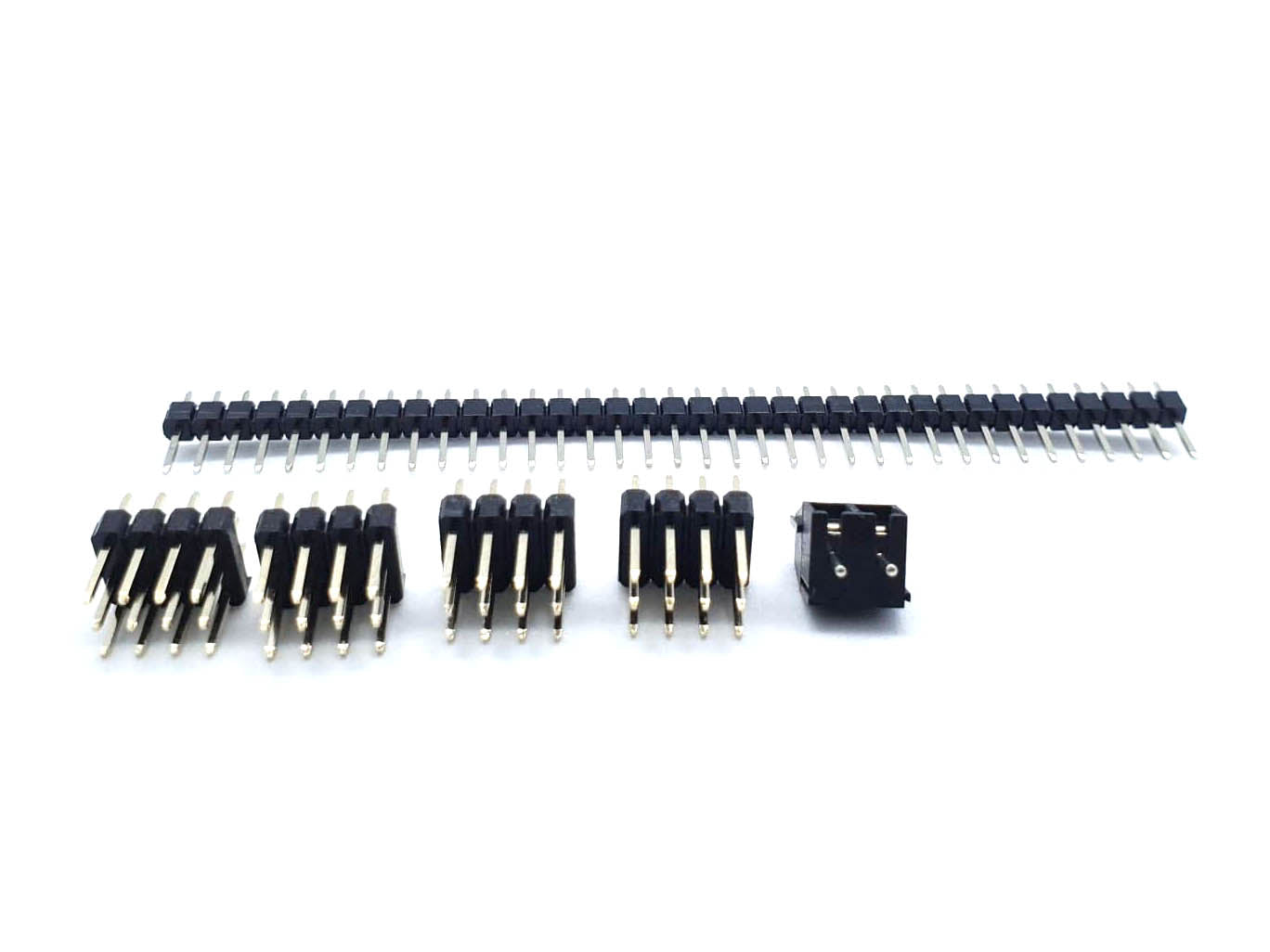

  • Stackable design. You'll need to pick up stacking headers and right-angle 3x4 headers in order to stack on top of this shield without the servo connections getting in the way.
  • A spot to place a big capacitor on the V+ line (in case you need it)
  • 220-ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
  • Solder jumpers for the 6 address select pins
  • A lot of extra space remaining? Let's turn it into a prototyping area. You get a 5x20 proto area for any extra wiring you'd like to add

Servos and Arduino not included - but we do sell tons of different servos in the shop so pick up a few while you're here!

Note: The terminal blocks included with your product may be blue or black.

PWM Servo 16-Channel 12-bit Shield I2C interface Adafruit

PWM Servo 16-Channel 12-bit Shield I2C interface Adafruit

Low stock: 2 left

Product Code

SKU:1411

Regular price ₱ 1,075.00
Regular price Sale price ₱ 1,075.00
