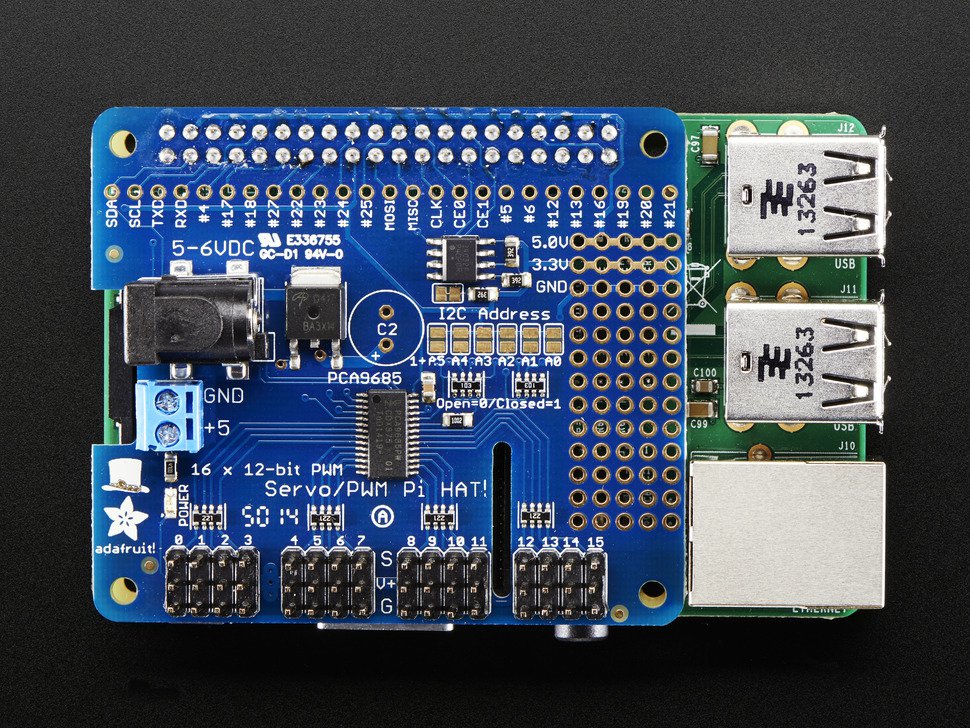

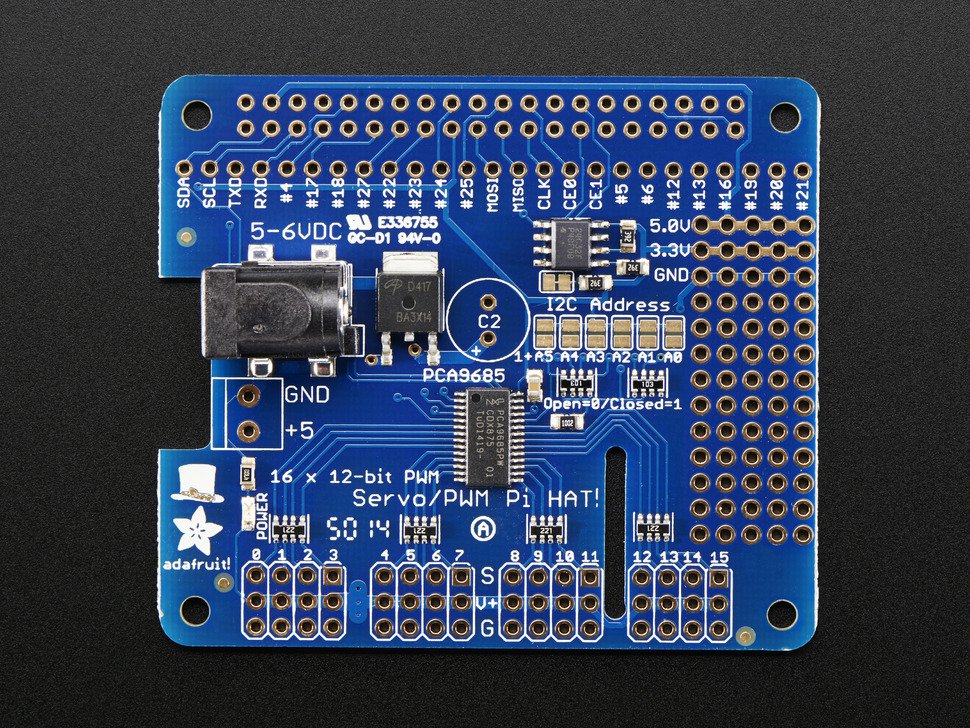

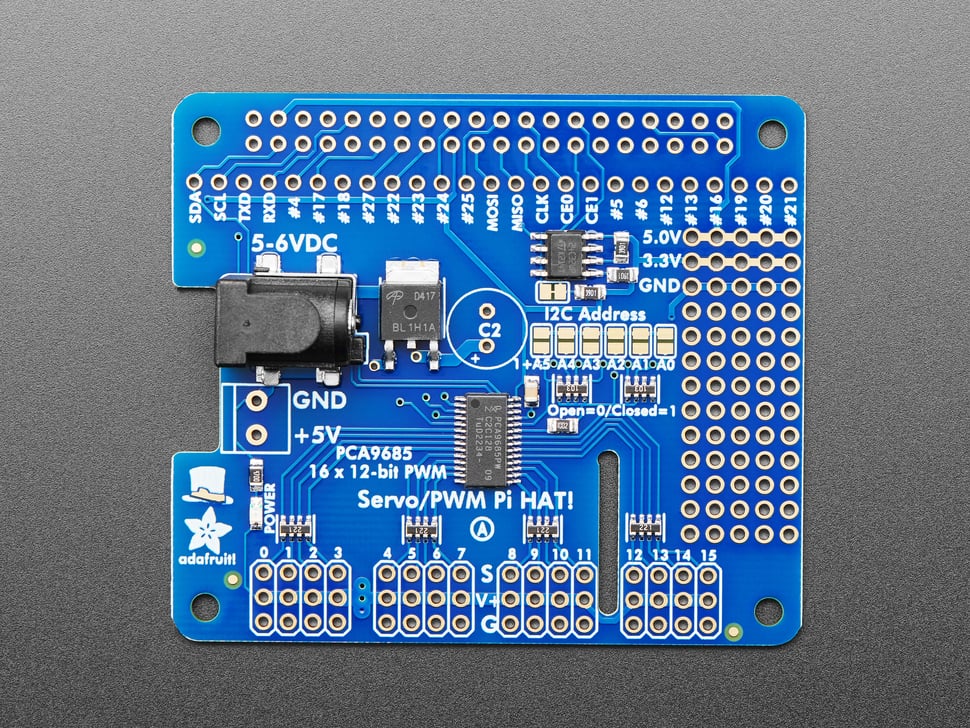

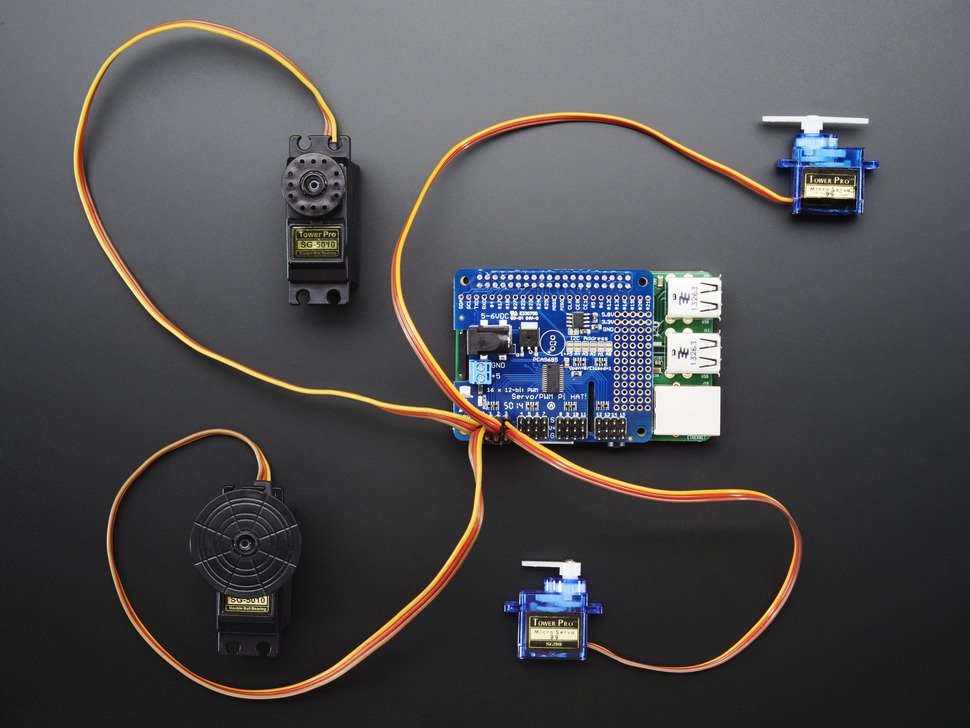

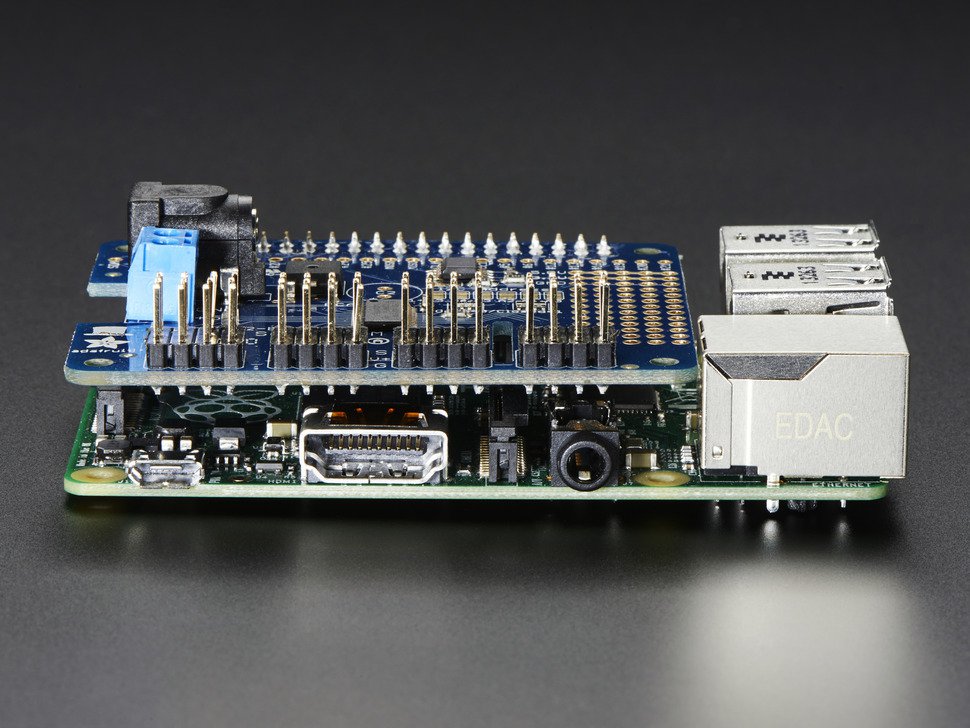

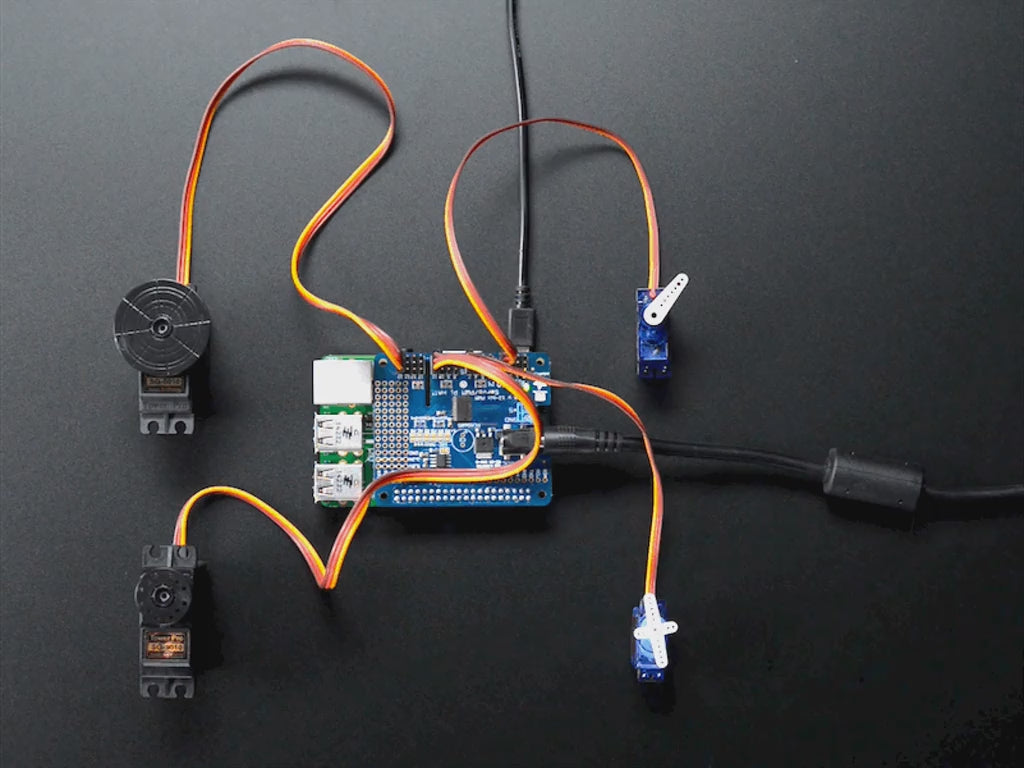

Adafruit 16-Channel PWM / Servo HAT for Raspberry Pi - Mini Kit is an official Adafruit product available from Circuitrocks, an official distributor of Adafruit. A Raspberry Pi HAT that adds precise multi-channel PWM and servo control over I2C.

Why choose this Adafruit board or module?

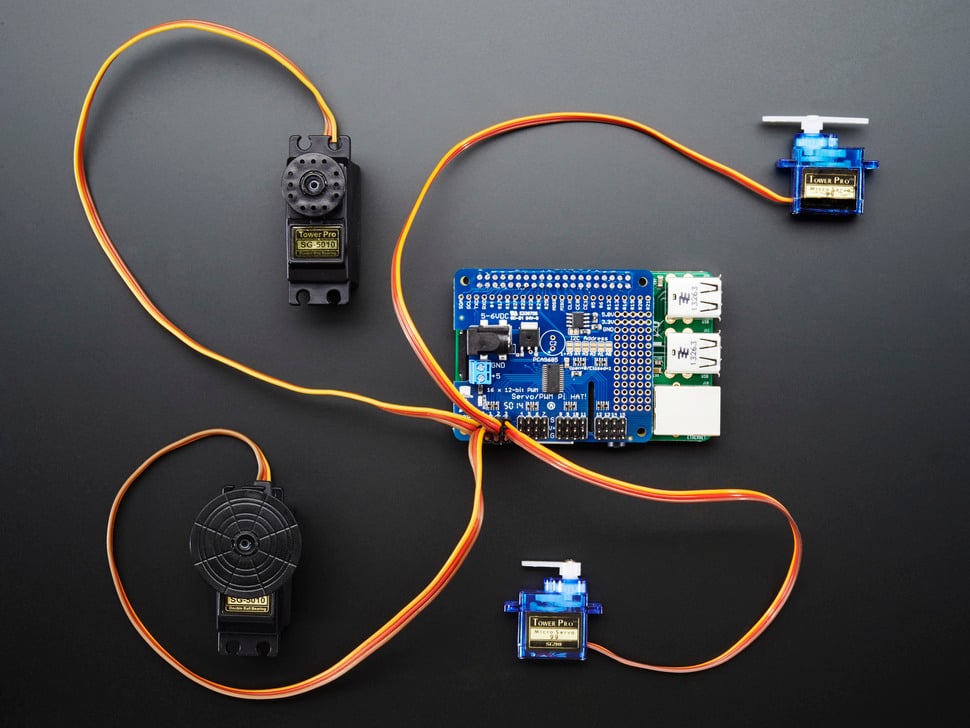

• Drive up to 16 servos from one HAT
• Uses only two Pi pins over I2C

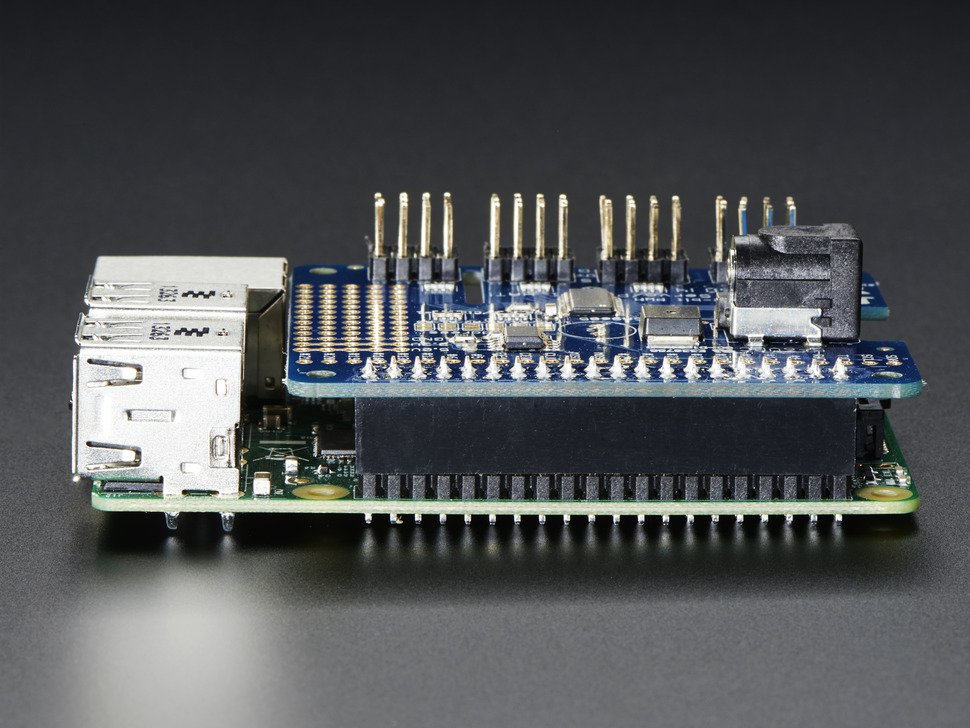

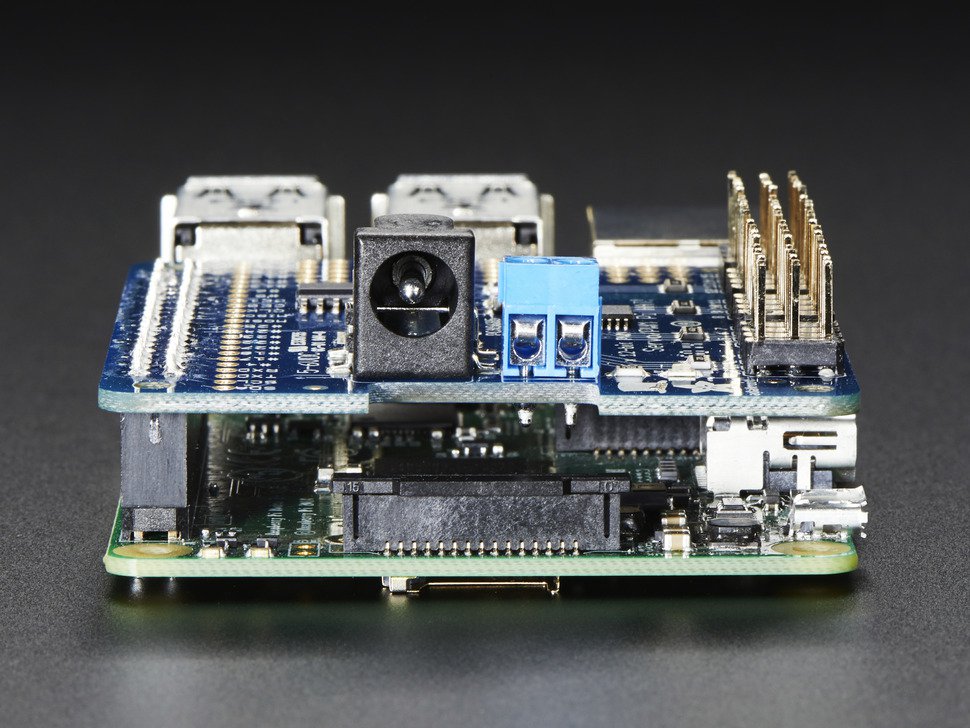

• Stackable for large multi-servo projects

What you can build

Robot arms, Animatronics, Servo clusters and motion control rigs.

Technical description

Adafruit 16-Channel PWM / Servo HAT for Raspberry Pi - Mini Kit is designed for makers, engineers, and educators who need a genuine Adafruit part with dependable documentation, known compatibility, and easy access to official support material. It is a practical choice for prototyping, testing, and repeatable electronics builds.

Technical specifications

Pinout & power notes

Servo power should come from a suitable external 5V supply sized for your motors.

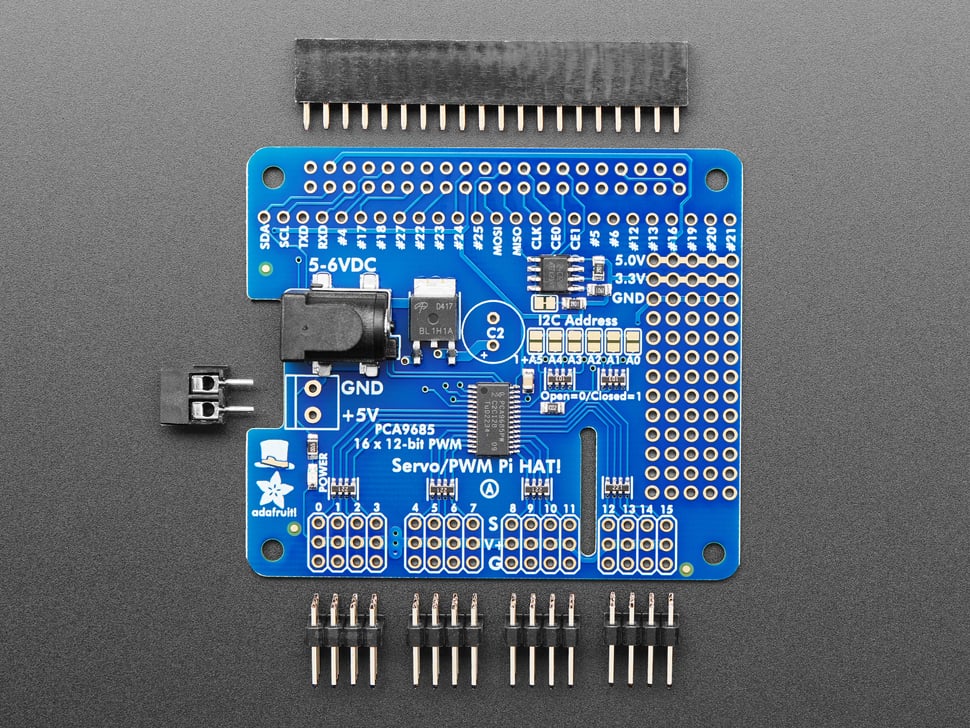

What’s in the box

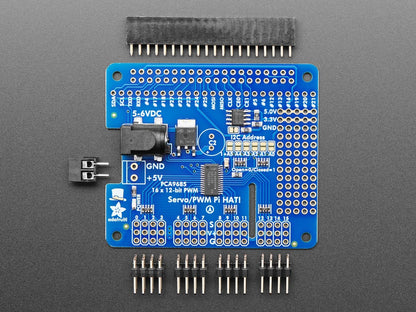

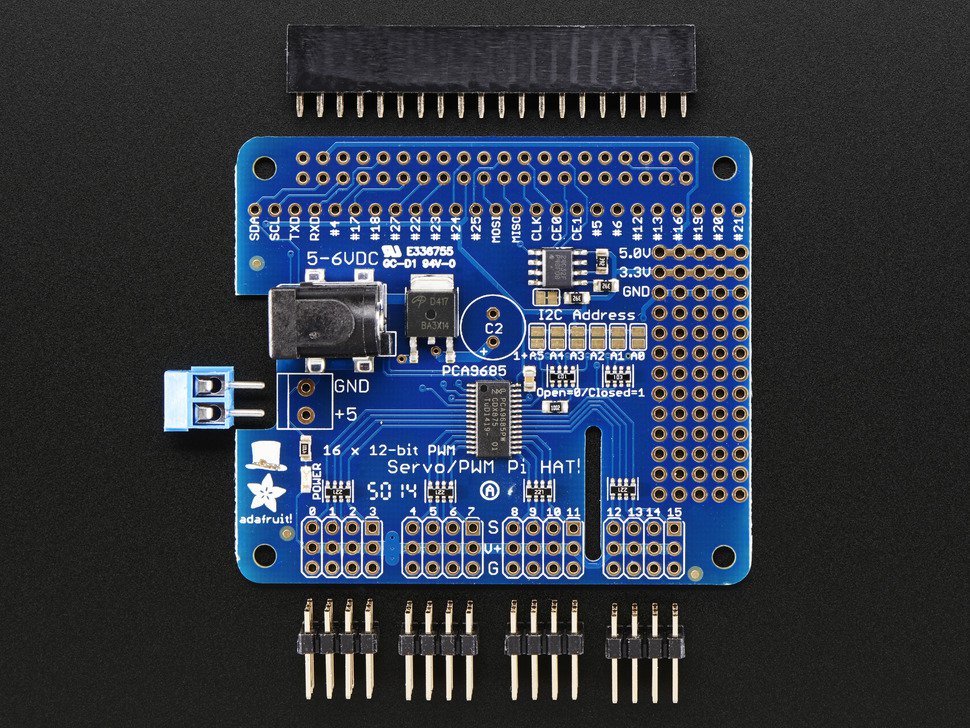

HAT PCB, headers, and terminal block.

Official resources

Manufacturer product page: https://www.adafruit.com/product/2327
Guide / tutorial: https://learn.adafruit.com/adafruit-16-channel-servo-driver-with-raspberry-pi
Datasheet / downloads / documentation: https://learn.adafruit.com/adafruit-16-channel-pwm-slash-servo-hat-for-raspberry-pi

Need this for a student build, prototype, or production-ready electronics project? Circuitrocks helps makers, schools, and developers source genuine Adafruit products with access to official documentation and manufacturer references.
