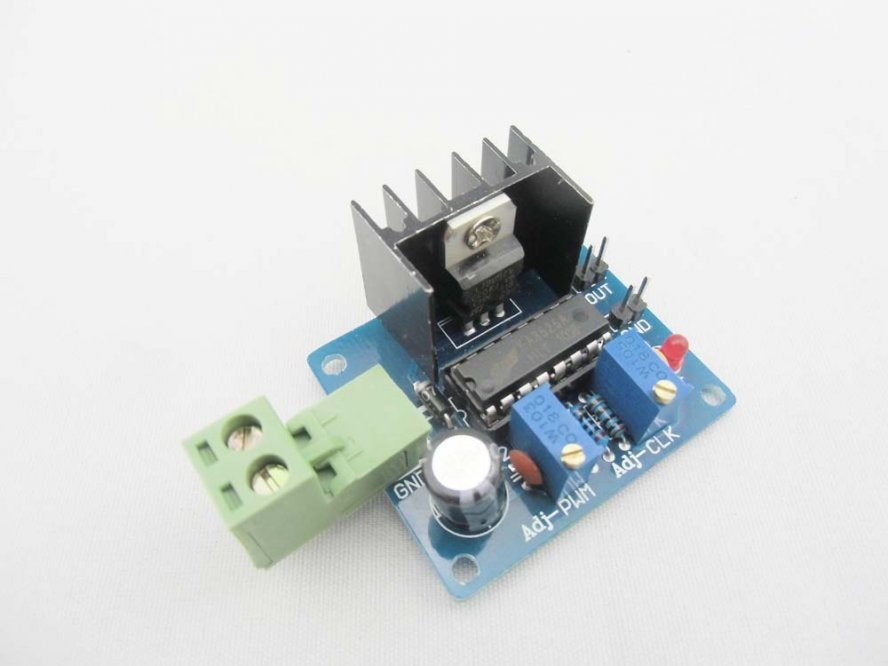

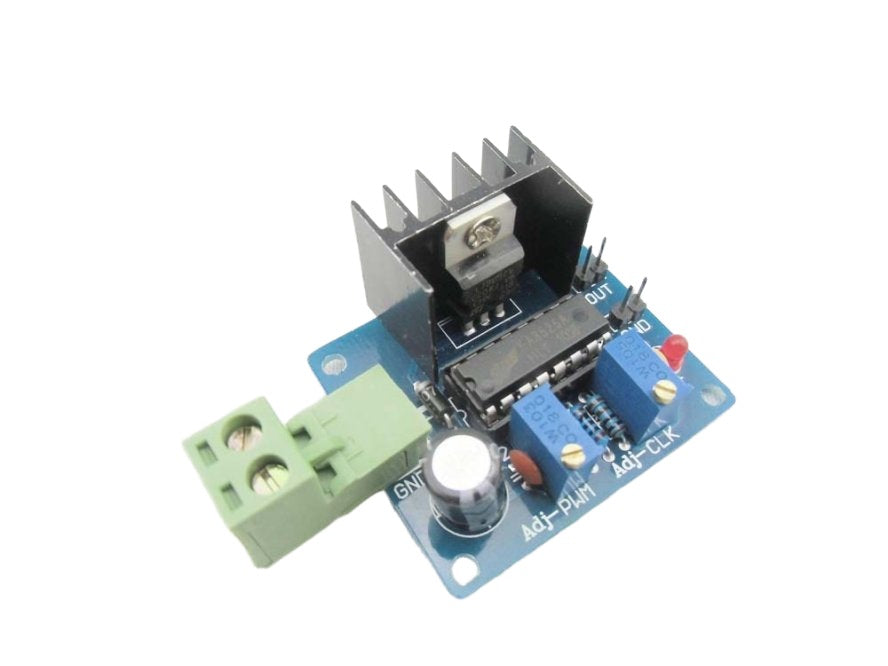

PWM Frequency And Duty Adjustable Module- SG3525

This PWM Frequency and Duty Adjustable Module is based on the PWM controller SG3525, it offer improved performance and lower external parts count when implemented for controlling all types of switching power supplier. This module can be used to drive IGBT directly thus to control the motors.

SPECIFICATIONS

• Size: 55x 42x30mm

• Power supply: 8~12 VDC

• Max Output Current：200mA

• Output Voltage: 5V

• Frequency Range:100~10 kHz

• Duty Range: 0%~100%


QUICK LINKS

• SG3525 Datasheet
