Stepper Motor 42 x 42 x 23 mm 1.8 Degree Step Angle

Stepper motors are motors that technically do not rotate. They just move in steps. When paired with a good Stepper Motor Driver and a good code, you can make a stepper motor position accurately and precisely, and even turn around in a full 360.

This motor is a low-power NEMA 17 stepper motor. NEMA motors are motors that are specified by NEMA or the National Electrical Manufacturers Association. NEMA 17 motors are commonly used in 3D printers.

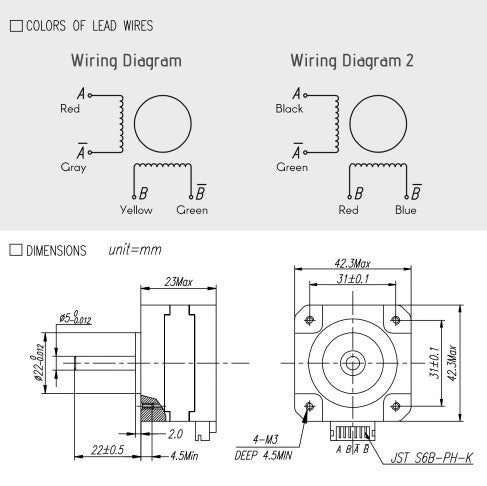

Specifications:

• Phase: 2 Phase
• Voltage: 12 V
• Current: 0.7 A / Phase
• Resistance: 4.0 ± 10% Ω / Phase
• Inductance: 3.2 ± 20% mH / Phase
• Holding Torque: 14 N. cm
• Insulation Class: B
• Step Angle: 1.8 ± 5% / Step
• Item Size: 42 * 42 * 23mm
• Item Weight: 126g / 4.5oz

Inclusions:

• 1 x Stepper Motor
• 1 x Connector
