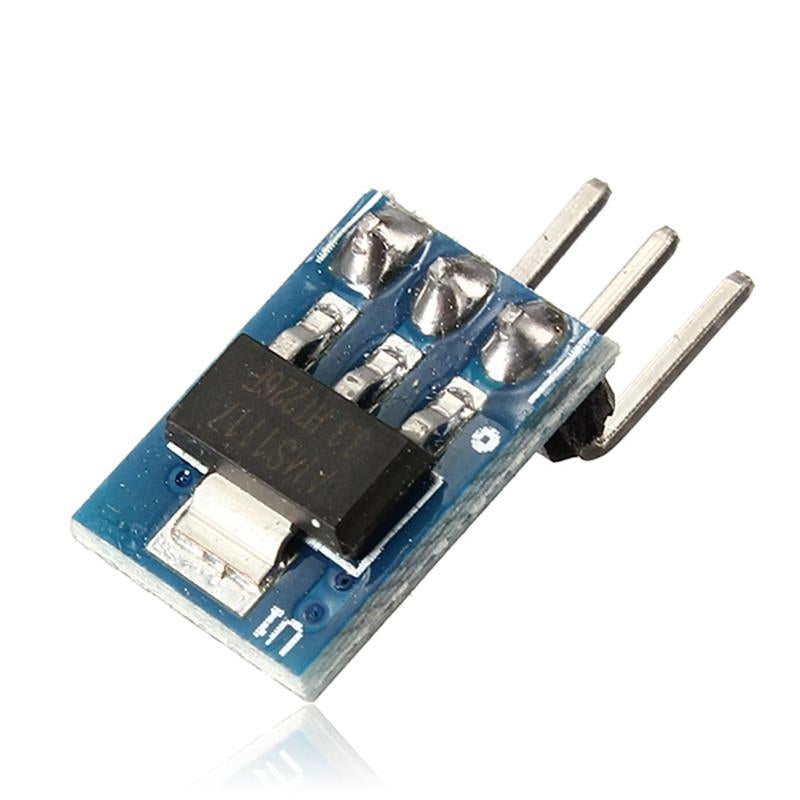

Power Module 3.3V Regulator AMS1117

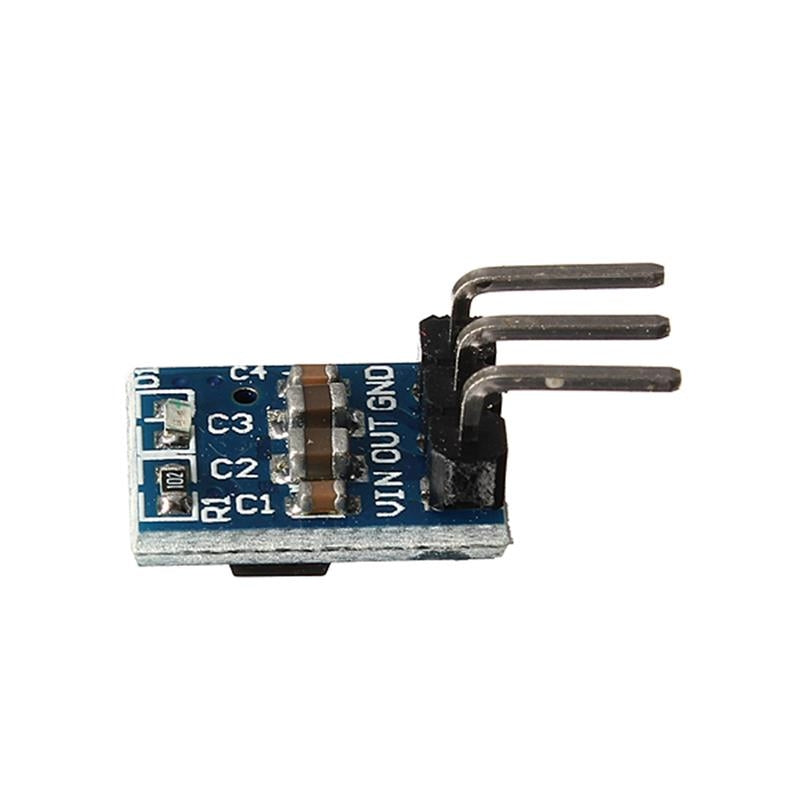

This power supply module is based on the AMS1117 3.3V regulator. It is capable of regulating a wide range of input voltage (4.0 to 12V) down to a fixed 3.3V output at up to 1A (Vin = 4.5V). Standard 0.1" header pins provide a means of connecting to its input and output terminals. These header pins have also been conveniently placed so that the module can be inserted face down into standard 0.1" pitch breadboard such as our 400 point and 830 point breadboards. An on-board LED gives visual indication of when the module is powered.

• Output Voltage: 3.3V
• Max output current: 1A @ 4.5V input
• Max input voltage: 12V
• Module size: 25.5mm x 11.5mm
